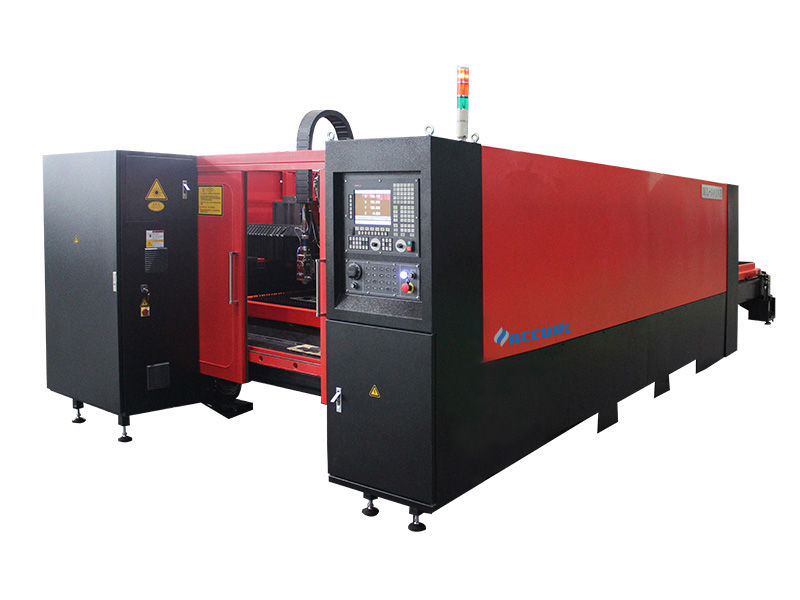

1000w 2000w 3000w cnc metal cutting machine fiber laser cutter 3000*1500mm

Fiber laser cutting machine Introduction

---

1000W-3000W Fiber laser cutting machine with working area 3000mm*1500mm mianly used for laser cutting on metal sheets and pipes with high precision.

Fiber Laser Cutting Machine Features

---

1.Adopts laser CNC system, ensure high precision, high efficiency under high running speed.
2.Imported laser cutting head, Non-contact capacitance sensor, strong security measures, high stability.
3.Provide auxiliary gas auto changing system (pressure-air, nitrogen, oxygen) for processing different type of materials
4.Cutting bed equipped gathering unit for recollecting and processing metal powder.
5.Advanced programming jacking software (including material management,cutting optimization functions), profound performance for punching, sharp point processing, sophisticated laser cutting processing database, operator only need to match the cutting parameters according to the materials which makes the operation smarter and easier.
6.Optimized optical lens, special designed nozzle and sensing technology, ensure the cutting process more smoothly and steadily.
7.Adopts IPG Germany fiber laser source.

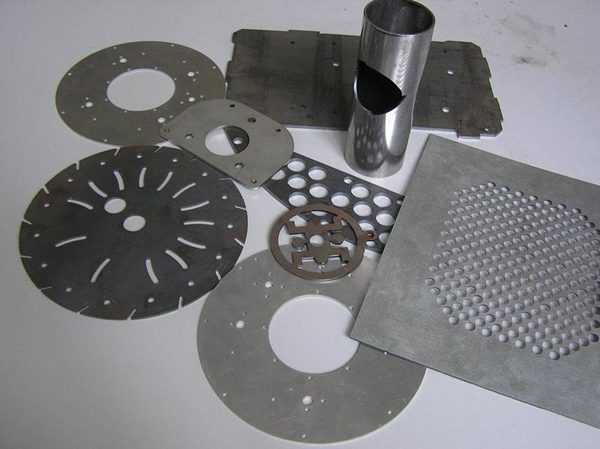

Fiber laser Cutting Machine Sample

---

Basic Info

---

Laser Technology: Laser Control Fault Cutting
Weight: 5ton
Waranty: 2years
Driving Way: Imported Servo Motor
Cutting Area: 1500*3000mm/1500*4000mm
Certification: Ce, SGS, FDA
Graphic Format: Ai, BMP, Dst, Dwg, Dxf, Dxp. Las, Plt
Cutting Speed: 0-60m/Min
Minimum Line Width: 0.15mm
Laser Source: 500W/1000W/2000W Ipg Laser Generator(Optional)
After-Sales Service: Engineers Available to Service Overseas
Transport Package: Packaged by Plywood
Specification: 4500*2000*1800mm
HS Code: 8456110090

Total weight		Tons	10
Total Electrical Power Consumption		Kw	26.5
Laser Type			CW fiber laser
Laser Wavelength		nm	1070
Resonator Power		w	1000	1500	2000	3000
Fiber Core diameter		um	100
Maximum Cutting	Mild steel	mm	10	14	18	20
Thickness	Stainless steel	mm	6	7	8	10
	Aluminum	mm	3	4	5	6
Net Cutting Diameter		mm	1500*3000
X.Y Axis Drive system			Rack and Pinion
Z Axis Drive System			Ball screw
Z Axis stroke		mm	130/230
Maximum Simulation X,Y Axis Speed(Idle speed)		M/min	150
Maximum Acceleration X,Y Axis Speed		G	1.5G
Position Accuracy		mm/M	0.02
Repeatablity Accuracy		mm/M	0.03
Cooling Style			water
Bearing Weight		kg	1000
Assistant Gas			Oxygen,Nitrogen, Compressor Air
Dimension		MM	8600*2800*2000mm
Continuous Working Time		Hrs	24
