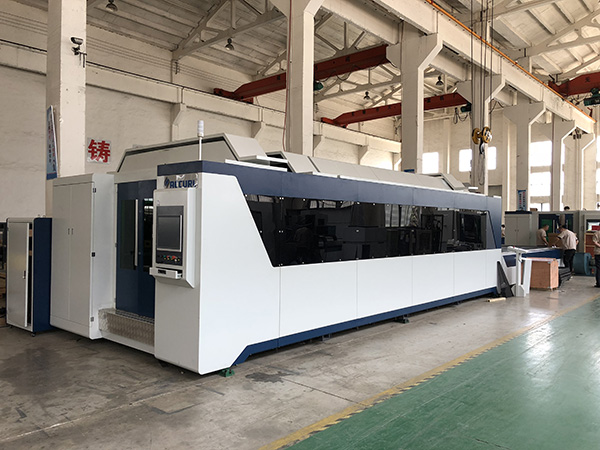

1500mmx3000mm fiber laser cutting machine with 500w,700w,1000w laser source

Instructions of 1530 fiber cutting machine 500w: High performance.fiber transmission can make sure the same quality cutting effect in every point of the material. High efficiency,fast cutting speed.photoelectric conversion rate about 35%. Low gas consumption.it has the cutting technology...

Instructions of 1530 fiber cutting machine 500w:

---

♦ High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.
♦ High efficiency,fast cutting speed.photoelectric conversion rate about 35%.
♦ Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting .
♦ Low power consumption .environment -friendly and energy -saving,reduce 20%-30% power compared with co2 cutting machine.
♦ Maintenance-free ,fiber transmission without reflection lens,can save time in light path adjustment .
♦ fiber exerts its features better in thin metal sheet cutting.

Features of fiber laser cutting machine:

---

♦ Stability and reliability of light path system and control system.
♦ Imported original fiber lasers,high and stable,lifespan is over 100000 hours.
♦ Higher cutting quality and efficiency,cutting speed is up to 60 m/min.
♦ High performance Germany reducer,gear and rack;Japanese guide and ball screw.

Technical Specification

---

High quality laser tube: IPG500W
Untouched following system
Yaskawa servo system
Imported ball screw and linear guide rail driving system
Auto partitioned exhausted system
Industrial chiller
Off-computer control system (Supported files: DXF,PLT,AI)
Working area:1500mmX3000mm
Dimension4100X2100mmX1900mm
Positioning accuracy:±0.05mm/m
Positioning speed:20m/min
Weight:3000kg
Power supply:220V±10%/20A

Capability
stainless steel
carbon steel
Galvanized sheet
Speed

Material	m/min
carbon steel 1mm	8
carbon steel 2mm	4.2
carbon steel 3mm	2.1
carbon steel 4mm	1.2
stainless steel 1mm	7.2
stainless steel 1.5mm	3
stainless steel 2mm	1.8
galvanized sheet0.8mm	5
galvanized sheet1.2mm	2.6

Technology parameter

Model	JCUT 1530 Fiber 300w
Working Area	1500X3000mm
Laser Type	IPG Fiber laser generator
Laser Power	300w
Cutting Thickness	1-6mm carbon steel
Cutting Speed	0-15m/min
Laser Wavelength	1060 nm
Positioning Accuracy	= ±0.02mm/m
Re-positioning Accuracy	=±0.02mm/m
Max Cutting Speed	0-15m/min(depending on material and thickness)
Power Supply Rated Voltage	3-phase 380V/50Hz
X-axis Stroke	1500mm
Y-axis Stroke	3000mm
Z-axis Stroke	120mm
Working Table	Rack working platform
Control System	Beckhoff control system
Location System	Red dot indicator
Water Cooling System	Constant temperature water chiller
Machine Weight	2000-8000kg
Machine Dimension	1800x3300x1600mm
Remark	Automatic exchange worktable, cover(option)

Our Service

---

* One year warranty for machine. English technical door.

service

* English manual and Video CD for machine using and maintenance.We offer free training in our factory, welcome to visit and learn more about our machines.

Free accessories: Software, manual, book, cd videos, PCI control

Before sale:

We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;

During sale:

We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;

After sale:

We would provide English Version working manual.

If you have any questions during using and maintaining, our engineers who could speak very good english would answer you online or by calls.

Machine warranty is one year. So if your machine has any unintentional damages, we would provide parts for free.

If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.

Could be remote control if needed.

Quick Details

---

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Rubber, Stone, Wood
Cutting Thickness: Materials
Cutting Area: 1500*3000mm
Cutting Speed: 0-60000mm/min
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: DSP
Graphic Format Supported: AI, DXF, PLT
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
High quality laser tube: IPG500W
Untouched following system: Yaskawa servo system
Working area: 1500mmX3000mm
Positioning accuracy: ±0.05mm/m
Positioning speed: 20m/min
Laser power: 80W
Product name: Fiber Laser Metal Cutting Machine
Keyword: Co2 Laser Cuting Machine
Function: Cutting Metal Materials
Laser tube: Sealed CO2 Glass Tube

Tags: acrylic laser cutting machine
