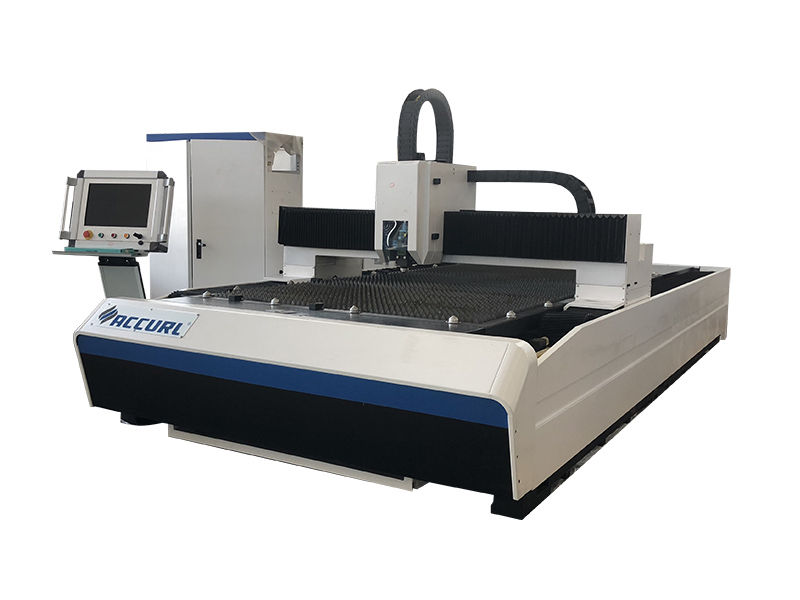

Product Description
This machine adopting high quality fiber laser and high precision WIRON square rail
drivre by helical gear.Controlled by advanced automatiic numerical system.This high
technology machine is a combination of laser cutting and automatic CNC machine.
Such perfect combination guarantee its high speed,precision,efficient and low cost .
So it is a preferred cutting machinefor batch processing of metal material.
Technical Parameters
Model | HN SERIES | ||||
Laser Type | Fiber Laser | ||||
Laser Wavelength | 1060nm | ||||
Laser Maximum Power | 500W | 1000W | 2000W | 3000W | 4000W |
Max. Cutting thickness | ≤8mm | ≤12mm | ≤16mm | ≤18mm | ≤20mm |
Total Power Consumption | <14KW | <18KW | <22KW | <26KW | <30KW |
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||
X, Y, Z Axis Orientation Precision | ≤±0.05mm/m | ||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||
Min line width | ≤0.15mm | ||||
Maximum Empty Running Speed | 100m/min | ||||
Driving way | Imported servo motor | ||||
Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw | ||||
Cooling System | Water Cooling | ||||
Continuous working time | 24 Hours | ||||
Power requirements | 380V/3 Phases /50Hz or 60Hz | ||||
Packing size (L*W*H) | 4500x2300x1800mm |
Features
1.Three "H" and one "L":High speed,High precision,High endurance and Low cost.
2.Easy to operate.And fiber transmission saves the complex laser path.
3.Equipped with automatic discharging system,which saves processing time and cost of
plate.Utilization rate of plate can reach to 95%.
4.Open worktable ,simple operation and small space occupation.
5.HIgh performance cast aluminum guide rail,after finite element analysis,realize highly
accelerated speed circular cutting.
6.High-rigidity heavy chassis,reducing the vibration generated during high-speed cutting greatly.
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material:Metal
Cutting Thickness: Materials
Cutting Area:1500*3000mm
Cutting Speed: 0-40000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: DXF, DXP
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Certification: CE, ISO
After-sales Service Provided:Engineers available to service machinery overseas
Product name: Fiber Laser Tube Cutting Machine Price
Function: Cutting Metal Materials
Type: Fiber Laser Cutting
Max moving speed: 100m/min
Color: Required
Lubrication system: Full-automatic
Maximum accelerated speed: 0.6G
Power supply: 380V/50HZ
Limits of pipe: Round tube:20-120mm Square tube:20-80mm
The length of rotary: 6000mm/min
