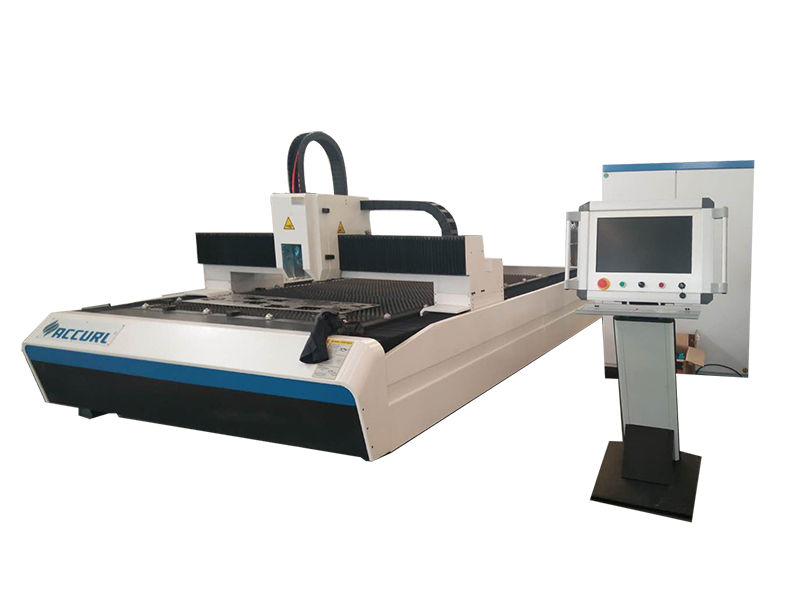

Fiber laser cutting machine Features
Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applicable Industries
Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Advantages of Laser Cutting Machine
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Technical Data
Laser Power | 200W/300W |
Laser Source | World Famous Germany IPG or Raycus Fiber laser source |
Laser Type | Imported Fiber Laser |
Laser Technology | Germany Technology |
XYZ Working area | 1500*3000 mm*150mm |
Max. Cutting Thickness (Carbon Steel) | 3 MM |
Max. Cutting Speed | 5-14 Meters / Min (up to materials) |
Laser wavelength | 1070nm |
Minimum line width | ≤0.1mm |
Location precision | ≤±0.05mm |
Re-location precision | ±0.02mm |
Max. moving speed | 100m/min |
Supporting Format | PLT, DXF, BMP, AI |
Power demand | 380V/50Hz |
Cooling Way | Water Cooling |
Worktable max. load | 1000KGS |
Transmission Method | Ball Screw Transmission |
Table-driven system | Japanese Imported Panasonic Servo Motor & Driving System |
Focus Method | Following and Automatic Adjust Focus |
Control Method | Offline Movement Control |
Control software | Perfect Laser Professional Laser Cutting Software |
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal, Stainless Steel, Carbon Steel
Cutting Thickness: 3-4 m (carbon steel)
Cutting Area: 1500*3000mm
Cutting Speed: 60m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Perfect Laser professional laser cutting software
Graphic Format Supported: AI, DXF, PLT
Place of Origin: Auhui China (Mainland)
Brand Name: ACCURL
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
laser power: 200/300/500/1000/2000W for fiber laser cutting machine
location precision: ±0.05 mm
cooling system: water cooling for fiber laser cutting machine
condition: new
function: metal cutting
laser type: fiber laser
Max Moving Speed:: 100m/min
Working Voltage:: 380V/50Hz for fiber laser cutting machine
Transmission Method:: Ball Screw/Gear Rack Transmission
Worktable Max Load: 1000kgs
