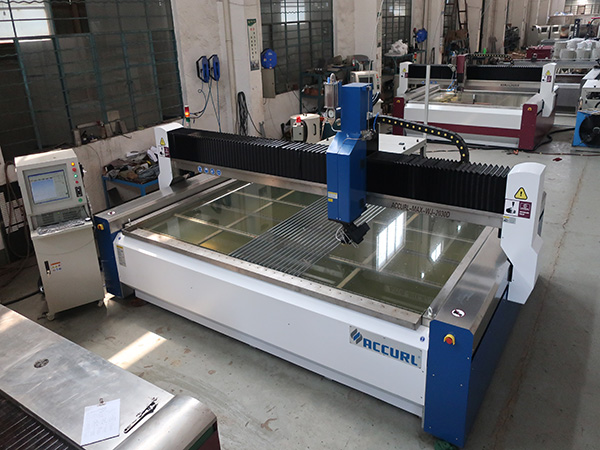

3020 cnc gantry waterjet cutting machine with direct drive pump

table	model		1313	2015	3020	4020	6020	customized size
	structure	gantry water cutting platform/cantilever series cutting platform
	travel	X Axis	1300mm	2000mm	3000mm	4000mm	6000mm
		Y Axis	1300mm	1500mm	2000mm	2000mm	2000mm
	speed	Max.move speed (x axis and y axis)	6000mm/min
		Max.move speed (z axis)	1000mm/min
	Accuracy	Positing Accuracy	0.127mm
		Repeat Accuracy	±0.076mm
	Water tank maximum Loading Capacity	300Kg/m2
Cutting head	3 axis / 5 axis Movement : Linear motion/Rotary motion
cnc controller	15 inch LCD montior Support DXF and NC code file Software: Windows 7 Resistance of the shoch and electro-magntic
	the key function Forward & Backward processing function Even pace control function Small arcs speed auto processing function Circle processing function
	Partial and smooth processing modes
aabrasive feeder	Max. inlet air pressure : 0.2-0.4 Mpa Min. inlet air flow:0.028m3/min Abrasive capacity:170 L
	features Air valve to prevent jams and breakages Auto control with CNC auxiliary function Self sealing Slightly adjust the FLOW
intensifier pump	Reted power : 50HP (37 KW) Max.pressure : 60000psi (4137 bar) Control voltage and cuttent : 24DC,10AMPS Ambient temperature : 5-40 ℃ Fuel tank capacity :114L Cooling flow : 11.4L/MIN Attenuation : 1L Long : 1473 MM Width : 1205 MM High : 1056MM
direct drive pump	Reted power : 30HP (22KW) Output pressure : 55000psi Max.pressure : 60000psi (4137 bar) Air: 80-120psi Operating voltage and power:210-240/360-420V 50HZ Ambient temperature : 5-40 ℃ Min.inlet water : 60psi 1 gallon/min. Pump speed: 720 rmp Fuel tank capacity : 2.6 L Weight :700kg

1.After sale service
Professional service team and 24 hours online to solve your problems, give quick and professional guide
2.Delivery time
The goods will be shipped 3-5days after payment ,and the delivery time is at 15-20days.
3.Easy operation
Professional water cutting machine software, no need G code program, you only need to know the use of controller
4.The material what is waterjet machine cutting?
There are a variety of materials that our cutting machines can cut, such as metal, stone, glass, tiles and so on
5.High quality
Which can guarantee the stable working and long life use time.if there is no problem,it will work for 1 years,about 2000h

Quick Details

---

Condition: New
Place of Origin: Anhui, China (Mainland)
Voltage:220V/380V
Rated Power: 37kw
Dimension(L*W*H):3100mm*2100mm
Weight:4000kg
Certification: CE Certificate
Warranty: One Year
After-sales Service Provided:Engineers available to service machinery overseas
Application: Industrial , Military,parquet decoration , ect
Name: CNC water jet cutting machine
Type: 3 axis /5 axis
Control system:weihong software
Color: White ,support customized
Cutting material: Granite ,Glass, Stone, Steel, Rubber ect
supply: Factory direct supply
Service: 7days (24h)
Cutting thickness: 0-200mm
Cutting speed: 0-6000mm/min
