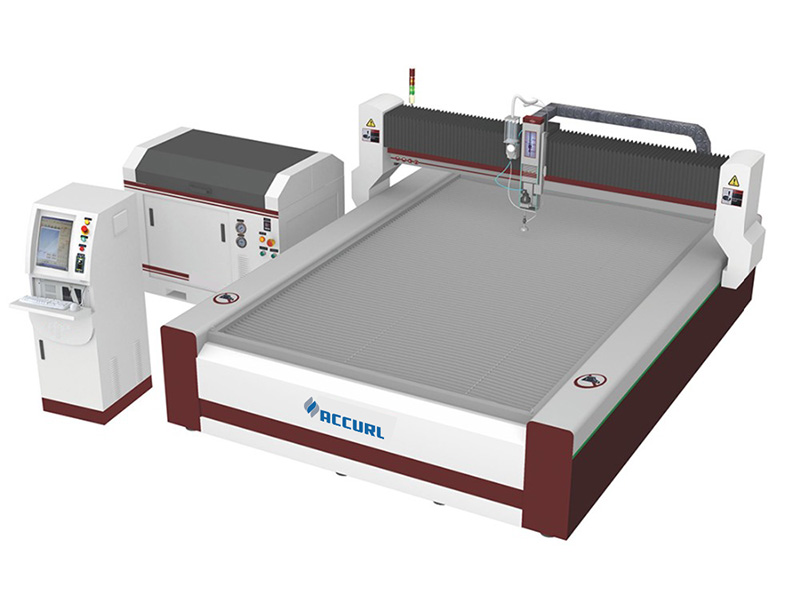

420MPA 3-Axis Pure Waterjet Cutting machine for foam , leather , plastic film

1.The beam is an extrusion molding piece of aluminium alloy.lightweight, High-rigid, stable running and faster speed.

2.Integral design,which has advantages of good rigidity and stability, uniform stress, stable running and precision.

3.Special shield design,waterproof and dust proof.

4.Bearing platform gratings adopts S-type, nets and straight line design,Which can be chose according to 5.different requirements , has strong practicability and can be durable in use.

6.There are adusting nuts on the bearing platform to regulate the flatness.

7.Imported servo driver, accurate localization, stable running, to ensure machining precision.

8.Safety protection:overtravel range limit protect function.

9.Taiwan TBI Lead Screw(imported) guarantees high precision of parts processing, non-clearance movement.

10The Taiwan Silver Guide Rail guarantees high precision of parts processing,smooth transmission, and durable in use.

11. Large split type gantry adopts separate rack, helical pinion and rack have the advantages of good rigidity, high precision, more stable running, unlimited length, high cutting efficiency, and no effect on precision and cutting quality.

Cantilever type NC cutting platform can install and discharge workpieces from three directions, which overcome the gantry's drawbacks, such as , loading material can only from both sides and work pieces' size are limited .it is practical for cantilever machine to place materials larger than the platform.
The running mechanism detached from cutting platform and have no effect on each other, the space of up-down material is larger, especially suitable for the Irregular material size and the situation which means of up-down materials is not fixed.

Cutting platform technical parameters

Power source:                     220/380/415V AC,50/60HZ
X-Axis Max.speed:               6000mm/min
Y-Axis Max.speed:               6000mm/min
Z-Axis Max.speed:               1000mm/min
Control precision:                ±0.02mm
Cut precision:                      ±0.1~±0.2  subject to speed and thickness of materials.
Resetting precision:             ±0.02
Drive system                       JAPANESE YASKAWA

TAIWAN DONG YUAN AC servo system.

Cantilever system model

Model.X-axis route mmY-axis route mmZ-axis route mm
HSQ0505U500500150-200
HSQ1010U10001000150-200
HSQ1210U10001200150-200
HSQ1313U13001300150-200
HSQ2015U15002000150-200
HSQ2515U15002500150-200
HSQ2520U20002500150-200
HSQ3015U15003000150-200
HSQ3018U18003000150-200
HSQ4015U15004000150-200
HSQ4018U18004000150-200
HSQ4020U20004000150-200
HSQ5020U20005000150-200
HSQ6020U20006000150-200
HSQ8020U20008000150-200
HSQ9020U20009000150-200
HSQ10020U300010000150-200

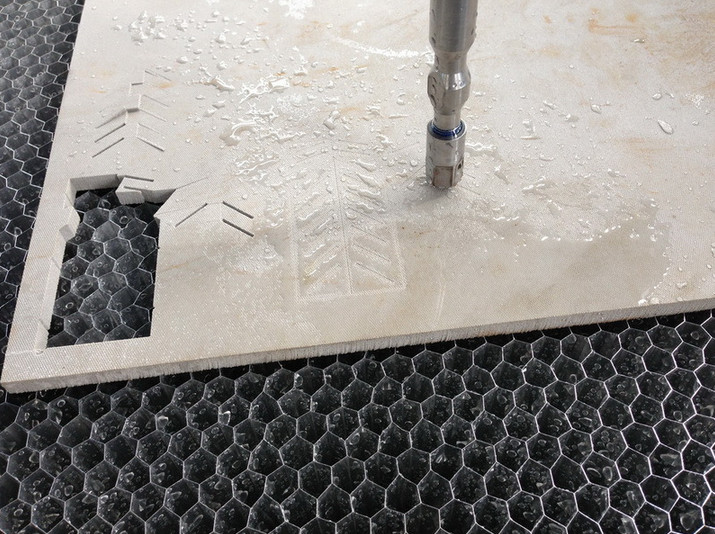

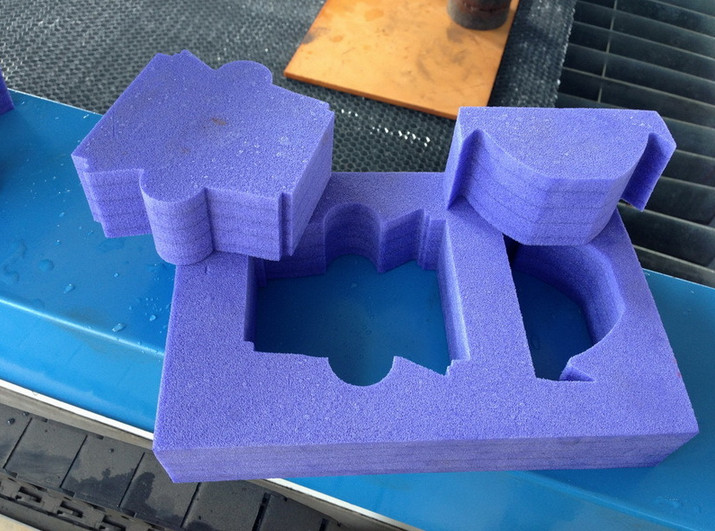

Applications:

CNC water jet cutting machine can flexibly process (cut off, engrave, make hole, drill) virtually all materials with consistent quality. It has found great application in metal, glass, stone, chemical & petroleum, automotive, advertisement and other industries.

Price & Delivery:

FOB Shanghai: price range 27,000-100,000 USD, which is subject to our final confirmation.
MOQ: 1 set
Term of Payment: T/T 30% deposit; T/T70% against B/L copy.
Term of Shipment: by sea with 20 ft standard container
Brand Name: ACCURL
Warranty: one year
Technician Support: Free field training and installation is available. Please contact us for details.

Basic Info

Model NO.: HSQ2515U
Process Usage: Nonmetal Cutting
Control Method: Closed-Loop Control
Performance Classification: High-End CNC Machine Tools
Condition: New
Transport Package: Exported Standard Package
Origin: Anhui China
Application: Plastic, Leather, Wood
Movement Method: Contour Control
Numerical Control: CNC/MNC
Certification: CE, ISO 9001
Trademark: ACCURL
Specification: CE, ISO, SGS
HS Code: 84642010
