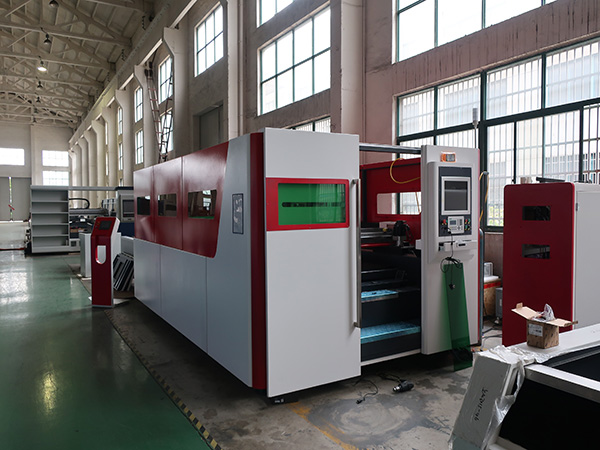

4mm stainless steel automatic iron sheet fiber laser metal cutting machine for sale

Application Industries:

---

ACCURL stainless steel automatic iron sheet fiber laser metal cutting machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Fiber Laser Cutting Equipment is suitable for metal cutting,such as Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Technical Parameter

---

Laser Power	500W 700W 1000W 2000W 3000W	500W 700W 1000W 2000W 3000W
Laser Type	Imported Fiber Laser
Laser Technology	Germany Technology
Working area	3000*1500 mm
X axis Stroke	3050 mm
Y axis Stroke	1500 mm
Z axis Stroke	150 mm
Transmission way	Imported ball screw
Table-driven system	Japanese Panasonic Servo motor & Driver
Focus Method	Dynamic Following and Automatic Adjust Focus
Location precision	≤±0.05 mm
Re-location precision	±0.02 mm
Max. moving speed	100m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Supporting Format	PLT, DXF, BMP, AI
Power demand	380V/50HZ
Worktable max. load	1000 Kg
Dimension (L*W*H)	4000mmX3000mmX2000mm
Control Method	offline movement Control
Control software	Wintek Laser Professional Laser Cutting Software

Details of stainless steel automatic iron sheet fiber laser metal cutting machine:

1. Fiber Laser source (IPG/Raycus/Nlight)

Raycus 750W laser source

The photoelectric conversion more than 30%;

Working environment: 10-40 degree

Device with air-condition to keep it in normal temperature.

Lifetime:100000 hours

2. Cypcut control system

With Cypcut Control system and software with English language, applicable insert files with DXF. Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting same products for save time. With Nesting function, autonomic compose type for saving materials by saving spaces.

3. Driving system

Four sets of Japanese Panasonic motor and drivers for cnc sheet metal fiber laser cutting machine for steel with cheap price.

Match-able with the transmission system, improve cutting speed and precision.

4. Gear Transmission

Gear- rack transmission system which with Taiwan Hiwin brand.

X and Y axis Moving speed can be max 80m/min.

5. Cutting Head for cnc sheet metal fiber laser cutting machine for steel with cheap price

Super good brand or Imported Laser Cutting Head with dynamic focus function.
High follower sensing cutting head using the principle of the capacitive sensor monitoring, provides a stable and fast cutting height automatically adjusting function.

6. Cooling system

When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.

Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.

Water in chiller should be pure water.

Advantages of Wintekstainless steel automatic iron sheet fiber laser metal cutting machine:

---

High cutting speed: the cutting speed of fiber laser metal cutting machine is 2-3 times than other laser cutting machine.
Easy operations: optical fiber transmission makes it no need for adjustment of optical path. Flexible, simple and convenient for instant cut.
Excellent laser beam quality: smaller focused laser spot for super flexible light guide effect, more efficient and better processing quality with smaller deformation;
Cost-effective: photoelectric conversion rate is up to 25-30%. Electric power consumption of this fiber laser cutting machine is only about 20%-30% of traditional Co2 laser cutting machine and sheet cutting speed is more than three times the YAG.
Low maintenance cost: high rigidity of the machine bed, advanced Germany technology fiber laser source and 100,000 hours' service life for critical components ensure low maintenance cost.
