Product Application
Applied in high precision sheet metal industries like aerospace technology,elevator manufacturing,ship manufacturing,metal cutting,kitchen furniture,auto parts,cooling and venlilation ducts,chassis cabinets,kitchen cabinets,machinery manufacturing and advertising decoration, Etc..
materials can be applied: Stainless steel,Carbon steel,Manganese steel,Galvanized sheet,all kinds of alloy plates,precios metals and other materials.
SPECIFICATIONS OF FIBER LASER CUTTING MACHINE | |||
Laser Wavelength | 1080nm | Woring Area | 1300*2500mm 1500*3000mm |
Cutting Thickness | 0-3mm stainless steel 0-6mm iron sheet | Laser output Power | 500W |
Machine Drive Mode | imported ball screw optional:rack gear and pinion | X/Y positioning accuracy | 0.01mm |
X/Y repeat positioning accuracy | 0.01mm | Maximum Cutting Speed | 1-16m |
Minimum cutting line width | 0.02mm | machine size | 4*2.5*1.5m |
Machine weight | 3500kg |
Working Conditions
NO. | Item | Contents | Requirements |
1 | Power Supply | Three-Phase | 380V 50hz/60hz |
2 | Water Supply | Cooling water | Distilled Water |
3 | Gas | O2 ( 1mpa) N2 (2.5mpa) | |
4 | Air | Working Pressure 1.25MPA | |
Flow Rate 1.3m3/Min | |||
5 | Working Condition | Temperature | -5~45 Degree |
Humidity | Less than 70% | ||
Foundation | Field level and no strong Vibrations surrounded | ||
6 | Plate | Rustless |
Main Features
1) Steel-Welded structure bed,making process after eliminated by annealing,a better way to remove the stress caused by welding and processing
2) Fiber laser cutting machine with high precision servo screw drive system,equipped with Taiwan imported ball screw,ensuring the operation accuracy and stability
3) Fiber laser cutting machine,adopting RAYCUS UK import system,fine light,long service life,short maintenance cycle,and low maintenance cost.
4) Fiber laser cutting machine,adopt high sensitive laser cutting machine system and fiber control system,ensuring of a stable and correct processiong
Functions
NO. | Functions | Description |
1 | Follow-Up Function | metal surface height auto tracking control |
2 | Power Supply Control | laser power slope control |
3 | Rollback Function | reverses NC program |
4 | Breakpoint return Function | Re-production after malfunction |
5 | Angle turning function | Angle cutting parameter setting |
6 | Multi piercing function | Pulse,blast,progressive,fast |
7 | Lead function | Lead function setting |
8 | Auto edge-finding | Auto finding workpeice coordinate system |
9 | ping-pong function | increase cutting efficiency |
10 | common line cutting | increase cutting efficiency |
11 | marking function | specialized making device |
Cutting Parameter
Laser Power (W) | Material | Thickness(mm) | Speed (m/min.) | cutting gas |
1000W | Stainless steel | 0.5 | 12-30 | N2 |
1 | 9-18 | N2 | ||
2 | 7-9 | N2 | ||
3 | 4-5 | N2 | ||
4 | 2-2.5 | N2 | ||
5 | 0.8-1.2 | N2 | ||
6 | 0.6-0.8 | N2 | ||
1000w | Carbon steel | 1 | 7-10 | O2 |
2 | 4-5 | O2 | ||
3 | 2-3 | O2 | ||
4 | 1.5-2.8 | O2 |
Key parts List
No. | Name | Brand | Qty(set) |
1 | Fiber Laser source | Raycus | 1 |
2 | Laser cutting head | Raytools/Sworthing | 1 |
3 | machine body | 1 | |
4 | Cross beam | 1 | |
5 | Cutting Table | 1 | |
6 | Gear Box | APEX/SHIMPO | 1 |
7 | X axis gear and rack | YYC | 1 |
8 | Y axis gear and rack | YYC | 1 |
9 | Z axis screw rod | PMI | 1 |
10 | Linear guide rail | PMI | 1 |
11 | pnuematic system | SMC | 1 |
12 | Eletric Components | SCHNEIDER | 1 |
13 | CNC controller | CYPCUT | 1 |
14 | AC servo motor and driver | YASKAWA | 1 |
15 | CAD/CAM next software | CYPCUT | 1 |
16 | Electrical Cabinet | 1 | |
17 | Fume Exhausting | 1 | |
18 | Scrap Bucket | 1 |
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-8mm, 0-10mm
Cutting Area: 1300*2500mm/1500*3000mm
Cutting Speed: 0-16m, 0-16m
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas

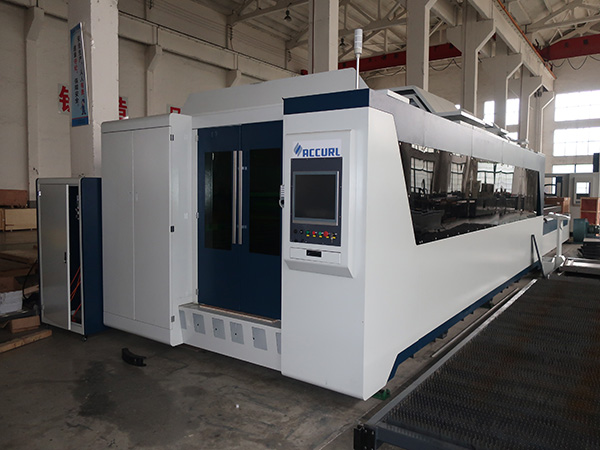

Product name: 500W/1000W Fiber Laser Cutting Machine
Keyword: Fiber Laser cutting machine
Laser type: Fiber Laser
Working area: 1300mmX2500mm/1500*3000mm
Function: metal cutting
Laser Power: 500W/1000W
Application material: all kinds of metal material
Cnc or not:yes
