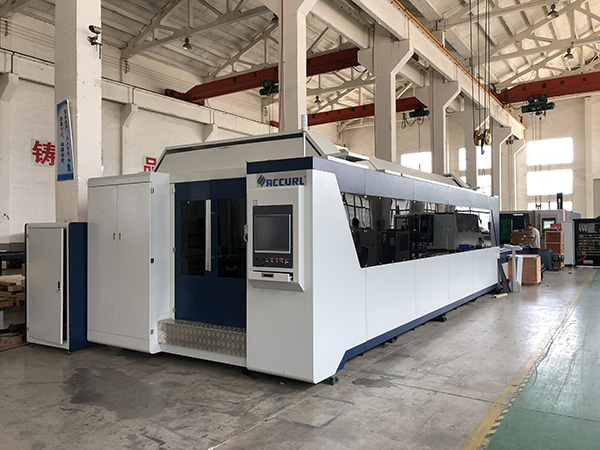

500w 1kw 2kw 3kw 12mm cnc sheet metal fiber laser cutting machine

12mm CNC Sheet Metal Laser Cutting Machine | Fiber Laser Cutting Machine Price 3KW 2KW 1KW 500W

Specifications

Laser Cutting Machine
1.high power
2.high accuracy and long life
3.manufacturer directly

Introduce of Laser Cutting Machine

We produce different types of Fiber, YAG, CO2, laser machines. Our products line includes laser cutting, laser marking, laser engraving machines.

Applicable to different materials like stainless steel, carbon steel, aluminum, brass, copper, galvanized sheets and more metal materials.

Technical of Laser Cutting Machine

Travel Method		stationary table , Gantry style
Moving system		Servo motor drive ball screw
Guide		linear guide
Control Method		X, Y,Z axis motorized controlled
Travel Amount	X-axis	1300mm 1300mm 1500mm
	Y-axis	900mm 2500mm 3048mm
	Z-axis	125mm
Acceleration Rate	X-axis	2500mm/s2
	Y-axis	2000mm/s2
Axis speed	X-axis	800mm/s = 48m/min
	Y-axis	600mm/s = 36m/min
Maximum Worksheet Loading Capacity		700kg
Machine weight		2100kg 2800kg 3000kg
Repeatability Positioning Accuracy		0.01mm
Drive Feed Method		position control / AC servo motor
Machine Table Height		900mm
Cutting bed		Blade support -Sawtooth metal strip bed
Focus type		Automatic following focus
Power Supply ( only for machine)		380V 50/60HZ
Power consumption		30KW
LASER OSCILLATOR
Laser Oscillation Method		Lamp pump YAG
Laser power		650W
Stability		±3%
Frequency		1-300HZ
Wavelength		1064nm
Single pulse energy		125J
Pulse width		0.3-10ms
Cooling mode		Close loop laser chiller cooling
CNC CONTROL UNIT
CNC Unit		Yaskawa AC servo motor
CNC Control Method		semi-close loop control
Control Functions		X, Y controlled (simultaneously controlled)
Input Method		USB, Ethernet, memory stick
Least Input Increment		0.002mm
Minimum Position detection Accuracy		0.002mm
Program Storage Capacity		128M flash memory in machine
Operating Modes		Windows xp support
SOFTWARE
Cutting software self-developed software
Nesting software Laser self-developed software
Support format DXF,DWG,PLT,AI,DST,GLD

Product Description of Laser Cutting Machine

High quality 600w yag Industry cnc Laser cut tool on sale FLDJ-YAG1325 is the best laser cutting tool to cut stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, galvanized iron, galvanized sheet,

aluminum, copper, brass, bronze, gold, silver, titanium plates, metal sheets, metal plates, metal tubes and pipes, etc.

so our cnc laser cutting machine suitable for cutting kinds of metal.FLDJ-YAG1325 cnc metal laser cutting equipment has the feature of compact layout, stable optical link, operation convenient and reliable performance.

In addition the laser cutting cutter machinery also laser wood cutting machine price has the following features:

1 Contracture compact, small floor area.

2 Stability and reliability for light path system and control system.

3 Humanizing design, convenient operation.

4 High performance price ratio, low operating cost.

5 High cutting efficiency and quality, no noisy. Cutting speed is 100 times larger than the EMD wire cut. Small heat influence area, cutting seam smooth and no deformation, post treatment is not needed.

6 High precision serve motor, lead screw and guide ways imported ensure the efficiency and accuracy, increasing the stability and reliability greatly.

7 Suit many varieties of small, middle batch and mass production.

Stainless steel, carbon steel, aluminum, copper, titanium plate, etc.

After sales

1.1.5 years quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: YAG
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Thickness: 0-20mm, 0.3-8mm
Cutting Area: 1300*2500mm
Cutting Speed: 0-150mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: PC control system
Graphic Format Supported: AI, PLT, DXF, BMP, DST, DXP, AI,PLT,DXF,BMP,DST,DWG,LAS,DXP
Certification: CE, ISO, FDA
After-sales Service Provided: Engineers available to service machinery overseas
Type:: Laser Cutting Machine
Use for:: metal and non-metal
Laser power:: 600w
Transmission:: Ball screw from Germany
Guide rail:: HIWIN linear square guide rail from Taiwan
Custom:: CNC laser retrofit
Warranty::1.5 years
Focus type: Automatic following focus
