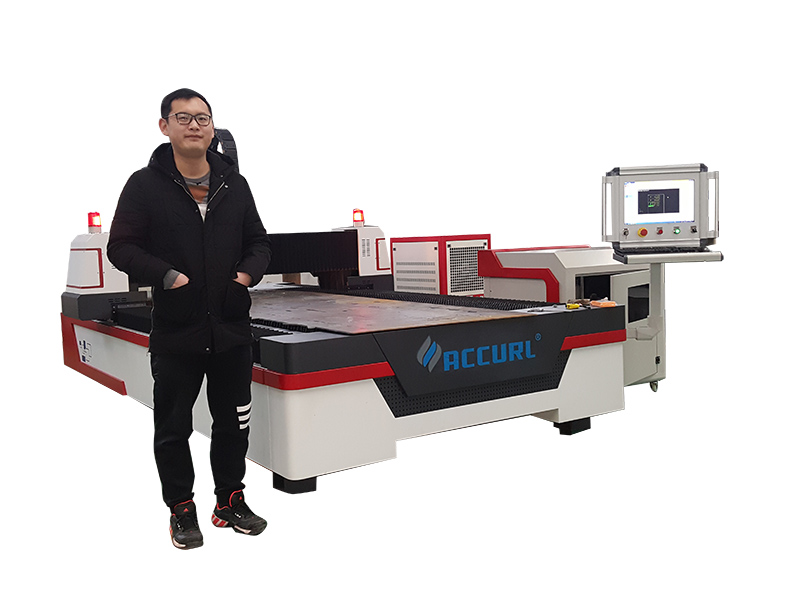

500W fiber laser cutting machine for metal sheet and tube

Product Description

---

Feature

1 Gantry type double driving CNC control system,high temperature quenched welded body with high strength,do deformation during long time working process
2 Wide working format for various metal plates cutting
3 There is no need of auxiliary gas,air is OK,fiber Optical path is easy to operate with low cost,no need to adjust optical path like others
4 The laser beam is fine,thus the cutting edge is delicate without burrs and deformation.Suitable for precise cutting for medical devices,superior quality products
5 With high centerilized laser energy,the output power is low with high conversion from electric to energy of motion.
6 Fast cutting speed 100times of wire cut with high working efficiency
7 High-precision linear guide rail and gear to cut precisely
8 Enable to process complicate cutting like curved surface ,the cost is 40% of a punching machine
9 Imported Germany IPG fiber laser generator, long working life can be 10W hours
10 Standard 500W laser generator, there are 300W-1000W laser generators for choice according to actual demands

parameter

---

Laser Power	500W	1000W
Laser Source	World Famous USA SPI / USA IPG Fiber laser source
Laser Type	Import Fiber Laser	Import Fiber Laser
Working Area	3000mm×1500mm	3000mm×1500mm
X axis Stroke	3000mm	3000mm
Y axis Stroke	1500mm	1500mm
Z axis Stroke	150mm	150mm
Cutting Thickness	0.2-5 mm	0.2-12 mm
(Carbon Steel)
Max. Cutting Speed	20-30 Meter / Min (Up to materials)
Transmission Method	Ball Screw Transmission	Ball Screw Transmission
Table-driven system	Japanese Famous Kawasaki	Japanese Famous Kawasaki
	servo motor & driver	servo motor & driver
Focus Method	Auto focusing	Auto focusing
Location precision	≤±0.05mm	≤±0.05mm
Re-location precision	±0.02mm	±0.02mm
Max. moving speed	100m/min	100m/min
Supporting Format	PLT, DXF, BMP, AI	PLT, DXF, BMP, AI
Power demand	380V/50Hz	380V/50Hz
Worktable max. load	750KGS	800KGS
Control Method	Offline Movement Control	Offline Movement Control
Control software	CypCut	CypCut

Brand list for component

---

Line#	Description	Brand	Origin	model number
1	Laser generator	IPG	Germany	YLR-500
2	Light guiding focusing system	CypCut	joint venture	Shanghai
3	Auto focus system	CypCut	joint venture	Shanghai
4	Water cooling system	Dong lu yang	SZ	PH-LW27-BLP
5	Red light pointer system	IPG	Germany	With laser generator
6	Machine body and control sytem	Taishun laser	Wuhan	Homemade working format 3015
7	Exhuast and extractor configuration	Daifu	shanghai	2*1.1KW
8	X-axis servo motor 1	Delta	Taiwan	EMCA-E21315CS
9	X-axis servo motor 2	Delta	Taiwan	EMCA-E21315CS
10	Y-axis servo motor	Delta	Taiwan	EMCA-E21315CS
11	Z-axis servo motor	PANASONIC	Japan	MHMD042G1V
12	planetary reducer	Apex	Taiwan
13	X-axis Helical gear rack	ATLANTA	Taiwan	2920105
14	Y-axis Helical gear rack	ATLANTA	Taiwan	2920105
15	X-axis linear guide	ABBA	Taiwan	BRH25
16	Y-axis linear guide	ABBA	Taiwan	BRH35
17	Z-axis	Beiguang	Beijing	MTS032
18	Control software	CypCut	joint venture

material cutting

---

Thickness    (mm)	material	Max cutting speed    (m/min)	Aux gas
1	Carbon steel	10	O2
		8	gas
2		3.8	O2
3		2
4		1.2
5		0.8
6		0.5
1	Stainless steel	8	air
		9	O2
2		2.5	air
		3	O2
3		1.8	O2

Basic Info
Laser Power: 300W/500W/1000W
Max.Marking Area: 3000*1500mm
Max.Cutting Speed: 18m/Min
Cutting Thickness: 0.2-5mm
Controlling System: Servo System
Position Accuracy: 0.05mm
Minn Line Width: <0.12mm
Whole Power: <11kw
Trademark: ACCURL
Transport Package: Wooden Box
Specification: CE SGS FDA, ISO, BV
Origin: Anhui,China
HS Code: 8456100090

---



Tags: metal tube laser cutting machine
