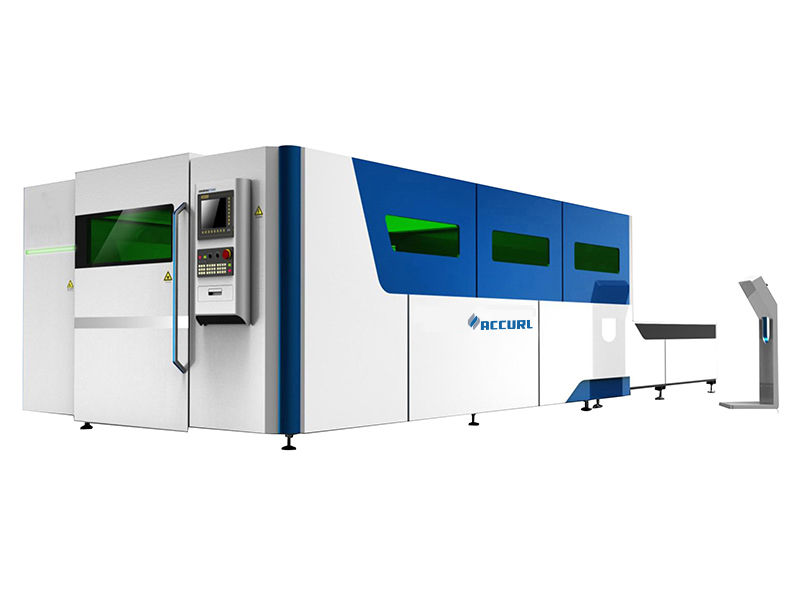

500w1000w 2000w 3000w fiber laser cutting machine price in usa

laser cutting machine usa

Fiber laser cutting machine features


♦The double rack and pinion driving system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.

♦ Standard collocation of 500W fiber laser generator and optional 500W 750w, 1000W 2000W IPG or Raycus or Nlight fiber laser generator ensures low operation and maintenance cost.

♦Open structure is easy and convenient for material uploading and unloading.Drawer collecting device makes receiving materials more convenient.

♦Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.

♦Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

♦Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Materials
Cutting Area: 1500*3000mm
Cutting Speed: 0-40000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Product name: XTLASER 500W1000W 2000W 3000W fiber laser cutting machine price
Laser power: 2000W
Keyword: Fiber Laser Cutting Machiens
Type: Laser Machining
Function: Cutting Metal Materials
Working area: 1500mmX3000mm
Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Power supply: 380V/50HZ
Driving system: Japan Yaskawa Servo Motor
Control system: CNC Prpfession Control System

Laser Type
Fiber laser
Laser Brand
IPG / Raycus
Laser Power
500W (750W / 1000W / 2000W optional)
Working area
1500mmX3000mm 1300x2500mm Optional
Working Table
Fixed Working Table
Control System
PMAC full-closed loop servo control
Driving Mode
Double gear rack driving
Idle/Processing Speed
72m/min / 36m/min
Positioning Accuracy
0.05mm
Protection System
Enclosure protection
Laser Head
Precitec / Laser Mech / XT Laser
Power Supply
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power
7KW~11KW
Floor Space
5.6mX3.2m (fixed table)
Standard Collocation
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus
Software
CutMax Laser Cutting Software or PA8000 software, Metal Nesting Software
Supported Format
PLT, DXF, BMP, AI, DST, DWG, etc.

1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to no maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.

Product Application


1.Sheet metal fabrication
2. Electrical cabinet
3. Elevator
4. Automotive parts
5. Aviation & aerospace
6. Lighting lamps
7. Metal carfts & decoration
8. Hardware tools
9. Advertising
10. Furniture
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural and forestry machinery

Fiber Laser Generator
YAG Lamp Pump Laser Generator
CO2 RF Metal Laser Tube
Power
500W/750W/1000W/2000W/3000W
500W/650W/850W
300W/500W
Advantages
Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance
Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment.
It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use.
Applicable Materials
All kinds of metal sheets and pipes
All kinds of metal sheets and pipes
All kinds of metal sheets and other nonmetal materials
Applicable Industry
Sheet metal, hardware, watches, metal art craft works, etc.
Sheet metal, kitchenware, metal letters and accessories & hardware, etc.
Sheet metal, advertising, furniture and models, etc.
