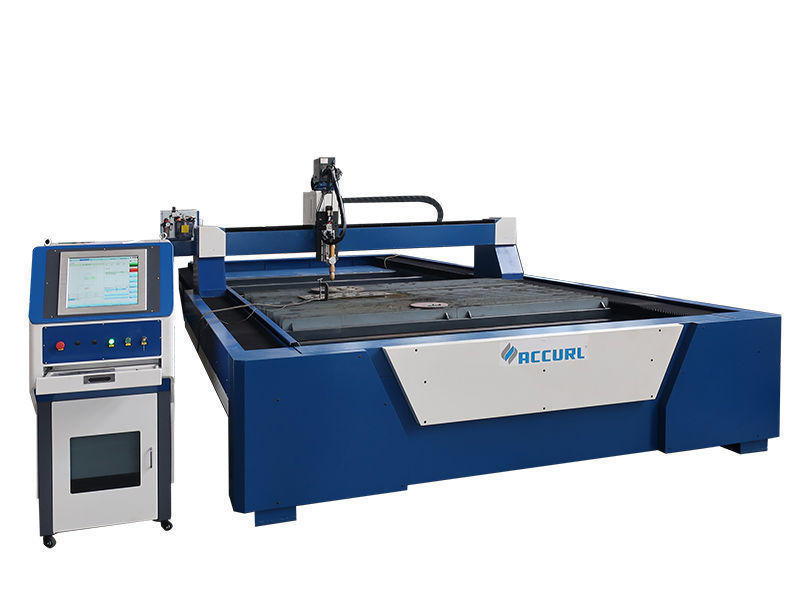

63/100a cnc plasma cutting machine manufacturer

plasma cutting machine manufacturer

63/100A cnc Plasma Cutting Machine manufacturer Features

1. 63/100A CNC plasma cutter machine adopts light-weight structural design, the structure has good rigidity, light weight and small motion inertia.

2.Gantry-type structure. Y axis adopts synchronous double-motor and driver, and X,Y,Z axises adopt linear guideways, stable transmission and high operational precision.

3.Mainly cut Three-dimensional LED advertising word, metal plates with groove characters and baseboards, and cutting accuracy lives up to excellent index

4.Small cutting holes, tidiness and no-residue phenomenon, avoids shaping process at second time.

5.Fast cutting speed, high precision and low cost.CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.

6.Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.
7.Plasma CNC Cutting Machine Huayuan 63/100A power source and burning torch are equipped with famous domestic brands. and they are manufactured by factories with multi-termed national patent technology

Technical parameter

Working Area: 1300*2500mm
Warranty: 12 Month
Cutting Speed: 8000mm/Min
Control System: Start Control System
Processing Materials: Iron, Aluminum, Stainess Steel
Plasma Power: 65-200A
Worktable: Blade Worktable
Cutting Thickness: 0.1mm-30mm
Input Voltage: 3-Phase 380V
Guide Rail: Taiwan Hiwin Liner Guide
Transport Package: Plywood Case
Specification: CE Standard
HS Code: 8456100090

Model Parameter cnc plasma cutter machine
Model DEK-1325P DEK-1530P DEK-2040P
Working size 1300*2500mm 1500*3000mm 2000*4000mm
Three axes Repeat positioning accuracy ±0.05mm
Process precision ±0.35mm
Transmission system X,Y Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack
Z the arc voltage control
Max. cutting speed 15000mm/min
Working voltage AC380/50HZ
Control system Beijing START plasma cutting system
Standard high sensitivity arc voltage device
Software support FASTCAM,AutoCAD,
Instruction format G code
Drive system Stepper motor (Optional Taiwan AC servo motor)

Plasma power

 Domestic Huayuan 63A-200A
Imported US Powermax 63A-200A
Power cutting ability Domestic Huayuan 0.5-30mm
US Powermax series 0.5-50mm
 63A , 0.3- 8mm cutting thickness
100A, 0.3-18mm cutting thickness
160A, 0.3-25mm cutting thickness
200A, 0.3-35mm cutting thickness
Working pressure 0.65-0.8Mpa

Applications

CNC Plasma Cutter machines are widely used for cutting Stainless Steel, Carbon steel, structure steel, Aluminum, Iron, Galvanized sheet, Titanium plate, M.S. plate for signs, architectural components, fabrication units etc.

Application Industry:Sheet metal, kitchenware, components, decorations industry.

FAQ

1.How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

2. if the machine problems, how do you provide service?
First of all, we will immediately begin to give you solve the problem, if need to staff in the past to help solve, our stone carving machine after-sales staff will arrive within 3 working days (according to the distance).

3.how do you do what stone carving tools, how to get enough.?
CNC engraving need cutting tools, we generally do not directly provide, we will call you from A partner, ordering tool directly by you. We try not to do, in order to reduce misunderstanding

4.If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.

5.how long does it take to machine a square meters relief?
Engraving machine working efficiency and the complexity of the design, processing depth, material processing and ease. So bad time estimates, carved in our company sample page with related practical sampling data for your reference.

Training to Customer:

1).We will supply with the machine operation manual in English version For :installation and operation, including introduction for the composing of equipment, working principle of equipment, common knowledge of computer, controlling principle of electric devices, daily maintenance measures of equipment. Personal demonstration for installation and adjusting of equipment, operation of equipment, programming of computer.

2). User can dispatch representatives to our factory for 2-3days for training. We are responsible for training them free of charge. While all the charges Including travelling charge and accommodation will be afford by the user.
