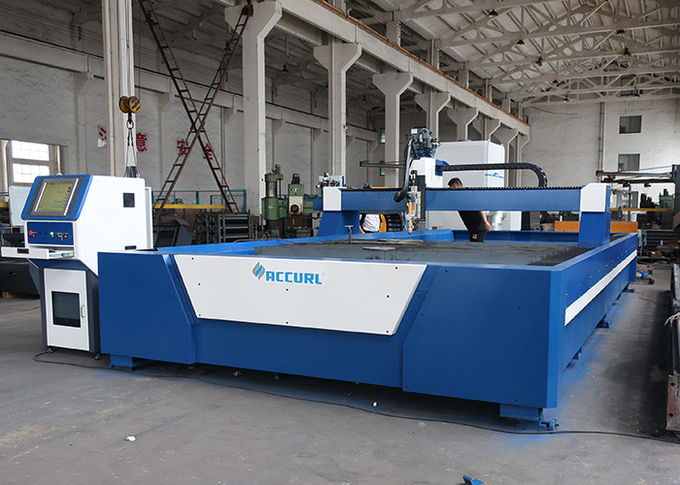

accuracy cnc plasma steel cutting machine / messer cnc plasma cutter

Detailed Product Description

---

Model Number:	CPL- 1530	Plasma Power:	HyPerformance HPR400XD
Mild Steel Cut Capacity:	38 Mm Dross Free	Stainless Steel Cut Capacity:	45 Mm Production Pierce
Aluminum Cut Capacity:	80 Mm Maximum Cutting Capacity	Keywords:	Plasma Cutting Machines

CNC Steel Plasma Cutting Machine 2500 x 6000mm with HyPerformance HPR400XD Plasma Source for Messer CNC Plasma Cutter

Product Description

The machine equippment with Multi-axis design, unique design bevel rotator, it is capable of ctting available V, Y, K, X type bevel cutting accurate bevel profiles on any angle from +45° To -45 ° , the rotator is controlled by CNC system automatically.

Gantry and box type welded structure, annealed heat treatment, long service life, stable and durable in heavy load and high duty performance.

Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface finish quality.

Integrated auto-ignition with automatic height controller, keep the height between the torch and work piece, achieve the best cutting quality.

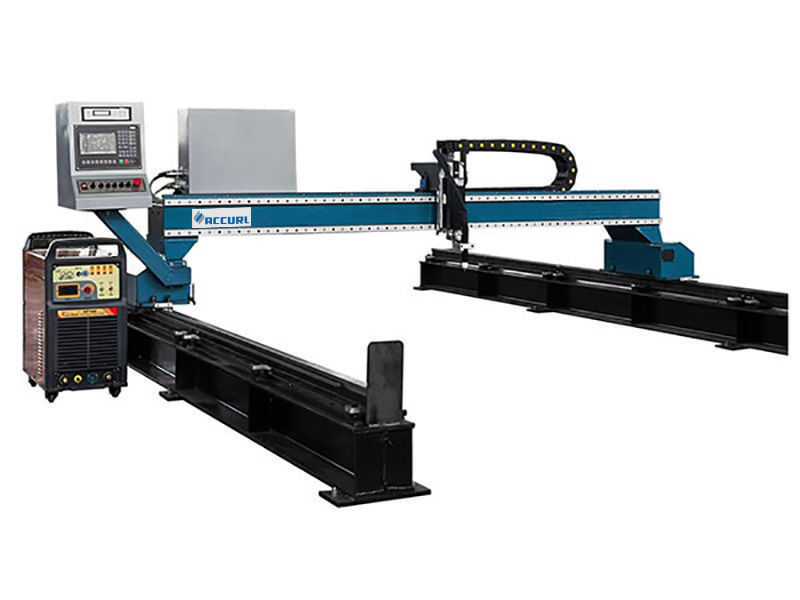

Gantry Type Series CNCSG is heavy duty, precision machine, specially designed for cutting large steel plate, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality.

Able to process multi-torch mirror image cutting or synchronism cutting, improve cutting efficiency.

Low use cost, dispense with special maintenance, friendly operator inteface, easy to learn.

Utility CNC system, reliable and safe, automatic programming, optimization nestling and piercing patch, save the steel effectively.

Features of plasma cutter

1. Fast cutting speed,high precision and low cost.

2. With firm and reasonable structure,the machine is easy to operate and durable for use.

3. The cutting incision is thin and tidily and can avoid the second processing.

4. High configurated CNC system,auto arc-striking and stable performance.

5. Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.

6. Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software).

7. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional).

8. Start control system and Start THC device.

Safety With Plasma Cutting machine

When using plasma cutting machine, appropriate safety goggles are necessary to avoid sparks and also for UV protection from the electrical arc. Heavy gloves and protective clothing are recommended as well to avoid burns.

Plasma power source

Please select the suitable Hypertherm plasma system (made in USA) according to the following introduction.

1. Hypertherm Plasma Capacity Chart

2. Air Plasma: PowerMax

3. LongLife Air and Oxygen Plasma: Maxpro200

4. HyPerformance Plasma: HPR*XD

HPRXD Plasma Selections Working Data:

	HPR130XD	HPR260XD	HPR400XD	HPR800XD
Mild steel cut capacity
Dross free	16 mm	32	38	38
Production pierce	32 mm	38	50	50
Maximum cutting capacity	38 mm	64	80	80
Stainless steel cut capacity
Production pierce	20 mm	32	45	75
Maximum cutting capacity	25 mm	50	80	160
Aluminum cut capacity
Production pierce	20 mm	32	45	75
Maximum cutting capacity	25 mm	50	80	160

Specification:

Type	Width	Length	Height	Cutting Width	Cutting Length
	mm	mm	mm	mm	mm
CPL- 1530	2550	4550	2250	1500	3000
CPL- 1540	2550	5650	2250	1500	4000
CPL- 2040	3700	5650	2250	2000	4000
CPL- 2540	4250	5650	2250	2500	4000
CPL- 2560	4250	8050	2250	2500	6000
