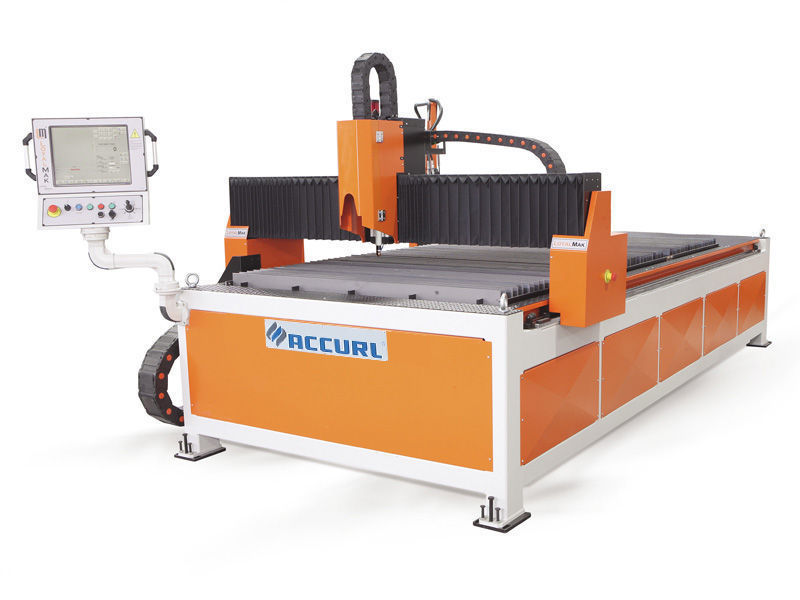

Gas Source CNC Plasma Cutting Machine

Detailed Product Description

Model Number:GSII-L1530-PMAX-105APlasma Power:Hypertherm Powermax105 USA
Gantry Type:TableEffective Cutting Area(Length):1100 X 2100mm
Cutting Positioning Accuracy:±0.5mm/mKeywords:CNC Plasma Cutting Machine

Product Description

Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to maintain constant at the same height and the quality, with the Arc-THC control sensor.
1. Perfect parallel movement:
The correct positioning is assured by high-resolution encoders, directly mounted on the motors. The synchronised system of the two motors assures perfect parallel movement of the gantry over the linear guides. Cutting Table: dry sectionized downdraft or water table is separately from the rails.
2. Automatic height positioning:
The ACCURL's gantry can accommodate multiple stations such as plasma and/or oxy torches. Included is a MicroEDGE Pro CNC Control unit, monitoring the Z-axis (by brushless AC Servo motor) for the automatic height positioning of the torch during the cutting process.
During the cutting process, the MicroEDGE Pro CNC unit measures the Arc Voltage and adjusts the Z-axis height to maintain a constant distance from the sheet for optimum cutting results.
3. Correct cutting height:
Each oxy-fuel torch carrier has an automatic flame ignition for the torch, as well as an integrated capacitive sensor "Hypertherm OHC" that controls the Z-axis movement (by brushless AC Servo motor ) for correct setting of the cutting height.

Main Features
1. Beam adopts Q345B welded square steel tube structure with stress release by tempering,it has high intensity and rigidity.
2. After precision machining of the surface,the crossbeam has good rigidity and high precision and excellent heat dissipation.
3. The product is suitable for equipment with any kinds of CNC systems.
4. Hypertherm Edge Pro CNC
5. Portal extension
6. Tube Rotator for round pipes 30... 140 mm , Square pipes 20x20mm ... 100x100 mm
7. Movable drawer to collect parts and dross
8. Available with Hypertherm Powermax series, Maxpro200 series and HPRXD series plasma sources
9. True Hole technology (with HPRXD auto gas plasma source)
10. Fume extraction filter
STANDARD EQUIPMENT
1. Make up of gas decompression valve and pressure gauge.Clear to check the whole machine pressure.
2. Adopt U71 heavy-duty rail by fine machining.
3. According to user’s requirement,assemble CNC flame single torch,power-spray scribe torch,stamping unit,plasma mechanical torch or linear triple cutting torch,and also fit auto igniter and auto height controller.
4. To ensure the beam won’t deform,it is designed in welded square structure,tempered to eliminate mechanical stress,and then processed by precision machinery.It has high mechanical strength and good rigidity.High-precision and fine-grinded guide rail,gear wheel and gear rack in high steel quality are assembled on top of the beam.Therefore,the accuracy of latcral movement can be guaranteed.The transverse track is bolted on the beam for the convenience of replacement and adjustment.
5. Used in the tracheal cable transmission of numerical control cutting torch,it can work continuously without generating mechanical fatigue.
6. To achieve synchronous motion of two supporting plate by steel strip.
7. The primary master drive is equipped with horizontal oriented wheel to keep stable guidance in operation.There are scraping crumbs on both sides of the driving shelf.They can clear the guide rail.

our service
1. Standardization of Service “212"
2. response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2. Installation Service
Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warranty is 3 year. We offer flexible extended warranties if needed.
