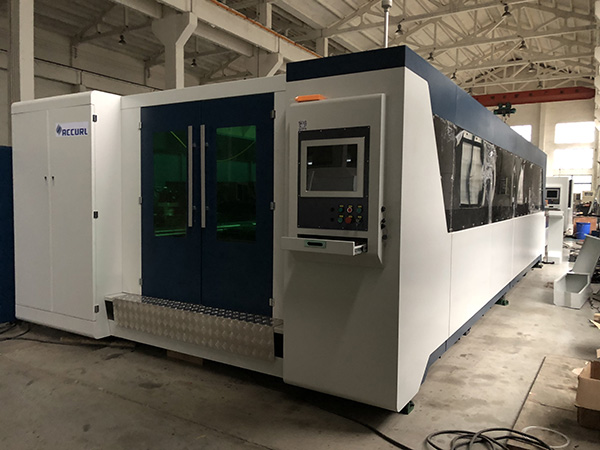

Beam Laser Cutting Suppliers Metal Laser Cutting Machine Design, Laser Metal Cutter For Sale

Specification


Laser SourceIPG/Raycus/Max
Machine Bodygantry structure
Working TravelHigh Precision Ball screw numerical control table with feeding device
Max running speed80m/min
X/Y location precision0.03mm/m
Power Supply380V 50Hz/60Hz
X/Y repeated location precision±0.03mm
Running Temperature0°C-40°C
Max Acceleration1.0G
Machine gross power<10KVA
Applied MaterialsThin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Total Weight4500KGS

Technology


Laser PowerMax cutting thickness
Carbon steel(mm)Stainless steel(mm)Aluminum (mm)Brass

(mm)

800W8311
1000W12422.5
1500W14543
2000W16654
3000W221068
      Above parameter for reference only

Training


After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:

a) Common drawing software training ;

b) Machine on and off training procedures ;

c) The significance of control panel and software parameters, parameters range’s setting;

d) Basic cleaning and maintenance of the machine ;

e) Common Hardware Troubleshooting ;

f) Caution of operation,

Warranty


a).2 Year for the whole machine(Man-made Damage is negotiated.).

b).Laser source 2 Year warranty

c).Lifelong maintenance and spare parts supply

d).Free training for operation staffs. (engineer can go abroad is negotiated.)

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-20mm
Cutting Area: 3000*1500mm
Cutting Speed: 8000mm/m
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Fiber Laser Cutting Machine Price, Chinese Laser Cutter Machines
Repeating accuracy: ±0.03mm
Mechanism sytmem: High precision optical shaft guide
Voltage: AC220V±10% 50HZ(60HZ)
Operating temperature:0°C-45°C
Working humidity: 5%-95%
Control software: Laser software
Support format: CAD,BMP,JPG,TIF PCX,TAG,LOO,GIF,PLT,AI
Working table: Blade,Honeycomb, Gridiron(optional)
Mainboard type: off-line step control system
