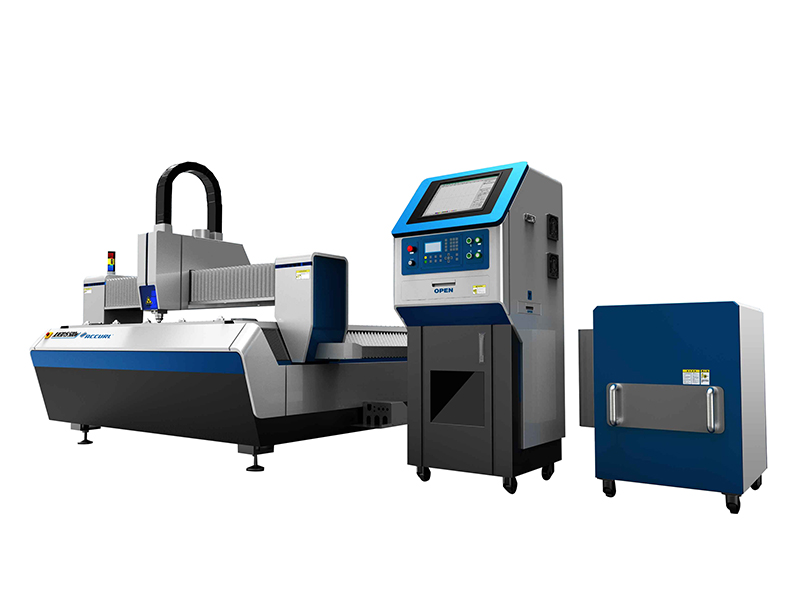

best high practicality tube plate integrated optical fiber laser cutting machine for metal

Product Description

This machine adopting high quality fiber laser and high precision WIRON square rail

drivre by helical gear.Controlled by advanced automatiic numerical system.This high

technology machine is a combination of laser cutting and automatic CNC machine.

Such perfect combination guarantee its high speed,precision,efficient and low cost .

So it is a preferred cutting machinefor batch processing of metal material.

Technical Parameters

ModelHN SERIES
Laser TypeFiber Laser
Laser Wavelength1060nm
Laser Maximum Power500W1000W2000W3000W4000W
Max. Cutting thickness≤8mm≤12mm≤16mm≤18mm≤20mm
Total Power Consumption<14KW<18KW<22KW<26KW<30KW
Max.cutting speed0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision≤±0.05mm/m
X, Y, Z Axis Repeat Precision≤±0.03mm /m
Min line width≤0.15mm
Maximum Empty Running Speed120m/min
Driving wayImported servo motor
Transmission wayY-axis import gear rack double driver, X-axis imported ball screw
Cooling SystemWater Cooling
Continuous working time24 Hours
Power requirements380V/3 Phases /50Hz or 60Hz
Packing size (L*W*H)4500x2300x1800mm

Features

1.Three "H" and one "L":High speed,High precision,High endurance and Low cost.

2.Easy to operate.And fiber transmission saves the complex laser path.

3.Equipped with automatic discharging system,which saves processing time and cost of

plate.Utilization rate of plate can reach to 95%.

4.Open worktable ,simple operation and small space occupation.

5.HIgh performance cast aluminum guide rail,after finite element analysis,realize highly

accelerated speed circular cutting.

6.High-rigidity heavy chassis,reducing the vibration generated during high-speed cutting greatly.

FAQ

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across

the world. We need your machines running in order to keep your business running.

2),Q: I am not sure if this machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and cutting thickness,

then I will recommend you the most suitable machine for you.

3),Q: Are you factory or trading company?

A: We are factory, which manufactures CNC cutting machines , with 10 years experience

in CNC machine’s industry.

4),Q:How can i do if the machine goes wrong?

A:If confronted with such problems,online service is offered,you could contact our sales.

Also,we offer engineer delivery service.Please contact us asap and don’t try fix the

machine by yourself or someone else.We will response within 12 hours as quick as we

can to solve it for you.

Our Services

(1) Two year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant.
(4) 18 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery.We will take machine photos and make
machine working image for you ,after gettingyour agreement ,then we will book a ship.
(6) Providing technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance).
(7) If you have any problem during your use.you need our technician to judge where the
problem is and help you to solve it. We can provide team viewer and skype with cam till
all of your problems solved.
