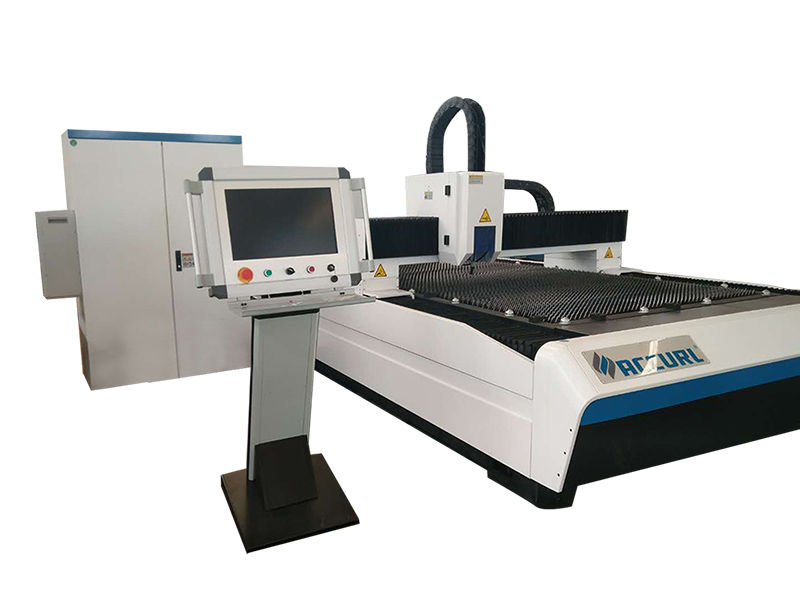

bottom price lasermen brand carbon steel fiber laser cutting machine

fiber laser machine

Technical Parameters

Model

accurl-1325-500W

Working Area

1300*2500mm

Laser

Fiber laser

Laser Power

 300W/500W/750W/1000W / 2000W   (10-100%)

Laser Wavelength

1070Nm

Working Speed

12 m/min

Max speed

60 m/min

Laser power injection

2,5 kw

X Y position accuracy

±0,015mm

X Y Reposition accuracy

±0,015mm

Min. cutting line width

0,02mm

Total power

6-10 kw

Max cutting thickness

5mm

Working Voltage

380 V± 10% / 50Hz

Auxiliary gas

N2/ O2

Motor

Japan sevro motor

Material

stainless steel, carbon steel , titanium sheet , and so on

Packing size

4*2,28*1,5m

Weight

3500kg

Machine Features

1. High quality laser beam: smaller focal spot, refined cutting kerfs, higher working efficiency, better processing quality.

2. Rapid cutting speed: the cutting speed is twice as fast as CO2 laser (cutting with equal laser power)

3. Stable performance: laser device lifetime can be up to 400,000 working hours;

4. High photoelectric conversion ratio: its efficiency is 3 times higher than common co2 laser, and it is energy-saving and environmentally friendly;

5. Low running costs: gross power is just 20-30% of co2 laser.

6. Low maintenance costs: no working gas for laser device; optical fiber transmission doesn’t need reflecting mirrors, which save lots of maintenance costs.

7. Easy operation and maintenance: optical fiber transmission and no need to adjust the optical path;

8. Flexible optical effects: compact volume and structure, easy to meet the requirement of flexible manufacturing.

Warranty

1. One year quality warranty for the machine,

2. Life time maintenance free of charge

3. Free training course at our plant

4. 24 hours on line service each day ,free technical support

5. Machine has been adjusted before shipping

Applicable Materials

accurl-1325-500W fiber laser cutting machine can cut precisely all kinds of metals, such as stainless steel, mild steel, aluminum alloy, iron, etc.

Applicable industries

Aerospace technology, aircraft, rocket, robot, elevator and steamship manufacturing, sheet metal cutting, kitchen furniture, electron components, auto parts, cooling and ventilation pipes, label, hardware and many other metal parts processing industries.

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0.2mm-8mm
Cutting Area: 1300mm x 2500mm
Cutting Speed: 60000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Baichu
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Other
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Certification: CCC, CE, ISO, FDA
After-sales Service Provided: Engineers available to service machinery overseas
Laser power: 300W/500W/750W/1000W / 2000W
Machine table: aluminum blade table
Laser Wavelength:1070nm
Min. cutting line width: 0.02mm
Working Speed:12 m/min
Max speed: 60 m/min
Working Voltage: 380 V± 10% / 50Hz
Motor: Japan sevro motor
Type: carbon steel fiber laser cutting machine
