Application industries
Glasses, jewelry,kitchen ware, chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries.
Function Advantages
1. Excellent quality of light beam
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability and efficiency of photoelectric conversion
4. Very low using cost and maintenance cost
5. Convenient product operation and maintenance
6. Very strong soft optical effects: compact volume and structure
7. Gantry double driving structure, high damping machine tool bed, good rigid,
8.This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed,high precision and high reliability of equipment.
9. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
10. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.
11. Automatic swiching table configuration, which shortens the standby time, and effectively enhances the working efficiency more than 30%.

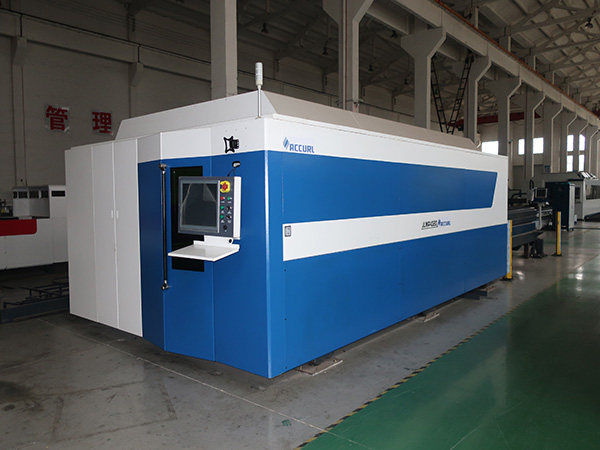

12. Fully enclosed protective cover,using safety.(Enclosed Model)
Imported Germany Laser Cutting Head :Selection of Germany Laser cutting head brings Z axis servo function. It’s servo sensor adopts capacitive sensing sensor monitoring and provide cutting auto focusing features of high sensitivity, stability and fastness. With characteristics, it makes the fixed length cutting head body install optical lenses with different focal lengths so that the focus and the nozzle height can be adjusted flexibly.
Consumption Materials Sheet Reference
Number | Materials | Cutting Carbon Steel Plate(1mm) | Cutting Stainless Steel or Aluminum Plate(1mm) | |
Bottle Nitrogen | Liquid Nitrogen | |||
1 | Power consumption | USD 0.58 /hour | ||
2 | Laser gas consumption | 0 | ||
3 | Cutting auxiliary gas consumption | USD1.1 / hour | USD9.5 / hour | USD4.7/ hour |
4 | Protective Mirror | 1 month / pc | ||
5 | Focusing lens consumption | 1 month/pc | ||
6 | Cutting nozzle consumption | 1 month/ pc |
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 20mm
Cutting Area: 3500x1500mm
Cutting Speed: 18m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: automatic control
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas

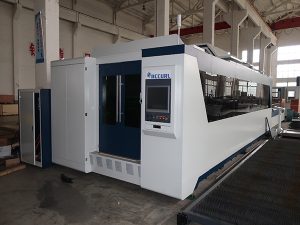

500w fiber laser cutting machine: without consumptive materials
CE and ISO: Excellent Service
Technical Parameters
Laser Type | Imported Original Fiber Laser | ||||
Laser Wavelength | 1060nm | ||||
Laser Maximum Power | 500W | 1000W | 2000W | 3000W | 4000W |
Max. Cutting thickness | ≤8mm | ≤12mm | ≤16mm | ≤18mm | ≤20mm |
Total Power Consumption | <14KW | <18KW | <22KW | <26KW | <30KW |
Working Size | |||||
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||
X, Y, Z Axis Orientation Precision | ≤±0.05mm/m | ||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||
Min line width | ≤0.15mm | ||||
Maximum Empty Running Speed | 120m/min | ||||
Driving way | Imported servo motor | ||||
Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw | ||||
Worktable Max Load | 1600 KGS | ||||
Cooling System | Water Cooling | ||||
Continous working time | 24 Hours | ||||
Environment temperature | 0-35°C | ||||
Power requirements | 380V/3 Phases /50Hz or 60Hz | ||||
Power requirements Outer size (L*W*H) | 4500x2000x1800mm |
