china price cnc plasma steel, metal cutting machine

Product Description

---

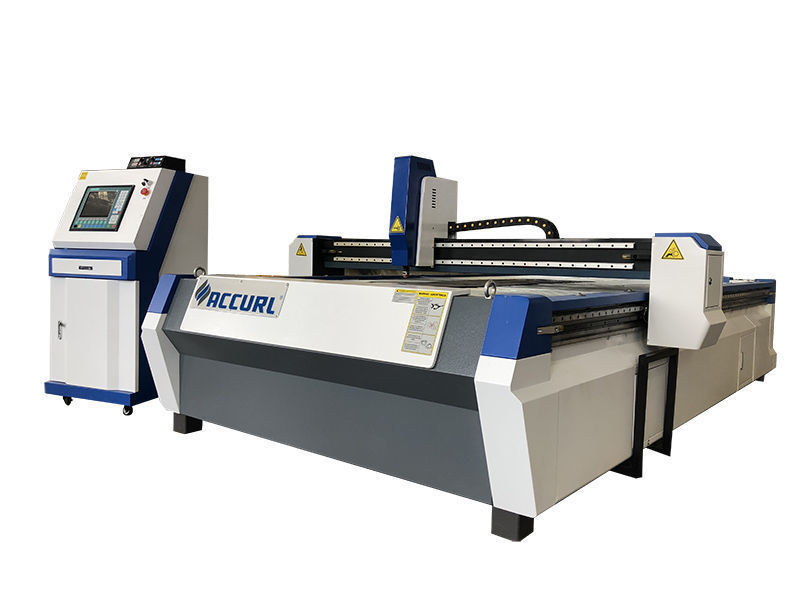

The CNC Metal Plasma Cutting Machine included a heavy duty, all steel construction with superior quality components such as precision rack-n-pinion drives on the X and Y axes, and a ballscrew on the Z axis which provides precise torch positioning, high-speed cutting up to 800 IPM and the ability to cut up to 1" thick steel. The machine comes standard with a steel V-grid down draft and a water spray nozzle to help reduce smoke.

Machine Manufacturing, Armored Vehicles, Automotive Fabrication, Construction, Decorative Fencing, Job Shops, Structural Steel, Marine Fabrication, Oil Field Equipment, Sign Shops, Metal Fabrication, etc.

Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Diamond Plate, Expanded Metal, Iron, Galvanized and more.

Guarantee & After Sales Service
1.)This cnc plasma cutting machine is guaranteed for 24 months.
2.)Technical support by phone, e-mail or MSN around the clock.
3.)Friendly English version manual and operation video CD disk.

SPECIFICATIONS

---

Layout: Horizontal
Automatic Grade: Automatic
Cutting Mode: Plasma Cutting
Rated Power: 2.5kw
Table Type: Steel V-Grid Down Draft
Repeatability Accuracy: <0.03mm
Cutting Thickness: 1-50 mm
Warranty: 2 Years
Transport Package: Plywood Standard Package
Origin: Shandong, China
Customized: Customized
Cutting Material: Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Power Source: Electric
Voltage: AC380V, 50/60Hz
Frame: Welded Steel Tube
Plasma Generator: Plasma Generator
Working Form: Untouched Arc Striking
Plasma Power: 65A/85A/105A/125A/200A
Specification: 1300x2500x200 mm
HS Code: 8461500090

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500mm
2	Cutting thickness	(120A)3-18mm
3	X,Y Traveling Positioning Accuracy	±0.01/300mm
4	Cutting Speed	0-8000mm/min
5	Plasma Generator	American Cut-Mast
6	Frame	Welded Structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Working Form	Untouched Arc Striking
9	Working Voltage	3-Phase 380V
10	Control system	Start control system(optional: DSP)
11	Software	Type3
12	Document Transmission Form	USB Interface
13	Drive Motors	Stepper System
14	G.W.	980KGS
15	Packing Size	7.1 CBM



Tags: plasma metal cutting machine
