Product Description

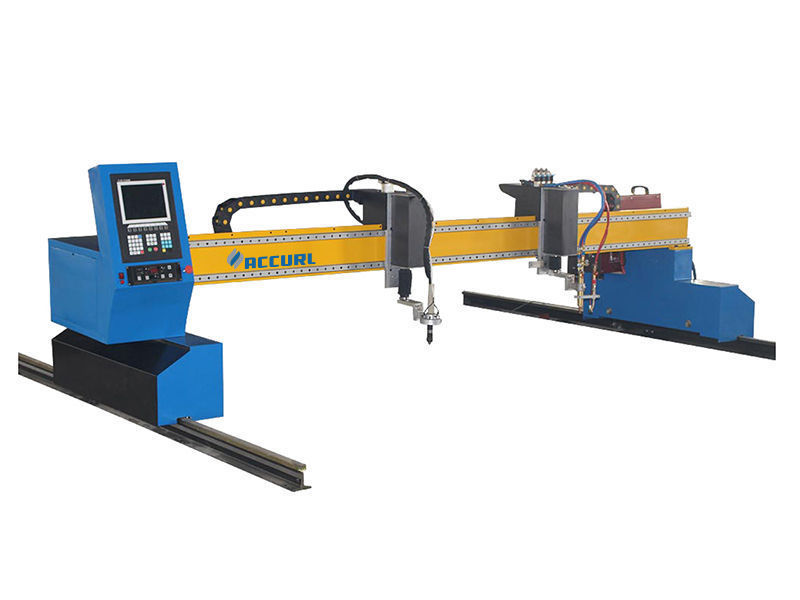

China supplier steel plate cnc gantry plasma and flame cutting machine plasma cutter
Features
1. Steel hollow beam design ensures good heat dissipation without deformation.
2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4. World’s top branded components and circuits ensure long service life.
5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
| Technical Specification | |
| Model | CNC |
| Machine dimension (mm) | Maximum 12 meter in width and not limited in length |
| Effective processing area (mm) | 1 meter less in width and 2 meter less in length than machine size |
| Suggested cutting thickness (mm) | Stainless steel:1-50mm and Carbon steel:6-160mm |
| Drilling capacity (mm) | Maximum 140mm in depth and 35mm in diameter |
| Drilling power | 8Kw (25hp) 1Kw=1.36PS=1.34HP |
| Drilling feed | 10m/min (400ipm) |
| Drilling torque | 200 N.M. (150 ft-lb) |
| Borehole pressure | 11000 N (2500 lbf) |
| Cutting Speed (mm/min) | 50-9000 |
| Running speed (mm/min) | 12000 |
| Basic components | |
| Cutting Mode | Oxy-fuel/ Plasma/ High definition plasma/ Laser |
| Drive mode | Servo motor, Dual-side |
| Guide track | Straight ball-guide |
| Cutting Torch Number | Customer specified |
| Driving Motor | Panasonic from Japan |
| NC Controller | Micro EDGE pro, Shanghai KP, SJTU-SK |
| Plasma Power | Victory (Thermadyne), Kjellberg, Hypertherm, JIAXIN LGK |
| Programming software | FASTCAM |
| Gearbox | SEW or Neugart from Germany |
| Other Data | |
| Working temperature | - 10°C -45°C |
| Humidity | <90%, no condensation |
| Surroundings | Ventilation, vibrationless |
| Power voltage | 3×380V±10% 50Hz/ according to user's local condition |
| Operation language | Multilingual and English available |
| Options | |
| Powder marking | available |
| Under water cutting | available |
| Beveling torch | available |
| Strip cutting torch | available |
| Heating and cooling system | available |
| Integration dust extraction | available |
| Thin plate processing device | available |
Quick Details
Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Voltage: 50Hz 380v/220v
Rated Power: 8.5KW
Dimension(L*W*H): 5.2m*1.5m*1.4m
Weight: 1200kg
Certification: CE ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: Cnc gantry type flame cutting machine plasma cutting machine
Color: Red,Blue,Black or Customers requst
Effective processing area (mm): 1 meter less in width and 2 meter less in length than machine size
Suggested cutting thickness (mm): Stainless steel:1-50mm and Carbon steel:6-160mm
Drilling capacity (mm): Maximum 140mm in depth and 35mm in diameter
Drilling power: 8Kw (25hp) 1Kw=1.36PS=1.34HP
Drilling feed: 10m/min (400ipm)
Drilling torque: 200 N.M. (150 ft-lb)
