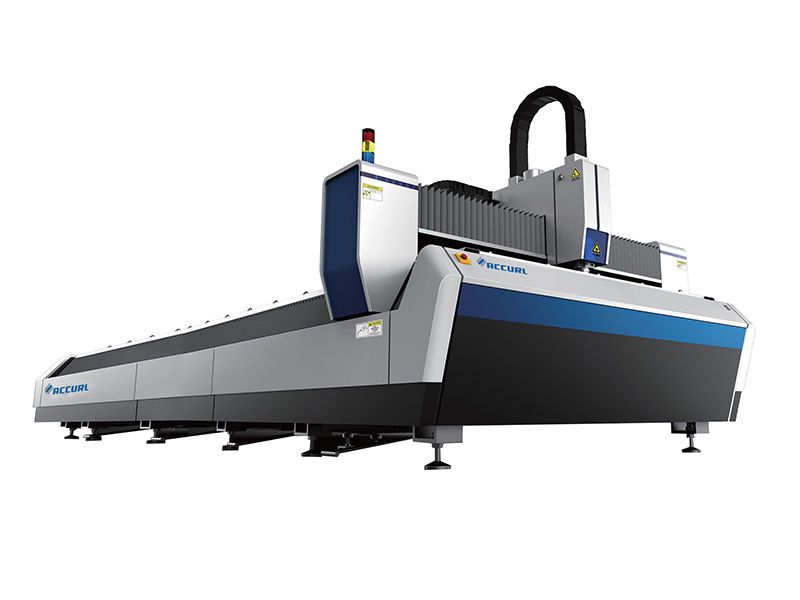

Cnc 4000w carbon steel stainless steel fiber laser cutting machinery machines companies

laser cutting machine companies

China High speed Money making fiber metal laser 2000 watt cutting machines Features

1. 300W, 500W, 750W, 1000W, 1500W, 2000W, 3000W, 6000W, 8000W fiber laser power available

2. IPG, N-light, RAYCUS fiber laser source brand available

3. Various models, 600*400mm, 1300*900mm, 1300*2500, 1500*3000mm, 2000*4000mm, 1500*6000mm, 2500*6000mm fiber laser cutting machine models etc

4. High speed, high accuracy, stable performance, best quality

5. Jinan biggest factory, WK Laser, best after-sales service, 3 years’ warranty

6. Support Factory Inspection

China High speed Money making fiber metal laser 2000 watt cutting machines Technical Parameter

Model: China Classic factory carbon fiber laser cutting machine 500w for sheet metal

Laser source: IPG, Raycus, N-light

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000W

X, Y and Z axis stroke : 3025mm, 1525mm, 100mm

Weight : 5500KG

Appearance size : 4800*2600*1750mm

Working size : 3000*1500mm

X and Y positioning accuracy : +-0.05mm

Max speed : 100m/min

Max acceleration : 1G

Max load-bearing of work table : 500KG

Transmission mode : important high precision with double driving rack

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A

Fiber Laser Metal Cutting Machine Parameter

Thickness mm	0.8mm	1mm	1.5mm	2mm	2.5mm	3mm	4mm	5mm	6mm
Processing speed m/min	90	70	50	40	35	25	20	18	14
Auxiliary gas	N2	N2	N2	N2	N2	N2	N2	N2	N2
electricity CNY/h	47.5	47.5	47.5	47.5	47.5	47.5	47.5	47.5	47.5
Auxiliary gas costs CNY/h	51.58	51.58	51.58	51.58	60.74	91.52	91.52	91.52	143.1
Total operating costsCNY/h	101.58	101.58	101.58	101.58	110.74	141.52	141.52	141.52	193.1

Quick Details

Application: Laser Cutting, Metal, carbon steel, Galvanized sheet laser cutting engraving machine
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Depends
Cutting Area:1500*3000mm
Cutting Speed: 0-600mm/s
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: DSP
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: LF3015G
Certification: CE, ISO, FDA
After-sales Service Provided: Engineers available to service machinery overseas
Product name: CNC 4000W carbon stainless steel fiber laser cutting machines
Laser power: 500w, 750w, 1000w, 1500w, 2000w, 3000w, 4000w, 6000w
Drive system: YASAKAWA Servo system
Working table: Knfie strip
Laser type: IPG, RAYCUS, NLIGHT, fiber laser source
Cooling mode: Dustrial chiller
Warranty: 3 Years
Auxiliary equipments: Auto partitioned exhausted system
