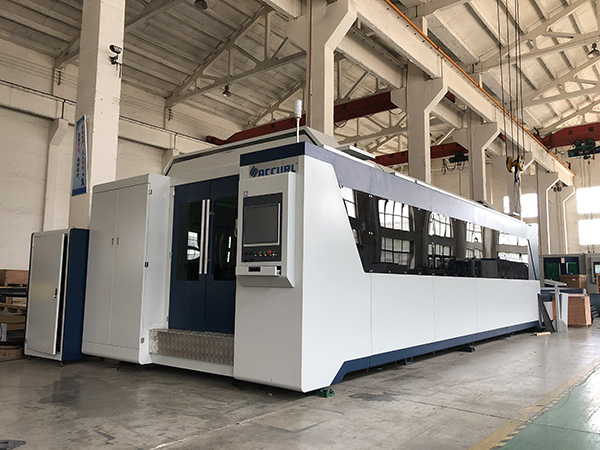

1. Description Of Fiber Laser Cutting Machine
Fiber Laser Cutting Machine can cut different metals, such as carbon steel/mild steel, stainless steel, alloy steel, aluminum, titanium alloy, etc. It boasts fast cutting speed and high cutting precision. Work table size 2513, 3015, 4015, 4020, 6015, 6020 can be customized.
2. Key Information of Fiber Laser Cutting Machine
|Product Type||Fiber Laser Cutting Machine|
|Cutting Material||carbon steel/mild steel, stainless steel, alloy steel, aluminum, titanium alloy|
|Applied Industries||shipbuilding, railway locomotives, automobile, high pressure vessels, electric cabinets, household appliances, textile machinery, engineering machinery, High precision parts, elevators, sheet metal processing, etc.|
|Graphic Format Supported||AI, DXF, PLT, GBX|
|Control System Functions Supported||bridge connection, leapfrog, slotting compensation, etc.|
|Machine Tools, Fiber Laser Source, Cutting Head, Control System, Driving System, Water Cooling System|
|Core Parts & Brand & Lifetime||Core Parts: Fiber Laser Source|
Brand: IPG, Raycus (optional)
Lifetime: 100, 000 hours
|Cooling Mode||Water Cooling System|
|Continuous Working Hours||22 hours|
|Cutting Software||English Version|
Graphic Format Supported: AI, DXF, PLT, GBX
With Powerful Function
Features for Fiber Laser Cutting Machine
long lifetime; excellent beam quality; precision and smooth cutting edge.
fast cutting speed. It's three times quicker than CO2 laser cutting machine.
high conversion rate between laser and electricity. (as high as 30%); low electricity consumption.
low operation costs. It's flexible transmission. It does not require working gas, which saves operation costs.
high stability and precision
powerful functions. It's equipped with professional CNC cutting software, which supports AI, DXF, PLT, GBX files. It boasts below functions, including bridge connection, leapfrog, slotting compensation, etc.
High Speed; High Performance; High Efficiency; Low Gas Consumption; Low Electricity Consumption; Low Operation Costs.
Main Parts Introduction
Fiber Laser Source
Water Cooling System
Technical Parameters of Fiber Laser Cutting Machine
|Machine Name||Fiber Laser Cutting Machine|
|LP-FLC2513-500; LP-FLC2513-750; LP-FLC2513-1000; LP-FLC3015-500; LP-FLC3015-750; LP-FLC3015-1000|
|Fiber Laser Source||IPG, Raycus (optional)|
|Laser Power||500W, 750W, 1000W, 1200W, 1500W, 2000W, 3000W (optional)|
|Process Area||2500mmx1300mm; 3000mmx1500mm; 4000mmx1500mm; 4000mmx2000mm; 6000mmx1500mm; 6000mmx2000mm|
X, Y Positioning Accuracy
X, Y, Z Repetition Positioning Accuracy
X, Y Max. Running Speed
X,Y Max. Linkage Speed
|Max. Loading Weight Of Work Table||500KG|
|Power Supply||Three Phases, 380V, 50/60Hz|
8. We will recommend suitable power to customers according to customers' detailed cutting requirement and work pieces.
After delivery, we will send our technician to customer' plant for machine installation, commissioning and training.
We provide one-year machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer's plan for machine repair. We will respond to customer's question within two hours.
9. Quality Control of Fiber Laser Cutting Machine
Fiber laser cutting machine is our core competencies. Quality is our culture. Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse. Before shipment, we will make strict inspection to ensure high performance and high stability.
Q: Which metal can cut? What's cutting thickness of 500w fiber laser cutting machine?
A: Fiber laser cutting machine can cut different metals, such as mild steel/carbon steel, stainless steel, aluninum, alloys.
As for 500w fiber laser cutting machine, it can cut max. 6mm carbon steel/mild steel, 3mm stainless steel, 2mm aluminum.
Q: What's cutting size?
A: Generally, standard cutting size is 3015. We can customize it according to different requirement.
Q: How to Install the machine?
A: We will send our technician to customer's plant for machine installation, commissioning and training.
Q: In case machine exists problem, how to do after sales service?
A: We provide one year machine warranty. During the warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q:What's consumables of fiber laser cutting machine?
A: Protection lens, cutting nozzle and ceramic parts. Price is very economical.
Q: If we need to cut work piece with different height, is it available?
A: Yes, it can cut work pieces with different height. The focus length can be adjusted automatically.
Q: Can we cut both sheet metal and tube or pipe using this model?
A: This design is used for sheet metals cutting.If you need to cut tube or pipe, we will add a rotary device as per your work piece's specifications.
Q: What's driving system of fiber laser cutting machine?
A: It's driven by rack and pinion, which boasts higher cutting speed.
Q: What's package?
A: We have 3 layers package. For the outside, we adoptplywoodcase. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 20working days after receive the payment.
