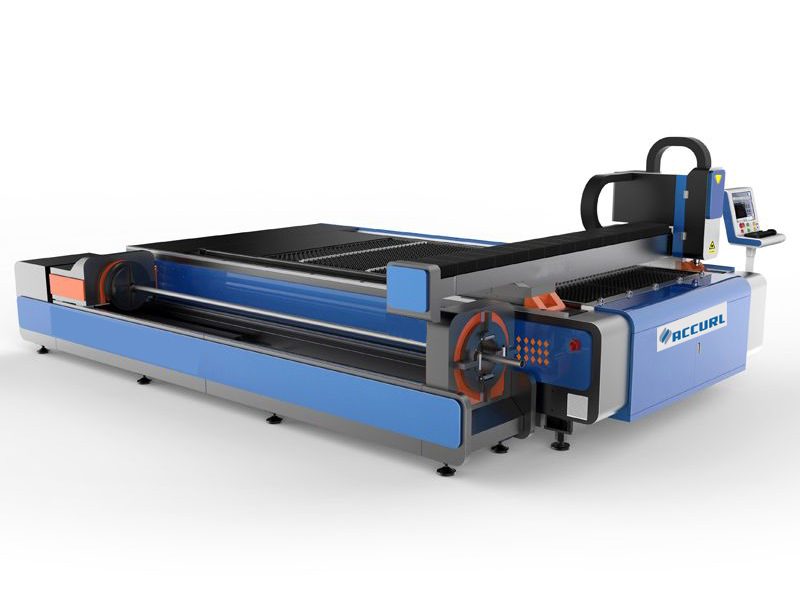

cnc fiber laser cutting machine for metal sheet&tube pipe cutting

cnc tube cutting machine

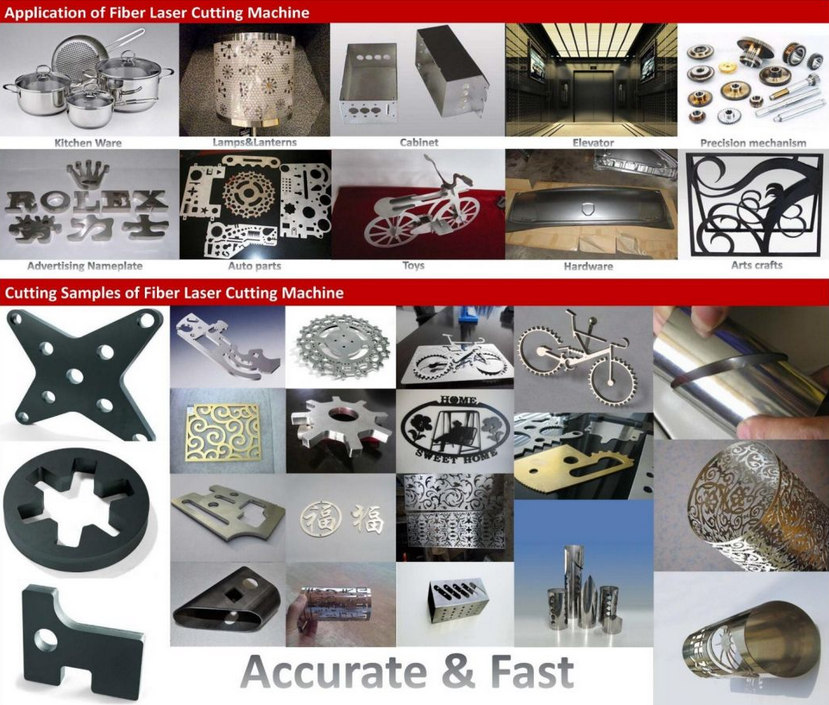

Application

Technical parameters of EETO-FLSP3015-1000W:

MODEL	EETO-FLS3015P-1000W	STRUCTURE	Gantry type
OUTPUT POWER	1000W	DRIVEN STRUCTURE	Duel-driven
*CUTTING AREA (LW)**	3000*1500mm	DRIVEN MODE	Servo control(X axis 1.8KW, Y axis 3KW)
RATED CUTTING THICKNESS	10mm CS; 4mm SS	X AXIS STROKE	3020mm
MAX CUTTING SPEED	330mm/s	Y AXIS STROKE	1520mm
RATED IDELING SPEED	80m/min	Z AXIS STROKE	150mm
POSITIONING ACCURACY	±0.03 mm	COOLING	Water chiller
RE- POSITIONING ACCURACY	±0.02 mm	AMBIENT TEMPERATURE	5ºC-45ºC
CUTTING GAP	0.1mm	BEARING WEIGHT OF TABLE	1000Kg
CONTINIOUS WORK TIME	24H	PROTECTION LEVEL	IP54
POWER SUPPLY	AC380V±5%(50Hz/60Hz)	TOTAL GROSS WEIGHT	8000kg
TOTAL POWER	<12KW	*TOTAL DEMENTION(LWH)*	860038002000mm

Cutting Ability of EETO-FLS3015P-1000W:

Material	Thickness(mm)	Cutting Speed(mm/s)	Gas
Carbon Steel	1	300	Air
	2	100	Oxygen
	3	75	Oxygen
	4	35	Oxygen
	5	25	Oxygen
	6	21	Oxygen
	7	18	Oxygen
	8	18	Oxygen
	9	15	Oxygen
	10	15	Oxygen
Stainless Steel	1	330	Nitrogen
	2	115	Nitrogen
	3	50	Nitrogen
	4	33	Nitrogen
	5	20	Nitrogen

Note: As for cutting pipes, round pipe's cutting thickness and speed is similar to sheet cutting;
Square and rectangle pipes' cutting thickness and speed is about half of the sheet cutting.

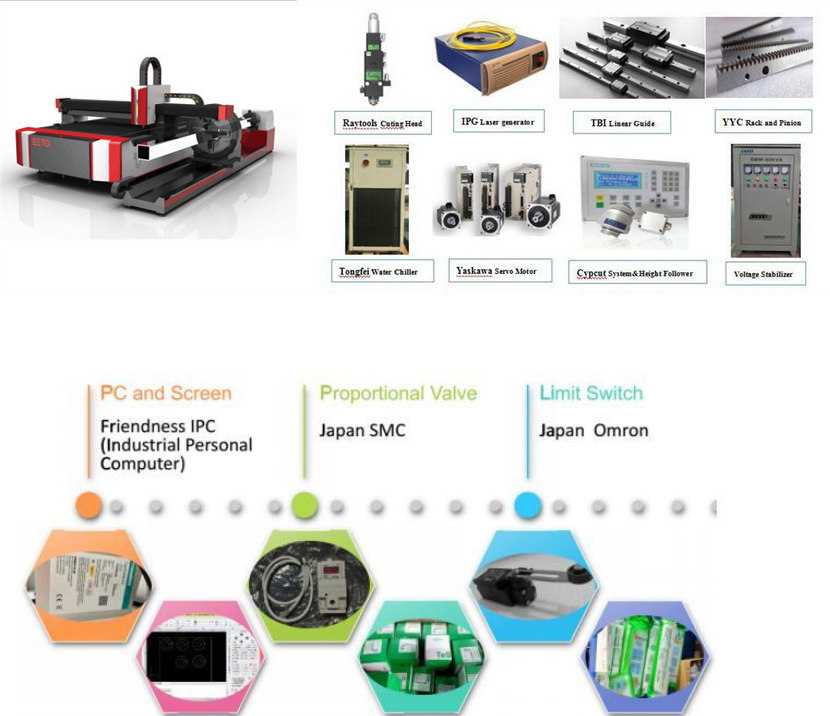

Best cost performance configuration

For machine body, we use tube sheet welding structure, which is the best stable structure so far, total weight up to 6 tons,
and every machine should apply annealing and abrasive blasting, which can strengthen the welding spots' stability
and get a neat and beautiful machine.

What's more, this model even has many value-added details, include voltage stabilizer, air conditioner for laser, many
innovative designs to improve the machine's appearance, sheet feeding device, additional accessories package and so on.
More value-added details welcome come to our factory and you will find by your own eyes!

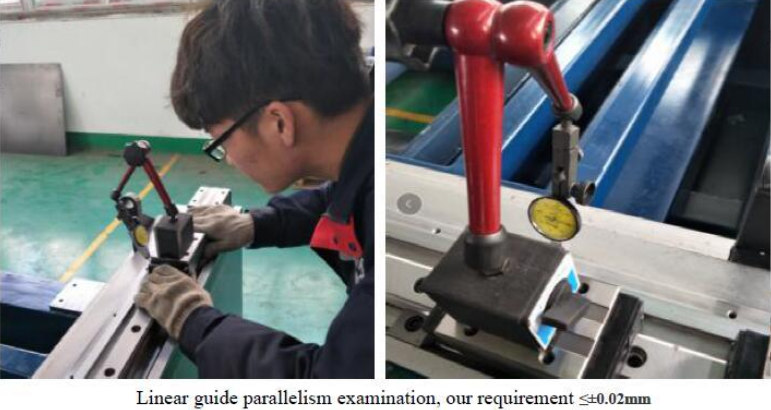

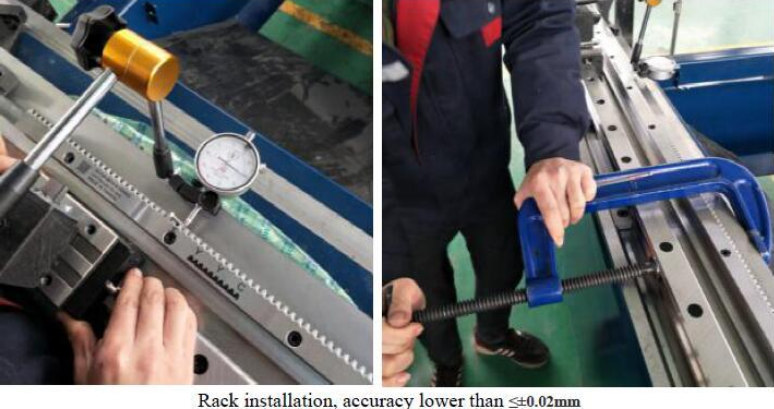

Strict quality inspection and testing before shipping

Various and convenient after-sales service

1 Free sample cutting 2 Two years warranty

3 Free technical training 4 Installation and commission support

5 24 hours on-line service 6 Additional warranty and low prices for consumable parts

7 Provide industry solution for customer 8 Dispatch engineer to have a train on customer 's site

FAQ:

Q: What's the working area of our fiber laser cutting machine?
A: Our standard working area is 3000*1500mm. But we can also do customized sizes as request.

Q: What's the laser power of our fiber laser cutting machine?
A: Now our standard laser power include 300W, 500W, 700W, 750W, 1000W, 1500W, 2000W, 3000W and 4000W.
And usually use Germany IPG laser generator, but can also choose Raycus Laser as your request to save money.

Q: What materials can we cut? What's the cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut most metal materials, but generally used for cutting carbon steel and stainless
steel. Cutting thickness is from 0.5mm to 25mm according to different laser power.

Q: How to install the fiber laser cutting machine?
A: We will send our technician to customer's place for machine installation, commissioning and training.

Q: In case machine gets problem when customer use it, how to do after sales service?
A: We provide two years machine warranty. During the warranty, in case machine exists problem, we will provide
parts free of charge by express. After the warranty, we still provide lifetime technical support service.
And we have agents in many countries,which can offer local door-to-door technical services.

Q: If we need to cut work-piece with different height, is it available?
A: Yes, it can cut work pieces with different height. The focus length can be adjusted automatically of our fiber laser
cutting machine.

Q: Can we cut both sheet plate and pipe in one machine?
A: Yes, our sheet and pipe laser cutting machine can do that.

Q: What's the delivery time?
A: Generally speaking, lead time is within 40 days after receive the deposit.
