cnc fiber laser cutting machine for metal tube laser cutting machine

 Laser Cutting Machine

Product Details


Certification:CE ISO SGS UL
Model Number:Smart KJG-1530 / IPG 500w Laser Cutting Machine
Payment & Shipping Terms:
Minimum Order Quantity:1 set
Price:USD 50500-68500 set
Packaging Details:wooden cases for Fiber Laser Cutting Machine
Delivery Time:25 daty
Payment Terms:L/C, D/P, T/T, Western Union
Supply Ability:20 Set Month

Detailed Product Description


Laser Power:IPG 500W Fiber LaserLaser Source:America / Russia IPG Fiber Laser Resonator
Processing Surface(L × W):3000mm X 1500mmCNC Control:Shanghai FISCUT CypCut
Laser Head:Switzerland RaytoolsKeywords:500w Laser Cutting Machine

500w CNC Laser Cutting Machine for metal tube laser cutting machine manufacturers

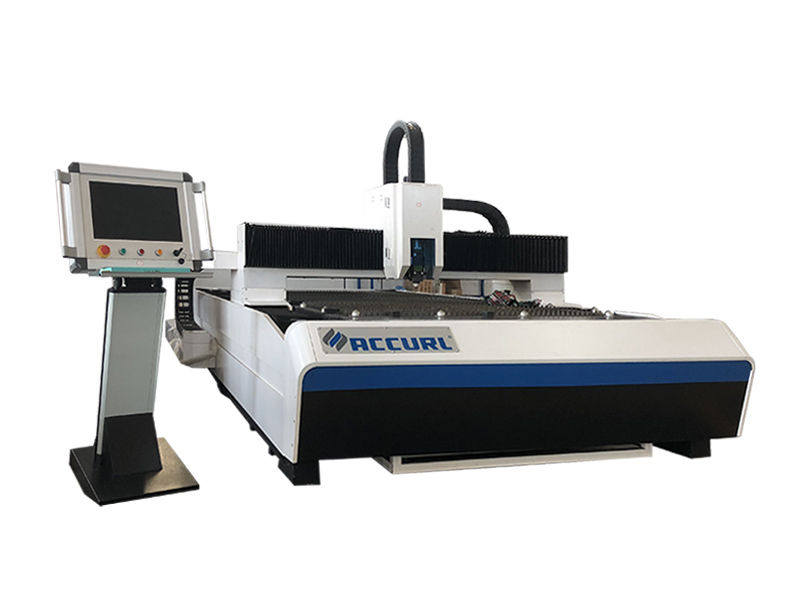

ACCURL 500W Fiber Laser Cutting Machine can be used to cut a wide range of materials. Fiber lasers are more effective than other laser sources for cutting highly reflective materials e.g. aluminium alloys, cooper, brass...etc. Varied thicknesses (up to 22 mm of mild steel) can be cut with efficiency and quality. Productivity increases particularly with thin sheet metal with almost zero maintenance and 70% less cutting cost compared to CO2 laser cutting machine.

Applicable material for 500w Laser Cutting Machine


Dedicated in cutting carbon steel(within 10mm),stainless steel,galvanized steel,electrolytic plate.silicon steel,aluminum,copper and other metal materials which thickness within 5mm.
General Features for 500w Laser Cutting Machine:

1. Open Type Fiber Laser Cutting Machine all in one KJG-1530 Laser Cutter
2. Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals
3. Fiber laser power source options from 500W ,700W ,1000W ,1500w
4. Fiber offers reduced maintenance requirements and operating costs compared to CO2
5. Position acccuracy <+/- 0.01mm
6. Japanese servo motors & drivers
7. Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear

Standard Equipments for 500w Laser Cutting Machine


1. 500W Ytterbium Laser Resonator
2. Linear Driven X, U and Y Axes
3. High Rigid Frame
4. Empower or FAGOR CNC Controller
5. Precitec Cutting Head
6. Lantek Software
7. Shuttle Table
8. Chiller Unit
9. Proportional Gas and Piping System
10. Dust Filter
11. Compressor
12. Conveyor for Scraps

Specification for 500w Laser Cutting Machines


TECHNICAL FEATURES
Model1530 / 500w
Maximum cutting capacityMild steel6 mm
Cut Thickness2.5 mm
Stainless steel2 mm
Aluminyum1 mm
Laser PowerYLR-500Watt IPG
Max running speed40/min
Work piece dimensions1500 x 3000 mm
Rapid traverse (X and Y axis)105 m/min
Acceleration1.2G (12m/s2)
Absolute positioning accuracy± 0.03 mm
Max. load capacity1550 kg
Fume extractor1000 m3/hour
Laser Cutting HeadRayTools BM110 from Switzerland
Feed rateProgrammable up to 30 m/min
Applied MaterialsThin mild steel, Stainless steel, Aluminum, Copper plate

Main Parts for 500w Laser Cutting Machine


Article NameRemark
Fiber laser resonatorIPG (Germany)/1000W
Servo motor and driverDELTA (Taiwan)
Ball screw rodHIWIN (Taiwan)
Liner guideHIWIN (Taiwan)
Gear rackYYC (Taiwan)
Laser headRAYTOOLS (Switzerland)
ChillerTONG FEI (China)
ControllerFISCUT (China)
Gas Proportional valveSMC (Japan)
Reduction gear boxAPEX (Taiwan)
