cnc fiber laser metal tube / pipe cutting machine for round / square / rectangular / oval tube

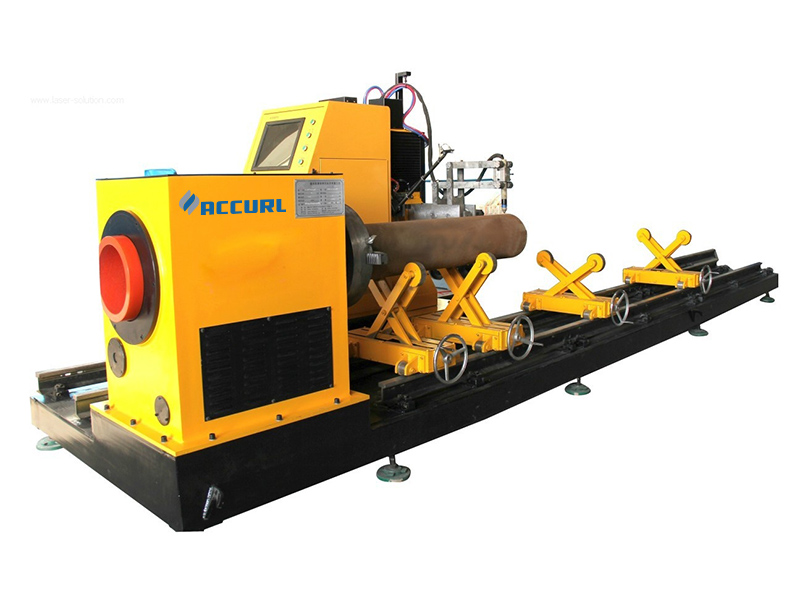

cnc square tube cutting

Machine Description

Fiber laser cutting tube / pipe cutting machine P2060A features

♦ Can cut lines and holes with different diameters from different directions on the pipe,and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.

♦ Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal non-centrifugal vertical intersection condition for branch and main pipe axis.

♦ Can cut inclined with the main circular pipe.

♦ Can cut branch pipe intersected with the main circular pipe.

♦ To realized angel groove face,square hole,waist-shaped holes cutting.

♦ Fully automatic CNC laser tube cutting machine, which utilizes an automatic loader and unloader allowing this machine to run continuously with minimal operator involvement.

P2060A Machine Core Parts Features

®Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose

® Round pipe, rectangular pipe and other pipes can be fully automated loading, without human intervention.

® Other shapes pipe can be semi-automatic feeding artificially.

® Max Loading Bundle 800mm*800mm

® Max Loading Bundle Weight 2500kg

® The tape support frame for easy removal

® Bundles of tubes lifting automatically

® Automatic separation and automatic alignment

® Robotic arm stuffing and feeding accurately

Automatic Collecting Device

® Automatic elevating support, receive tube and scrap into the basket
® Visual scale support can adjust support diameter quickly according to pipe diameter
® Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging

Advanced chuck clamping system

® Chuck by changing the gas path, the usual four-jaw chuck linkage, optimization Cheng stroke power chuck double acting.

® Cutting different diameters, the shape of the pipe in the travel range (bilateral stroke 80mm),no need to adjust the jaw easy setup and centered.

® easy switching of different diameters, a substantial saving setup time.

Supporting wheel diameter scale adjusting

® Supporting wheel diameter scale adjusting,20-200mm range, within in 20-200mm diameter, different types of tubes,simply adjust correct scale and load the tube. Auto holding,no need to adjust concentricity

Up and down Adjustable supporting system

Easy tube Changing,Saving loading time,Less tube swinging;Guarantee Concentricity,Easier loading,Avoid Swinging,Auto lifting,Auto loading module optional

Technical Parameters

Model Number	P2060A	P3080A	P30120
Tube length	6000mm	8000mm	12000mm
Tube diameter	20-200mm	20-300mm	20-300mm
Laser source	IPG /N -light fiber laser resonator
Laser head	Raytools laser cutting head
Servo Motor	4 servo motors for all axial movements
Laser source power	700w / 1000w / 2000w / 3000w
Position accuracy	±0.03mm
Repeat position accuracy	±0.01mm
Maximum position speed	70m/min
Acceleration	1G
Cutting speed	depend on material, laser source power
Electric power supply	AC380V 50/60Hz

Machine Applications

Fiber Laser Tube Cutting Machine Applicable Materials

Stainless steel,carbon steel,mild steel,aluminum,brass,copper,alloy metal materials etc.

Laser Pipe Cutting Machine Applicable Industries

®Furniture
Chairs, Metal Tables legs, Chair legs,Cots, Cabinet, TV Stands, TV Antennas,Doors,stainless steel table legs, Bed Frames
®Automobile
Handle Bar,Steering Column,Main Beam,Bottom Chassis…
®Transformer
Elliptical and Round Cooling Tubes
®Construction
Scaffoldings & Supporting pipes
®Bicycle
Handle Bar, Top Tube, Bottom Tube, Down Tube, Chain Stay, Back Stay, Stem Tube, Pedail Tube, Seat Pillar, Fork Blade.
®General Engineering
Bus body structures, main beam for pedestal lfans,textile,Frames…
® Oil Industry
Perforating gun tube

® Medical Device

® Fire Control

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal,SS,MS,CS,Aluminum,Brass,Copper,Galvanized steel
Cutting Thickness: 0-20mm
Cutting Area: tube length 6m,8m,tube diameter 20-300mm
Cutting Speed: 70m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut / Germany PA HI8000
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: P2060A / P3080A / P30120A
Certification: CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Laser source power: 700w / 1000w / 2000w / 3000w
Tube length:6000mm/8000mm/12000mm
Tube diameter: 20mm-300mm
Laser source: IPG / N-light fiber laser resonator
Laser head: Raytools laser cutting head
Servo Motor: 4 servo motors for all axial movements
Position accuracy: ±0.03mm
Repeat position accuracy: ±0.01mm
Acceleration: 1G
Electric power supply: AC380V 50/60Hz
