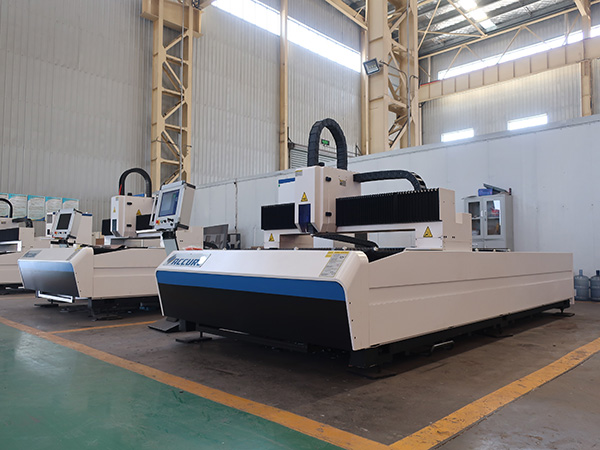

cnc fiber meta laser cutting machine

500w 1000w Fiber laser cutter engraving metal for stainless steel on sale , Steel 2000 watt cutting machine for export fiber laser metal cutting machine 500 watt Stainless Steel Fiber Laser Cutting Machine stainless steel laser cutter machine cnc fiber metal laser cutting machine

Machine table Features

---

1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2,The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.

4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware,precision machinery,auto parts,elevator,nameplate,advertisement,electronics,toys and other industries. Fiber laser Machine 500W Cutting Metals price with 5 years warranty stainless steel laser cutter machine 500W 1000W 3000W

cnc fiber metal laser cutting machine 1325 1530 2040 2060

Technical Specifications, we can also make model according to customer request

---

Max process height(mm)		90
Effective stroke	X axis(mm)	4550	3050	4050
	Y axis(mm)	1550	1550	2050
	Z axis(mm)	100
Position accuracy	X axis(mm/m)	0.03
	Y axis(mm/m)	0.03
	Z axis(mm/m)	0.01
Repeated accuracy	X axis(mm)	0.02
	Y axis(mm)	0.02
	Z axis(mm)	0.005
Fast positioning Speed	X axis(m/min)	80
	Y axis(m/min)	80
	Z axis(m/min)	30
Max cutting speed		30m/min
Max cutting thickness		depends on laser power
Power consumption		depends on laser power
Protection level		IP54
Machine weight (Ton)		4.9	4.5	5.3
Size L*W*H(mm)		5820*2285*1346	4516*2220*1346	5628*2950*1346

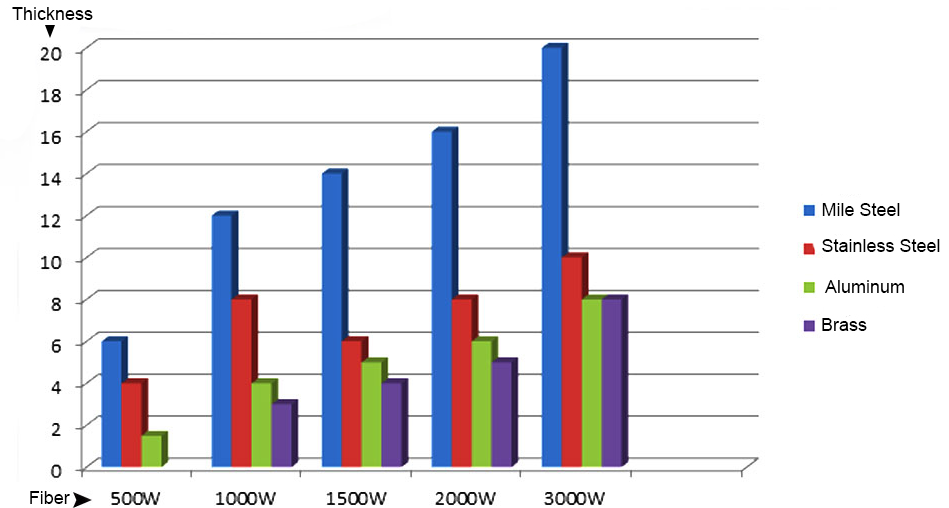

Cutting thickness chart:

---

Our Services

---

(1) Two year quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.
(2) Lifetime maintenance free of charge.
(3) Free training course at our plant. CNC automatic pallet double drive option fiber laser cutter
(4) 18 hours on line service each day, free technical support.
(5) Machine has been adjusted before delivery.We will take machine photos and make
machine working image for you ,after gettingyour agreement ,then we will book a ship.
(6) Providing technical services to the door(We have professional engineers to offer machine
installation commissioning and maintenance).
(7) If you have any problem during your use.you need our technician to judge where the
problem is and help you to solve it. We can provide team viewer and skype with cam till
all of your problems solved.

FAQ

---

FAQ

Q1. Trade company or manufacturer?

A: We Accurl laser are manufacturer, welcome to visit our factory!

Q2. Is it easy to operate for the new user ?
A: It is very easy ,we offer you operating video ,also our aftermarket technician can help you via Wechat,Whatsapp ,Skype teamviewer etc.

Q3. What should I do when the machine is in trouble?
A: Make sure all the wires be connecting well ,and keep your lens and mirrors clean(only for Yag laser cutting machine) ,then check your laser tube and share details with us.

Q4: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic graphic design software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.

Q5: Is it harmful to human body when in operation ?
A: It is not harmful, as long as the laser won’t shoot the skin and eyes directly. 500 watt Stainless Steel Fiber Laser Cutting Machine

In order to provide a better offer for you, please let me know your requirements as below:

1) What's the materials you want to cut ?
2) The thickness of each cutting materials? max/usual thickness.
3) What's the size of metal you want to cut ?
4) What is the final products ?
5) Are you end user or machine distributor?

---
