cnc laser metal cutting machine , cnc laser cutter engraver machine

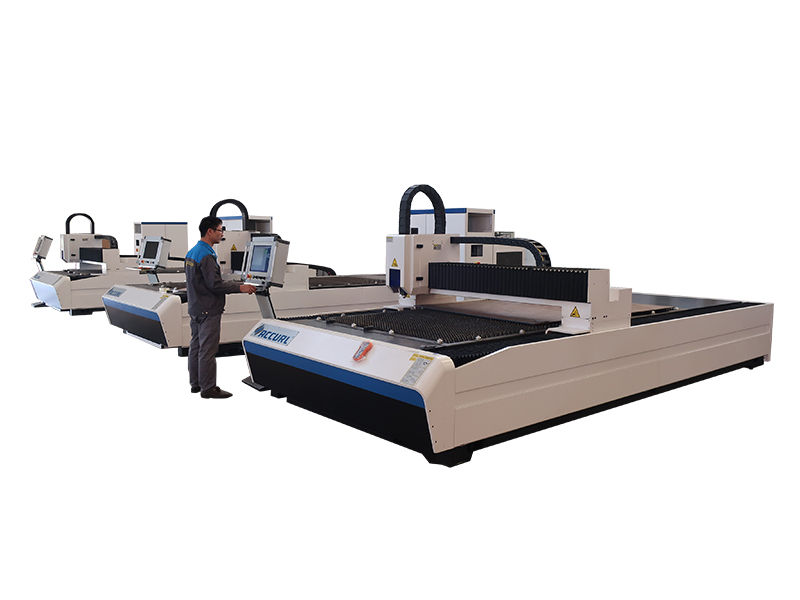

laser metal cutting machine

Detailed Product Description

Model Number:	ECO-FIBER-1530-3000W ACCURL	Working Range:	1500x3000mm
Laser Type:	China Raycus Fiber YLS-3000w	Linear Guide:	Taiwan HIWIN
Reduction Gears:	French MOTOREDUCER	Transmission:	Taiwan YYC Gear And Rack
Table-driven System:	Japanese Yaskawa Servo Motor & Driving System	Keywords:	Portable Laser Metal Cutting Machine

Product Introduction

The ACCURL Fiber Lasers bring a cost effective, low-maintenance, low operating cost and environmentally friendly solution to your organization. Our cnc laser metal cutting machine provide quality cutting and tolerances with minimal productivity loss between jobs, equating to a higher return on investment.

• Manufactured by people who use their own machines

• Laser beam transmitted through a fiber optic cable rather than with mirrors and channel tubing resulting in negligible power loss.

• The laser light source has a life expectancy of more than three times that of an equivalent CO2 laser.

• Higher cutting speeds possible

• Dual interchangeable tables allow for faster loading and unloading, reducing downtime

• Laser wavelength is one-tenth of a CO2 laser

• Reduction in cutting variables or tribal knowledge

• Fiber Laser is extremely efficient, equates to very low power consumption

• Low cost of operation, reduced energy cost, no laser gases required to produce beam

• High cutting flexibility (Steel, Stainless Steel, Brass, Copper, Titanium, Aluminum, and more)

• Very few consumables

STANDARD EQUIPMENT

• Stress relieved laser machine frame

• Auto-changing dual pallet system

• Light source

• Chiller

• Radan or Lantek CAD/CAM system

• Precision Rack & Pinion Drive System (Made in Germany)

• 3 lower protective lenses

• 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

• 3 Ceramic Nozzle Adapters

• Auto-calibrated nozzle system

• Lens with 5.9” Focus Length

• Smart Slag Collection System/ Chip Conveyor

• Fiber Beam Transmission System (Fiber Cable)

• Operates with both N2 and O2 (cutting) gases

• Home Position Alignment System

• Auxiliary Gas Selector

• Auxiliary Gas Pressure NC function

• Auto Reflection Warning

• Working Lights

• Warning Indicator Lamps

• Lens Cleaning Kit

• Removal and Adjustment Tools

• Ground Plates

• User Manuals in English

OPTIONAL EQUIPMENT

• Linear Drive

• Dust Collection Unit

• Additional Operator Glasses

• Lens with 7.874” Focus Length

• Sheet loading & unloading systems

• Automation & Storage systems

• Automatic Nozzle Changer

• Custom table sizes

• Up to 6 kW laser laser light sources

• Light safety barrier

• Air conditioner for electrical panel

• Metalix, Almacam etc. CAD/CAM software

• LCM (laser cut monitor) sensor for pierce detection and cut loss control

CUTTING HEAD

• The laser beam is delivered to the cutting head by fiber optic cable.

• The fiber optic cable is fixed to the input of cutting head.

• The laser is delivered to the focusing unit after being aligned in the collimator.

• The laser beam is set to desired focus using the lenses in the focusing unit.

• The protection glass protects the lenses from the particles which are caused by the cutting operation.

• The sensor insert is part of the elevation control system and helps to adjust the distance between material and cutting head.

• Elevation control is checked with the most precise sensors in the market. This helps to produce better cuts.

• The main function of the ceramic is to protect the cutting head.

• The nozzle is used to control the assist gases. It is also a part of the capacitive control system.

Configuration of Laser cutting machine

Mechanical platform: the cover, rails, base, composed of reflective frames and other mechanical parts;

Drivetrain: four balanced by the three imported high-precision linear guide, three high-precision ball screw, belt, three stepper motors and several gears;

Auxiliary systems: There are circulating cooling water pump, blowing compressors, smokeexhaust fan;

Optical system: a laser tube, laser power supply, three metal reflection mirrors and a focusing head component.

Advantages of fiber laser metal cutting machine

(1) fiber laser - The high light conversion efficiency, conversion efficiency of over 30%, with little power fiber lasers without chillers, air-cooled, can greatly save power at work, savings in operating costs, the highest productivity;

(2) lasers running power, without generating additional gas laser having the lowest operating and maintenance costs;

(3) Fiber laser using semiconductor modular and redundant design, resonant cavity without optical lenses, no start-up time, with adjustment-free, maintenance-free, high stability advantages, reducing parts cost and maintenance time, which is unmatchd by conventional lasers ;

(4) fiber laser output wavelength of 1.06 microns, is CO2 1/10 wavelength, beam quality output, high power density, is very conducive to the absorption of metallic materials, with excellent cutting and welding capability, so that The minimum cost of processing;

(5) the entire laser cutting machine optical fiber transmission route, and so no complex mirror optical system, the light path is simple, stable structure, external light path maintenance-free;

(6) cutting head contains a protective glass, so valuable and so rarely focusing mirror

consumables consumption;

(7) by exporting fiber optic light, so that the design of the mechanical system becomes very simple and very easy to integrate with a robot or a multi-dimensional table;

(8) laser plus shutter You can post a Multi machine, via fiber optic splitter, split into multiple simultaneously multiple, easy to expand functionality, easy to upgrade.
