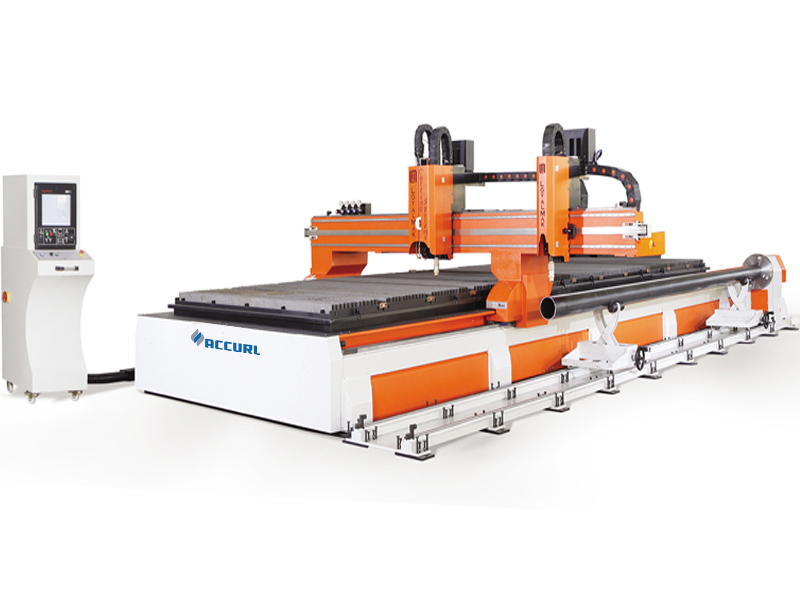

cnc pipe profiling and plate cutting machine 3 axis

pipe profile cutting machine

Product Description

This machine is an automatic calculation and cutting equipment used for the steel tube end juncture. The machine can be widely used in construction, chemical industry, machinery, metallurgical industry and other industries, for pipe structural parts cutting processing. In these industries there is a large number of pipe junction, intersecting line hole, intersecting line end, also bend commonly known as "shrimp knob", such processing mostly uses template making, lineation, manual lofting, manual cutting, manual polishing and other backward and complicated ways. While this machine can expediently cut such work piece, and the operator does not need to calculate and manual program, only to input the parameters such as pipe’s radius and intersection angle, the machine can automatically cut tube’s intersecting line, intersecting hole and the welding groove.

Product Features

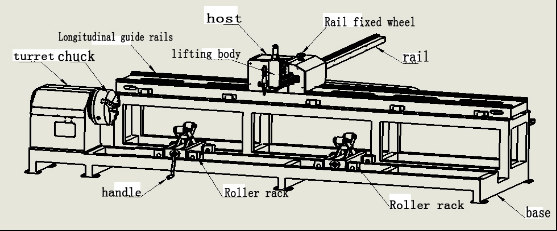

The outline of XG-300J CNC pipe profiling and plate cutting machine

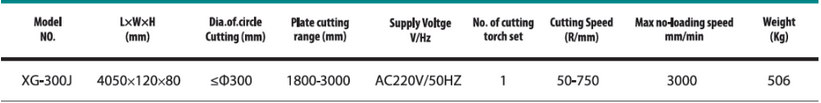

Quick Details

Condition: New, New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: XG-300J
Voltage: 220V/380V/110V
Rated Power: -
Dimension(L*W*H):3.5*2.6*0.4M
Weight: 175KG
Certification: CE
Warranty: 1 year, 1year
After-sales Service Provided: Engineers available to service machinery overseas
Traveling speed: 3000mm/min
Machine type: XG-300J
Color: Silver and red
Cutting material: Metal Stainless Steel Carbon Steel Aluminum
Application: Industrial Metal Cutting
Cutting mode: Plasma Cutting+ Flame Cutting
Cutting thickness: 0-200mm
