cnc plasma cutter plasma cutting machine from manufacturer cnc router

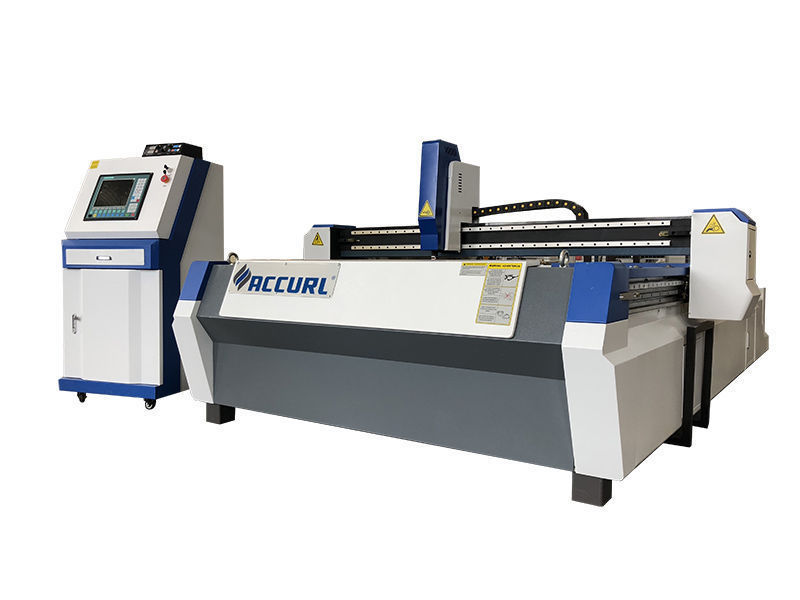

cnc plasma cutting machine manufacturers

Features of Cnc plasma Cutter

Fast cutting speed,high precision and low cost.
With firm and reasonable structure,the machine is easy to operate and durable for use.
The cutting incision is thin and tidily and can avoid the second processing.
High configurated CNC system,auto arc-striking and stable performance.
Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software).
It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional).
Start control system and Start THC device.

Parameters of Cnc plasma Cutter

Voltage: 380V 3pH 50/60Hz
Weight: 150kg
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Processing Thickness: 0.5-22mm
Worktable: Blade Worktable or Swatooth
Place of Origin: Shandong, China (Mainland)
Rated Power: 8.5kw
Certification: CE, ISO, CIQ
Product: CNC Plasma Cutter
Transport Package: Standard Export Wooden Case
Specification: CE, ISO, SGS

Name Specification
Working Area(X*Y) 1300×2500mm
Frame Square tube Integral guide
X Y Z Rail Taiwan HIWIN Linear guide
Transmission X/Y rack and pinion,Z Taiwan TBI Ball Screw
Motor driver Stepper Motor driver
Control System DSP/START
Cutting Thickness 3mm-30mm stainless steel
Plasma Power Supply 63A/100A/160A/200A
Working Speed 8000mm/min
Working Voltage 380V,3PH,50/60HZ
Software ArtCAM/Type 3/Ucancam

Application Field of Cnc plasma cutter

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold,
silver, etc
Application Industry:Sheet metal, kitchenware, components, decorations industry
