Product Description

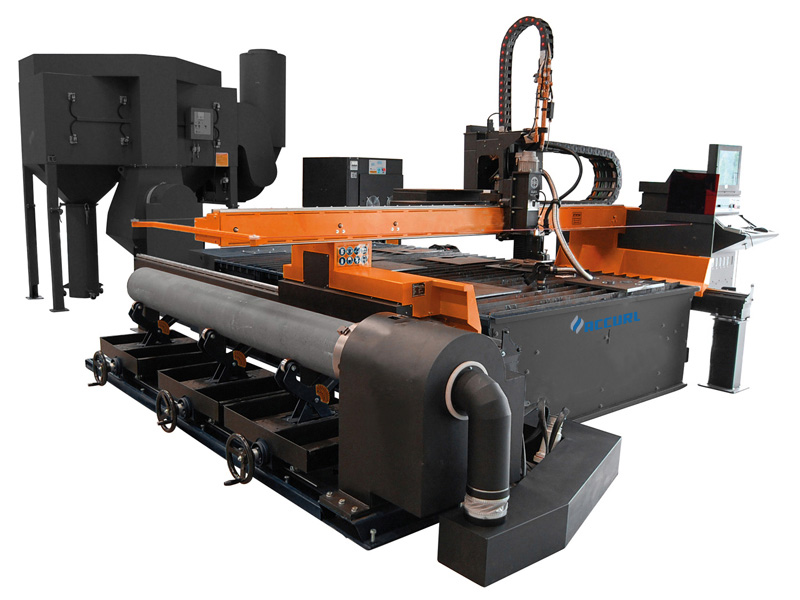

CNC Plasma cutting table
This series of cutting machine is of gantry structure. All the structure members are annealed, shot-blasted integrally and painted. Guide-rails on the frame are treated with high-frequency quenching, then ground and paneled together.
The advantage is: Good rigidity, high precision, stable structure and so on. Linear triple-torch, infinite-revolving triple torch and plasma torch can be equipped based on customer requirement. Torch elevation unit is adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hanging-type or drag-chain type.
Main technical parameter
Specification | DTCN-4000 | DTCN-4500 | DTCN-5000 | DTCN-5500 | DTCN-6000 |
Rail distance | 4000 mm | 4500 mm | 5000 mm | 5500 mm | 6000 mm |
Cutting width | 3200 mm | 3700 mm | 4200 mm | 4700 mm | 5200 mm |
Rail length | 15000 mm (can be designed as required) | ||||
Valid cutting length | 12500 mm (can be designed as required) | ||||
Cutting speed | 50-1000 mm/min(no grade timing ) | ||||
Back speed | 6000 mm/min | ||||
Cutting thickness | 6-100 mm(Single cutting torch 100mm) | ||||
Cutting precision | ±0.5 m/m | ||||
Roughness of surface | Ra12.5-25 | ||||
Cutting gas source | Oxygen and Acetylene or propane | ||||
Power | Three phase 380V±10%,50Hz,3KVA |
Our services:
1,Customer first
2,Sincere cooperation
3,Mutually beneficial
4,Joint development
FAQ:
1,Customer:Can your machines be customized?
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
3,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
up to the destination.
4,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
Basic Info
Model NO.: DTCN
Layout: Vertical
Automatic Grade: Automatic
Cutting Mode: Plasma Cutting
Color: as Per Customers′ Requirements
Export Markets: Global
Cutting Speed: 50-1000 mm/Min(No Grade Timing )
Cutting Thickness: 6-100 mm(Single Cutting Torch 100mm)
Product Name: CNC Plasma Cutting Table
Transport Package: Wooden /Container
Origin: Anhui, China
Customized: Customized
Cutting Material: Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Power Source: Electric
Optional: Foot Switch, Chuck
Delivery Time: Timely
Voltage: as Per Customers′ Requirements
Back Speed: 6000 mm/Min
Cutting Precision: ±0.5 M/M
Trademark: ACCURL
Specification: CE, ISO
HS Code: 84688000
