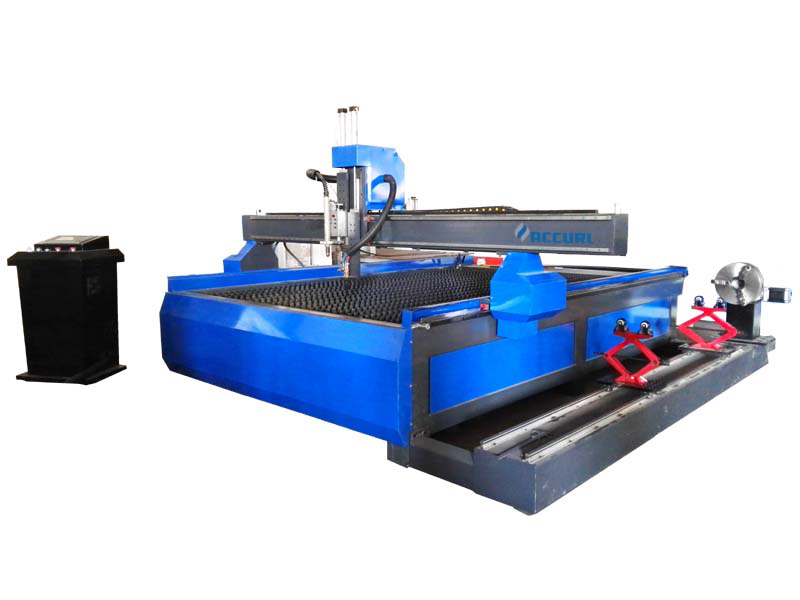

cnc plasma machine cutting metal tube 1325

Product Description

---

Cnc plasma machine cutting metal tube 1325

Plama cutting metal tube Features

1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.

2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.

3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy
good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.

4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.

5. Cutting speed, high accuracy and low cost.

6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.

7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated
file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk
exchange control system processing files, easy to operate.

8. Plasma torch power supply and supporting all famous brands, a number of national patents by the
manufacturers.

Plasma cutting metal tube Technical parameter

---

Model Parameter	cnc plasma cutting machine
Model	DEK-1325P	DEK-1530P	DEK-2040P
Working size	1300*2500mm	1500*3000mm	2000*4000mm
Three axes Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Transmission system	X,Y Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack Z the arc voltage control
Max. cutting speed	15000mm/min
Working voltage	AC380/50HZ
Control system	Beijing START plasma cutting system Standard high sensitivity arc voltage device
Software support	FASTCAM,AutoCAD,
Instruction format	G code
Drive system	Stepper motor (Optional Taiwan AC servo motor)
Plasma power	Domestic Huayuan 63A-200A Imported US Powermax 63A-200A
Power cutting ability	Domestic Huayuan 0.5-30mm US Powermax series 0.5-50mm
Working pressure	0.65-0.7Mpa

Plasma cutting metal tube applications industry:

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge
Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection
equipment,ect.

Plasma cutting metal tube applications Materials:

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

After service of plasma cutting metal tube

1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery.

7.Our staff can be sent to your company to install or adjust if necessary.

RFQ

1.How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.

2. if the machine problems, how do you provide service?
First of all, we will immediately begin to give you solve the problem, if need to staff in the past to help solve, our stone carving machine after-sales staff will arrive within 3 working days (according to the distance).

3.how do you do what stone carving tools, how to get enough.
CNC engraving need cutting tools, we generally do not directly provide, we will call you from A partner, ordering tool directly by you. We try not to do, in order to reduce misunderstanding

4.If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed.

5.how long does it take to machine a square meters relief?
Engraving machine working efficiency and the complexity of the design, processing depth, material processing and ease. So bad time estimates, carved in our company sample page with related practical sampling data for your reference.

---
