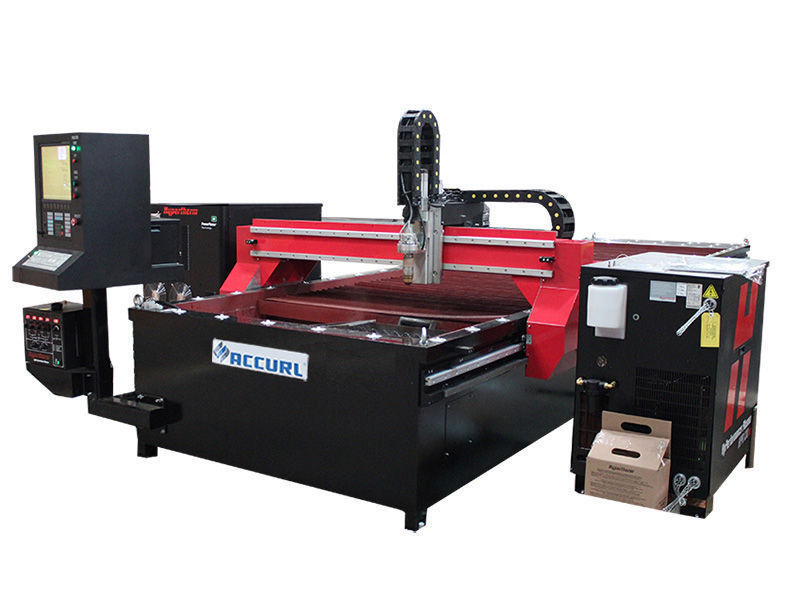

Feature
1. All welded as seamless steel structure. Steady structure and long life time
2. High configuration, with Taiwan HIWIN square guide rails, high cutting speed and precision.
3. DSP or START control system
4. China made plasma power , of course, if you need, also can be optional America Hyperthern plasma power.
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
7.With exporting plywood package
Technical parameters
Working Area: 2000*4000mm
Plasma Power: 60/80/100/120/160/200A
Motor: Stepper Motor
Table: Aluminum Knife Table
Control System: Starfire Control System with Thc
Delivery Time: 10 Working Days
Warranty: 1 Year
Package: Exporting Pallet Package
Keywords: Plasma Cutting Machine
Transport Package: Exporting Plywood Package
Specification: CE. SGS
HS Code: 8456401000
specification | 1325 /1530 model |
Processing area | 1300mm*2500mm (1500*3000mm) |
Processing material | Iron plate, aluminum, galvanized sheet steel, titanium plates, white and sheet metal |
Processing thickness | 0.5-15mm |
Cutting speed | 0-8000mm/min |
power | 8.5KW |
Input voltage | 380V |
Power frequency | 50Hz |
Plasma current | 60A-200A |
Control system | START control system with THC |
Work mode | Non-contact arc starting |
Application
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Optional:
1, Different working size:1300X2500MM /1500X3000MM or other sizes according to customers' needs
2, Servo motors and drivers
3, Different power: 65A /100A /200A for different thickness cutting, also can be optional America Hyperthern plasma power.
4, Thin board, you also can choose DSP control system without THC, then the machine will be cheaper, But it's best to cut board 0-3mm.
