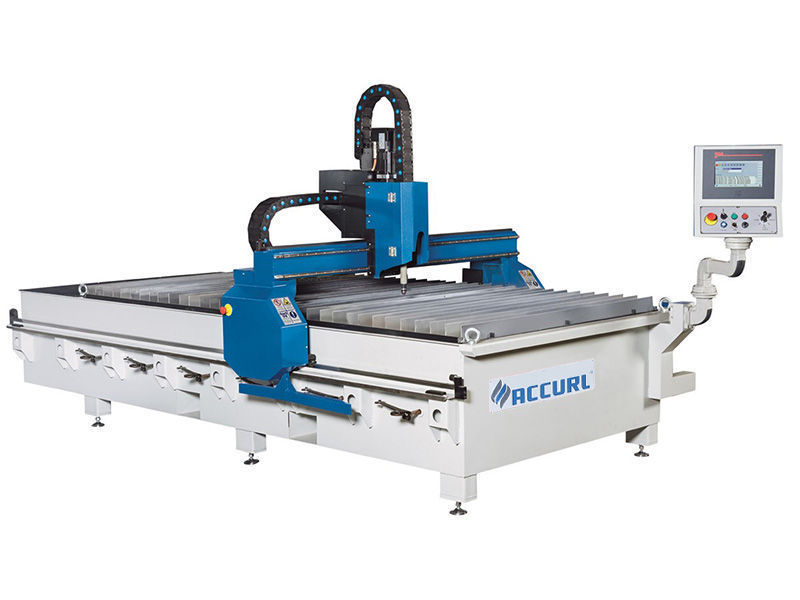

easy operation gantry cnc high definition plasma cutting machine

cnc plasma cutting machine operator

Main Features

1.Torch height control compatible with air drive and motor drive modes, users can choose air drive mode if plasma cutting. It can adjust efficiently the distance between torch and steel plate,which best for thin plate cutting.
2.Both X and Y transmission adopt ball screw, realized high speed plasma cutting and rised cutting quality.
3.Cutting table use water storage structure, which can dedust and cool steel plates, prevent steel plates distrotion during cutting.
4.CNC controller can be all round and multi-angle revolved, convinient to operate and monitor cutting process.
5. The CNC controller can be placed any position.Only one cable between CNC controller and work table to transfer data and control cutting.

Quick Details

Condition: New
Voltage: 220V/380V
Rated Power: 1kw
Dimension(L*W*H): 3300*2270*1600mm
Weight: 600KG
Certification: CE ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
structure: gantry ,table cutting machine
Plasma cutting thickness: Plasma Power Source Capacity
Cutting table: supply
Cutting mode: Plasma Cutting only
Dust collection system: according to the customer request
Controller screen size: 10 inch
File transmission mode: USB
Application: cut thin metal cutting machine

Product Application

New table type CNC cutting machine, features compact size, light weight, flexible and stable running.

Item	Parameter
Structure	Table type, Dual drive
Drive	Hybrid servo motors
Cutting Material	Mild steel, Stainless steel, Aluminum alloy
Max cutting width	1250mm, can be customized
Max cutting length	1250mm,can be customized
Torch No.	1 plasma source
Torch Height Control	Air drive/Motor drive
Speed Regulation	0-24000mm/min
File transmission	USB
Plasma cutting thickness	depend on plasma source capacity
Plasma supply	supply all kinds of plasma source

Machine Parts

Name:Longitudinal ball screw

Feature:
CNC controller can be all round and multi-angle revolved, convinient to operate and monitor cutting process.
The CNC controller can be placed any position.Only one cable between CNC controller and work table to transfer data and control cutting.

Name: Air / Motor drive torch height control

Feature:
Torch height control compatible with air drive and motor drive modes, users can choose air drive mode if plasma cutting. It can adjust efficiently the distance between torch and steel plate,which best for thin plate cutting.

Name: Longitudinal ball screw

Feature:
Both X and Y transmission adopt ball screw, realized high speed plasma cutting and rised cutting quality.

Name: cutting table

Feature:
Cutting table use water storage structure, which can dedust and cool steel plates, prevent steel plates distrotion during cutting.
