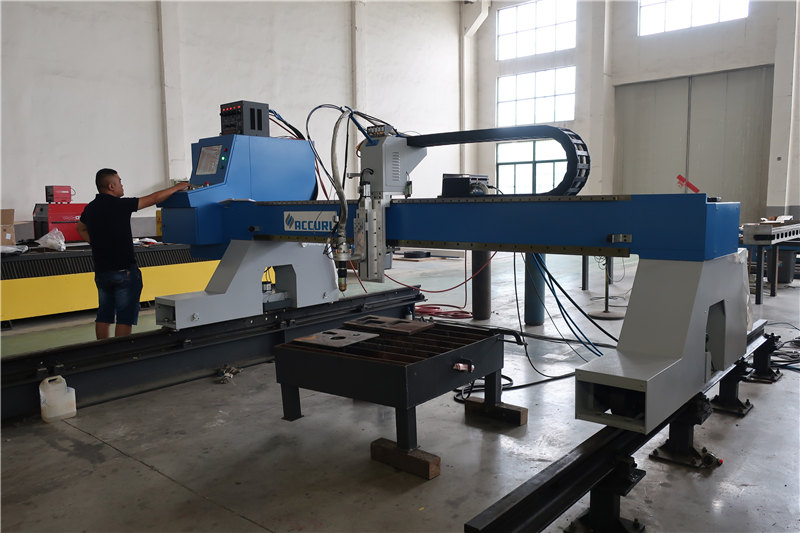

gantry type cnc plasma/flame cutting machine for sale

Feature

---

(1) Install easily
(2) Two cutting ways: flame or plasma.
(3) It is a high-efficiency, high-precision and high reliability cnc cutting equipment
(4) Double-side driving servo system, guarantees an excellent running performance.
(5) Optional dust proof work table or smoke removing device for a clean working environment.
(6) Optional plasma power for different materials cutting.

Parameters

---

Model No.	15/1830	15/1840
Cutting width(mm)	1500/1800	1500/1800
machine width(mm)	2000/2200	2000/2200
Cutting length(mm)	3000	4000
Machine length(mm)	4620	5620
CNC system	Hypertherm or China brand
Cutting thickness	depends on plasma power
Cutting worktable	Normal or dust proof work table

Mechanical Accuracy

1. Installation accuracy of guide rail:
1) Straightness accuracy of main rail           ±0.2mm/10m
2) levelness between two rails           ±0.5mm/10m
3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length
4) Parallelism between two rails        <±2mm/ rail space

2. Machine precision:
a. Longitudinal effective stroke    >nominal size 20mm
b. Transverse effective stroke       > nominal size 10mm
c. Linear positioning accuracy   ±0.1mm/10m

(1000×1000mm Comprehensive graphics detection)   GB deviation≤±0.3mm
d. Linear repeat accuracy                 ±0.4mm/10m
e. Torch stroke                              ≤170mm
f. Cutting speed                 ±5% of setting speed
g. Automatic lifting precision                   ±0.5mm

3. Comprehensive machine precision:
a. Length deviation(four sides)              0.3mm
b. Diagonal deviation                   0.3mm
c. Back to the origin of the deviation                 0.2mm
d. Diagonal straightness accuracy                  0.3mm
e. Intersection deviation                       0.3mm
f. Linear deviations                           0.2mm
g. Entire machine positioner precision                0.1mm

After-sale Service

---

♥ Warranty one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material

Basic Info
Name: CNC Cutting Machine
Condition: New
Dimension: 1500mm X 3000mm
Warranty: 1 Year
Program: Fastcam, Sigmanest
Voltage: 220V / 380V
Plasma Power: Kjellberg, Kaliburn, Hypertherm, Lgk
Drive Mode: Double Side Servo Motor
Certification: Ce & ISO
Trademark: ACCURL
Transport Package: Wooden Case
Specification: According to customer requirement
Origin: in China

---
