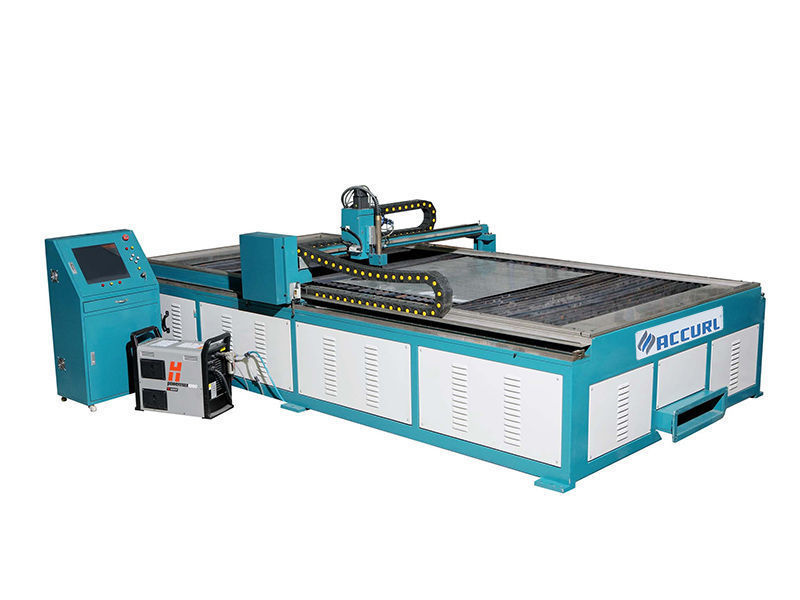

high definition cnc plasma cutting machine

high definition plasma cutting machine

Product's advantages:


1.Fast cutting speed,high precision and low cost.
2.With firm and reasonable structure.the machine is easy to operate and durable for use.
3.The cutting incision is thin and tidily and can avoid the second processing.
4.High configurated CNC system, auto arc-striking and stable performance.
5.Together with other advertising equipment, they form an advertisement producing line which completely solve the problem of traditional manual mode.
6.Can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional).
7.Support standard G code router files that made by software such as ARTCUT , CAXA ,ARTCAM and TYPE3.Converted by certain software,it can also read DXF file that out of AUTOCAD,The control system, adopting U flash disk to change the processing files,is easy andconvenient to operate.

Quick Details


Condition: New
Voltage: 50HZ, 380V,3 Phase
Rated Power: 7.5kw, 40A/45A/60A/63A/65A/85A/100A/120A/160A/200A/260A
Weight: 1000KG
Certification: CE ISO FDA
Warranty: Two Year
After-sales Service Provided: Engineers available to service machinery overseas
Color: red blue white
Rated power: 20KW
Cutting speed: 0-8000mm/s
Driving system: motor and driver
Working area: 600x900mm/1300x2500mm/1500x3000mm
File transfer: USB
Cutting accuracy: ≤0.1mm
Travelling speed: 0-50m/min

Technical parameter:


Working area

1300*2500mm1500*1300mmCustomizable
Cutting Thickness

(40A)0.5--10mm

(40A)0.5--10mm(40A)0.5--10mm
(120A)3-16mm(120A)3-16mm(120A)3-16mm
(200A)3-25mm(200A)3-25mm(200A)3-25mm
cutting speed0-8000mm/min0-8000mm/min0-8000mm/min
Moving Speed0-50000m/min0-50000m/min0-50000m/min
power8.5KW-10.5KW8.5KW-10.5KW8.5KW-10.5KW
Input Voltage3 Phase380V3 Phase380V3 Phase380V
Power Frequency50Hz50Hz50Hz
Files TransferUSBUSBUSB

Applicable industries:


Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military industrial,Wind power,Structural Steel,Boiler containers,Agriculture MachineryChassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,ect.

Applicable materials:


Aluminum,Copper,Titanium,Nickel,Iron,Galvanized sheet,White steel,Titanium plate,Carbon steel,Stainless steel,Alloy steel,Composite metal.

Our services:


1.Two years warranty for the whole machine.
2.Teach video and detailed manual sent with the machine.
3.24 hours online support.
4.Professional technical support
5.Free design and guide for customer
6.Free software update
7.We can supply the new machine parts or fix the old one.
