Descriptions
This optical fiber laser cutting machine is equipped with the most advanced international fiber laser, which can output high energy intensive laser beam and focus on the workpiece surface and make the workpieces melting dissolves and gasification and automatically cut through numerical control system. It is high technology equipment that is perfectly intergraded by the most advanced optical fiber laser technology, numerical control technology, precision machinery technology
Product Characteristics
This cutting machine can meet customer’s cutting requirements not only for the plate, and also the cutting of various kinds of pipes, such as round tubes and square pipes
The unique design of the clamp can successfully achieve the rapid adjustment of different pipe materials and ensure to process the high precision workpieces
Equipped with different professional tooling of clamps, specially used for different shapes and sizes of pipes and perfectly make precision processing.
Easily processing the usual square tube, round tube and rectangular tube
Technical parameters:
X/Y axis positioning accuracy: ±0.05mm/m
X/Y axis repositioning accuracy: ±0.03mm/m
X/Y axis maximum poisoning speed: 80m/min
Model | QG-CG-1530 | QG-CG-1540 | QG-CG-1560 | OptionMax. |
Max. Cutting Range | 1550mm x 3100mm | 1550mm x 4100mm | 1550mm x 6100mm | N/A |
Cutting Diameter for Tube | ≤ 160mm | ≤ 160mm | ≤ 160mm | N/A |
Cutting Thickness | ≤ 6mm | ≤ 6mm | ≤ 6mm | N/A |
CNC System | Cypcut | Cypcut | Cypcut | According to Demands |
Transmitting System | Gantry Dual Drive | Gantry Dual Drive | Gantry Dual Drive | According to Demands |
Max. Accelerating Speed | 1.5G | 1.5G | 1.5G | N/A |
Lifting Adjustment | Surface Following | Surface Following | Surface Following | N/A |
Mini. Line Width | 0.15mm | 0.15mm | 0.15mm | N/A |
laser Power | 1000W/2000W/3000W | 1000W/2000W/3000W | 1000W/2000W/3000W | N/A |

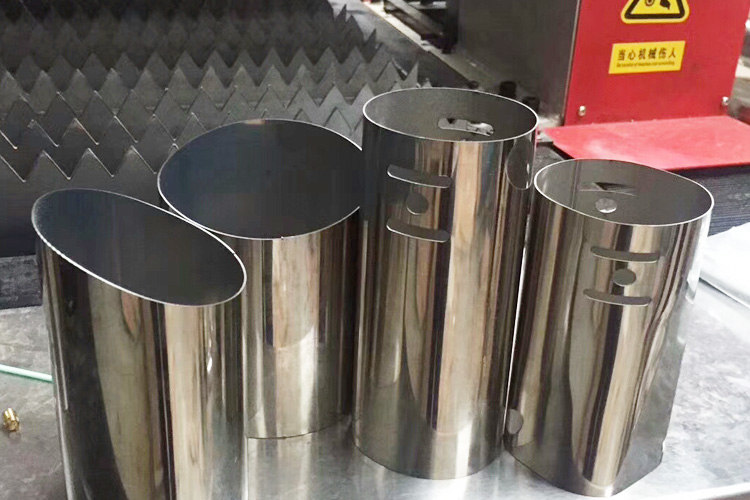

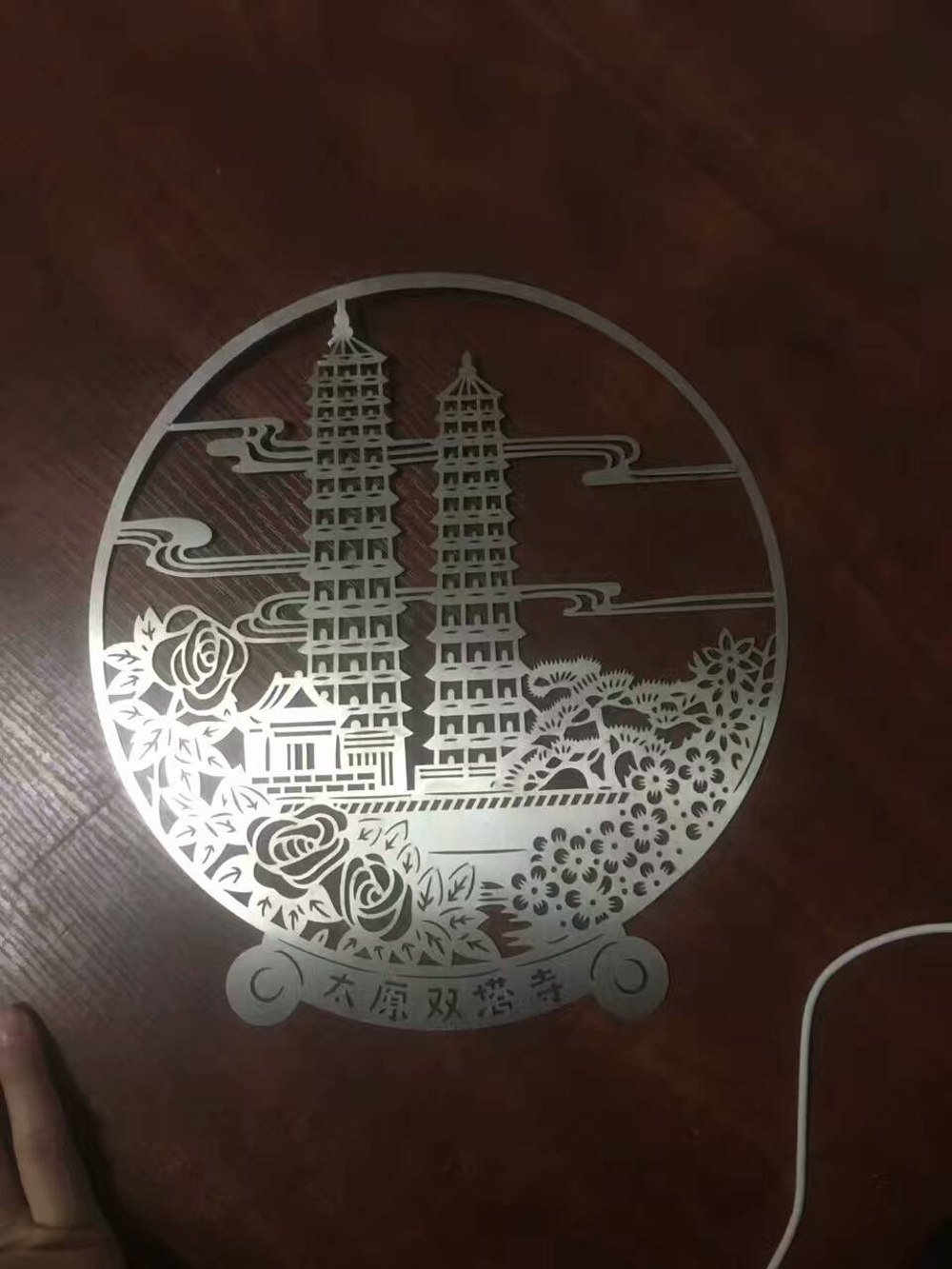

Cutting Samples
Packaging Details
Whole film packaging machine; Anti-collision package edge; Fumigation-free plywood wooden box with iron binding belt.
Delivery Time: 30 Work days
High Quality, is our paramount mission that we pursue and underpin lifeline of Qigo, and it is the most important factor to maintain long-term business relationships with customers.
Warranty and Service
1. Warranty for 1 years.
2. Maintenance free of charge for 1 years .
3. Provide the consumable parts at an agency price.
4. 24 hours online service, free technical support.
After-sales Service
Oversea after-sales service is available, our engineer is capable to travel abroad to provide installation and on-site training. Warranty period of our product is one year, free replacement of any faulty parts under warranty.
Quick Details
Application: Laser Cutting, plate and pipe
Condition: New
Laser Type:Fiber Laser
Applicable Material: Metal
Cutting Thickness:0-10mm
Cutting Area:3100mmx1550mm
Cutting Speed: 35m/min
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software: Cypcut
Graphic Format Supported:AI, DST, DWG, DXF, LAS, PLT
Place of Origin: Anhui, China (Mainland)
Brand Name:ACCURL
Certification:ISO
After-sales Service Provided: Engineers available to service machinery overseas
Economy: high efficient, lower investent, high economy output
Laser power: 1000W / 2000W / 3000W
Function: Cutting Metal Materials
