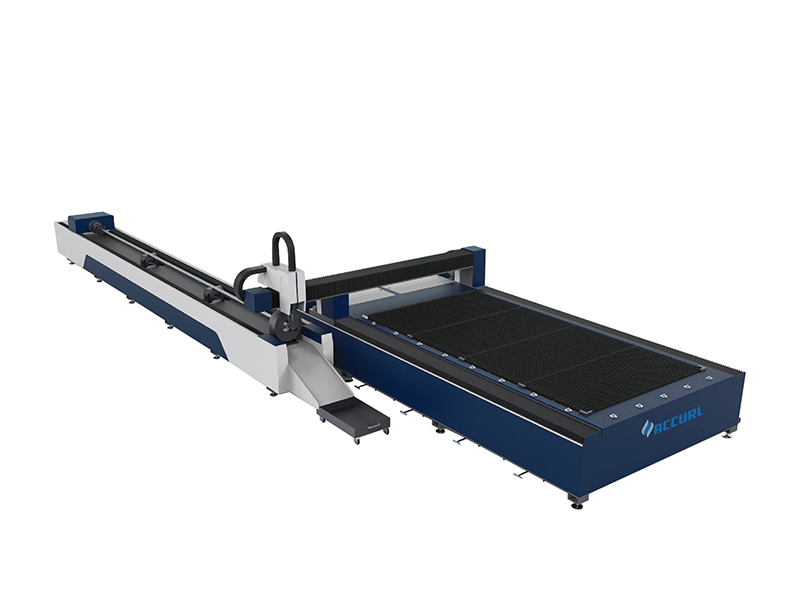

high quality industrial thin metal plate cutting cnc fiber laser cutting equipment

laser cutting equipment

Product Description

Product Application

Widely used for metal sheet processing, advertising trademark, advertising character,
high/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade,
electronic parts, eyeglasses, spring, circuit board, kettle, medical microelectronics, hard ware,
knives tool, measurement, instrument, etc.

Features

Advance double driving system structure, Dual driving force from high precision driving method.
Top standard gear, rack and guide rail, no need maintenance, high speed and efficiency.
Components from world famous suppliers, Panasonic,Yaskawa,YYC,Simens,Precite,etc.
Environmental working medium, screen out radiation harm. Ensure green and safer working circumstance.
Quality assurance, long warranty. various warranty plan for you to choose.
Professional and fast respond service mechanism, door to door after-sale service, free 24/7 online technical support and before-sale technical consultation.

Cutting samples

Laser cutting parts are high precised smooth processed and no need secondary processing which is promote your working effecticy and save the cost much.

Laser brand
SPI
Laser power
1000W
Working area
3000x1500mm
Cutting speed
25m/min
Cutting thickness

0.2-10mm mild steel,0-6mm stainless steel,

0-3mm Aluminum ,0-2mm Copper sheet,   0-3mm galvanized sheet
X Y axis Positioning accuracy
0.05mm/m
X Y axis Repeatability
0.03mm/m
Max moving speed
40m/min  max
CNC system
Shanghai  Lasercut
Max Table loading weight
1000KG
Gantry Machine sturcture
Honeybee
Cooling unit
China Brand
Laser head
America Laser Mech
Torch THC
China Brand
Servo system
1500W Panasonic Dual drive
Gear box
Japan Shimpo
Ball-screw & Linear guide
Taiwan Hiwin
Electronic control box
China Honeybee
Power
12KW

Detailed

Name: Laser head

Brand: Laser Mech

Original: America

Original from USA ,reliable quality

Name:Fiber Laser source
Brand: SPI 1000W
Original: United Kingdom
Record wall-plug efficiency
Excellent reliability
Excellent single mode beam quality
Negligible beam pointing
Stable beam quality in full power range
Direct modulation in kHz range
Very low cost

Name: Servo motor system
Brand:Panasonic
Original:Japan
Original from Janapan,world brand to make sure the reliable working ablity ,strong driving force, high effective

Name:Machine strcture
Brand: Honeybee
Original: China
8 mm - 20 mm steel, square steel frame is entirely welded (4tons), annealing, fine milling processing, 850 degrees high temperature thermal aging treatment, ensure in 20 years.
High frequency integrated circuit with constant temperature and constant humidity air conditioning to ensure equipment use longer and work more stable.

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-8mm
Cutting Area:3000x1500mm
Cutting Speed: 25m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software:Cypcut
Graphic Format Supported: DWG, DXF, DXP
Place of Origin:Anhui, China (Mainland)
Brand Name: ACCURL
Certification: CCC, CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: industrial thin metal plate cutting cnc fiber laser cutting equipment
Laser Brand: SPI
Laser power: 1000W(Option 300W/300W/700W/800W/1000W/2000W/6000W)
Cutting speed: 0-25m/min
Moving speed: 0-40m/min
