Deatails of our laser cutting machine
Parameters of laser cutting machine
Model Model | IGL -1325 Laser cutting machine |
Laser power | RECI 150w mix cut |
Laser type | Sealed co2 laser tube, 10.6um |
Cooling system | Water cooling |
Working Area | 1300mm(L)*2500mm(W) |
Net Weight | 1300Kg |
Driving System | stepper motor |
Engraving speed | 0-70000cm/min |
Cutting speed | 0-4500cm/min |
Power Supply | 220V/50Hz, 110V/60Hz |
Laser output control | 1-100 software setting |
Graphic Format Supported | PLT, DXF, BMP, JPG ,AI, CDR and so on |
Software Supported | Coreldraw, Photoshop, AutoCAD, Tajima |
Highest scanning precision | 2500DPI |
Operating Temperature | 0 - 45°C |
Color separation | Yes |
Laser Cutting Machine's Application
1.artcrafts: laser machine for wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
2.advertisement: double color board,acrylic engraving and cutting,label engraving,crystal etc.
3. model industry: sand table construction model,plane model etc.
4. packing:rubber engraving,plastic,doubling plate,die board cutting etc.
5. leather and cloth process:compound leather,man-made leather,fabric,fur ,toy etc.
6. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.

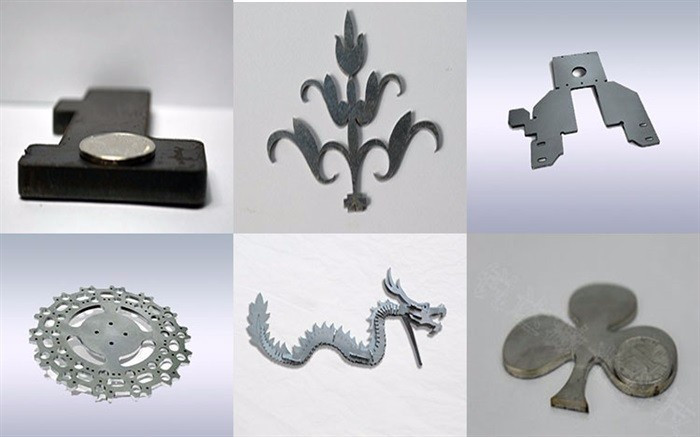

Laser Cutting Machine Samples
Packing for laser cutting machine
We can send laser cutting machine to your port or door address by sea or airplane.
Please kindly tell us your near port or address with postcode.
We have reliable shipping agent to insure the safe,convenient and timely delivery.
Our Services
1.Engineers available to service machinery overseas.This Laser Cutting Machine has been adjusted before delivery , operation disk was included.
2.Two year quality guaranty, the laser machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
3.Lifetime maintenance free of charge.Free training course at our plant. 24 hours on line service each day, free technical support for laser cutting machine.
4.We will provide the laser cutting machine's consumable parts at an agency price when you need replacement.
Quick Details
Application: Laser Cutting
Condition: New
Laser Type: CO2
Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Other
Cutting Thickness: Materials
Cutting Area: 1300*2500mm
Cutting Speed: 0-7000mm/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software:Taizhi control system
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin: Shandong, China (Mainland)
Brand Name: ACCURL
Certification: CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Working area: 1300*2500mm
laser tube: RECI 150w laser tube mix cut
Motor: Stepper
Transmission: Belt transmission
Guide rail:Taiwan HIWIN guide rails
Control system: Taizhi control system
Table: blade table
Graphic format supported: BMP, PLT,DST,DXF,AL
Software supported: CorelDraw, Photoshop, AutoCAD, Tajima
Max Engraving Speed: 0-7000mm/min
