hot sale fiber laser cutting machine for metal pipe profile cutting

Product Description

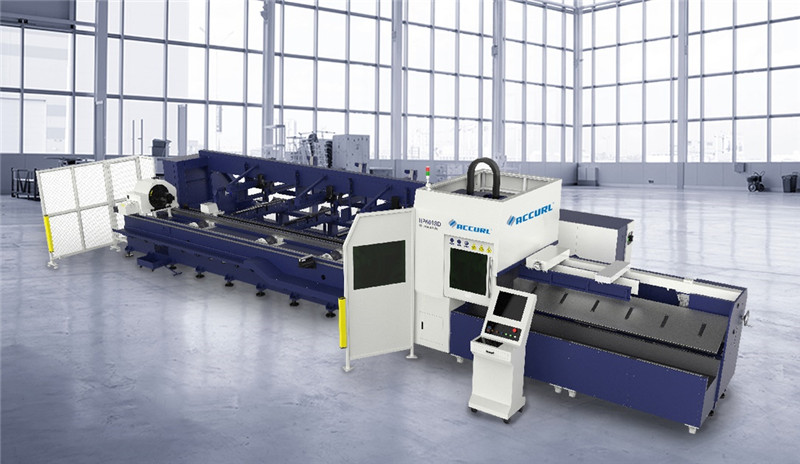

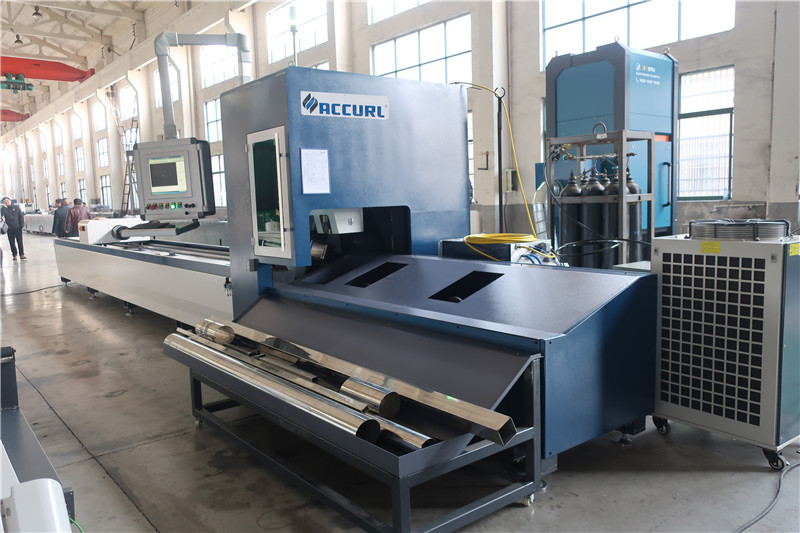

Tuber Laser Cutting Machine From ACCURL  Laser T-Series

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Product Application

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc.

Features

1. Design of double electric chucks and double servo motors， apply to cut tube as round ,square, Rectangular tube, oval tube, I-beam, etc.
2. Pneumatic rolling wheel supporting design to ensure the turning stability during cutting.
3. High-performance laser source and stable operating system that make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine can be used for cutting a variety of metals with excellent and stable cutting quality.
6. With a specialized CAD / CAM automatic programming software and automatic nesting software, it is possible to maximally g save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Japan YASKAWA servo motor

Satellite gears are double-supported on hardened and group shafts with full-complement needle bearings increasing torsional stiffness.

Japan NSK bearing

These bearing housings have square flange which can beeasily attached to a machine with four bolts. With it's simple mounting face, this bearing unit is widely used.

Japan SMC Pneumatic Components

Stepless control of air pressure proportional to an electrical signal.
Serial communications specifications.
Compact/lightweight (Integrated communication parts).

High definition display

.Equipped with a high definition display to bring a better use of the experience

ACCURL-Pro Operating System

ACCURL always fous on self-innovation. From October, 2017, Bodor has lauched a new operating system which more compatiable the machine, provide customers more better using experience.

Central automatic lubrication system for guideway

Electrical lubrication is a kind of Gear pump with rational construction , great performance , complete functions.
Controlled by main machine system which could inspect the liquid level of the oil tank, the pressure of oil transportation , and setting the lubrication periodicity.
Effective avoid rust and ensure the cutting accuracy .

Laser Source

Optical fiber transmission, don't need to adjust the laser path. IPG, Maxphotonics, nLight, Raycus fiber source.

Wavelength range:1070～1090nm
Beam quality TEM00 (M2<1.8)
Forced air/Water cooling
More than 100000 hours work-life of pumped diode

Auto focus Bodor Gen Laser Head

Optimization of the optical configuration Smooth and efficient air flow design. Rotary Knob focus adjustment. More easy and flexible. Adjust range 20mm, accuracy:0.05mm.

Drawer style mirror stand, changing protect glass faster and more easily. Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect.

All-Cast Machine Bed

More stable running performance.

More longer life than bending machine bed.

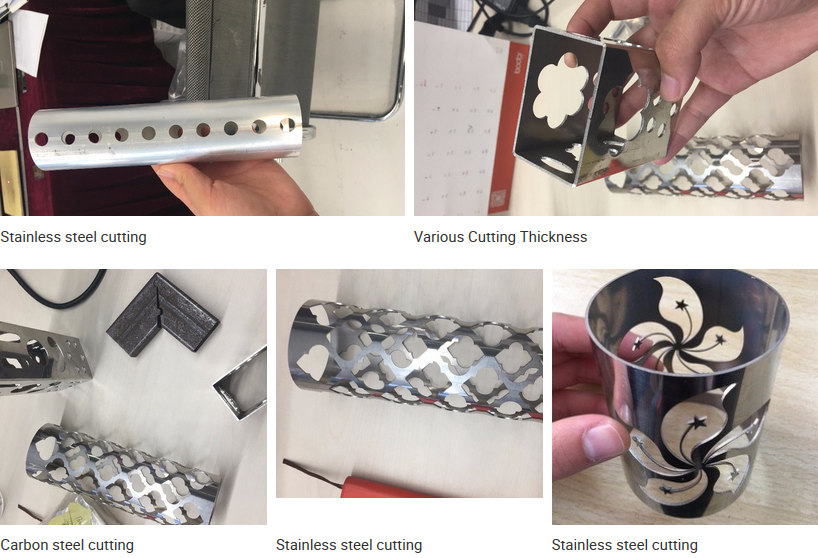

Samples show

Packing & Delivery
>> Our Package Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
