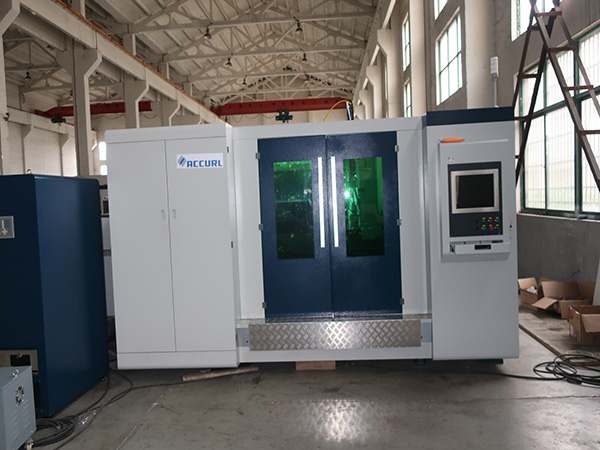

hot sale model 4000w fiber laser cutting machine

500w fiber 4000w fiber laser cutting machine advantage

---

(1) The fiber laser series are optic Laser’s metal precise laser equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, mild steel, aluminum, brass, etc.

(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

4000w fiber laser cutting machine parameter

---

Drive Feed Method	Ball Screw	Rack&Pinion with Rall Guides	Linear Drive
Working Area/Sheet size	3000mm x 1500mm	4000mm x 2000 mm	3000mm * 1500 mm
Z Axis Travel (max)	200/150mm	200/150mm	200/150mm
workpiece Weight (Max.)	450kgs	1500kgs	450kgs
Control Method	X-,Y-, and Z- axis controlled	X-,Y-, and Z- axis controlled	X-,Y-, and Z- axis controlled
	(Three axis simultaneously controlled)	(Three axis simultaneously controlled)	(Three axis simultaneously controlled)
Travel Method	X-Y : Optical travel	X-Y : Optical travel	Stationary table ,X,Y and Z- axis Movement for Cutting head
Positioning Speed(Max)
X-axis	40m/min	40m/min	150 m/min
Y-axis	40m/min	40m/min	150 m/min
Z-axis	15m/min	15m/min	15m/min
Positioning Accuracy	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm
Feed Rate	10m/min	10m/min	-----
	10m/min	10m/min	-----
Least Command Increment	0.001mm	0.001mm	-----
Repeatability	0.03mm	0.03mm	0.03mm
Acceleration	---	---	2G for X&Y
CNC Controller	siemens sinumeric810D	siemens sinumeric840D	siemens sinumeric840D
CNC Control Method	Fully closed loop method	Fully closed loop method	Fully closed loop method
Control Function	X-,Y- and Z- axis Controlled	X-,Y- and Z- axis Controlled	X-,Y- and Z- axis Controlled
	(simultaneously controlled)	(simultaneously controlled)	Laser Power Control
	Laser oscillator control	Laser oscillator control
Assist Gas Selector	Automatic selection	Automatic selection	Automatic selection
Electrical Requirement	AC, 3-Phases, 415 V, Complete system	AC, 3-Phases, 415 V, Complete system	400v, 3 phase ,60Hz
Total Weight	6500kgs	14500 kgs	11000 kgs
Input Methods	Manual data input with numeric keys	Manual data input with numeric keys	manual (MDI),Edit, RS-232 DNC, or 3 1/2* PC Compatible disk
	3.5" FD (built - in - type)	3.5" FD (built - in - type)	CD/DVD disk,USB,Ethernet PCMCIA
Operating Modes	Edit/Memory / MDI / Auto / Manual / teach	Edit/Memory / MDI / Auto / Manual / teach	Automatic and Manual
Display	10.4 " COLOUR TFT DISPLAY	10.4 " COLOUR TFT DISPLAY	10.4 " COLOUR TFT DISPLAY
I/O Interface	PROFIBUS	PROFIBUS	-----
DIaplayfunctions	Program directory	Program directory	Program Contents
	Subroutine directory	Subroutine directory	Position Information
	Position & Feed information	Position & Feed information	Program Check
	User cycle directory	User cycle directory	Setting
	Alarm messages	Alarm messages	Parameters
	Tool diameter compensation	Tool diameter compensation	Beam Diameter
	(Offset)	(Offset)	Compensation
	Program Simulation	Program Simulation	Assist Gas Status
	Diagnosis (CNC self diagnostics)	Diagnosis (CNC self diagnostics)	Self Diagnostics
Optional	Setting	Setting	Maintenance Reminders

Installation Service

Installation Services are available with all OPTIC LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.

Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

The whole set of machine guarantee is 1 year. We offer flexible extended warranties if needed.

Laser machines purchased from Golden Laser for installation and maintenance, we provide “1+6” complete services.

Standardization of Service “212"

2: response in 2 hours

1: provide solution in 1 day

2: solve complaint in 2 days

"1+6” Complete Services Specification

One Installation Service “one-time" OK

Six Complete Services

1. Machinery and circuit check

Explain the functions of machine parts and ensure machine’s long-term operation.

2. Operating guide

Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.

3. Machine maintenance Labels Laser Die Cutting Machine

Explain the maintenance of machine parts to extend product life and save the energy consumption

4. Product Process guide

Depending on different materials, do testing to get optimal processing parameters to ensure the best quality of products.

5. Site clean-up services

Clean the customer site when service is completed.

6. Customer evaluation

Customers give the relevant comments and rating about service and installation personnel.
