hypertherm edge pro cnc plasma cutting machine 3d cnc router machine

plasma cutting machine parts

Detailed Product Description


Model Number:GSII-L2060-PMAX-105APlasma Power:Hypertherm Powermax105 USA
Gantry Type:TableEffective Cutting Area(Length):1100 X 6100mm
Servo Motor:Standard Capacitys With HPR 800 XDKeywords:CNC Plasma Cutting Machine 3D

Product Description

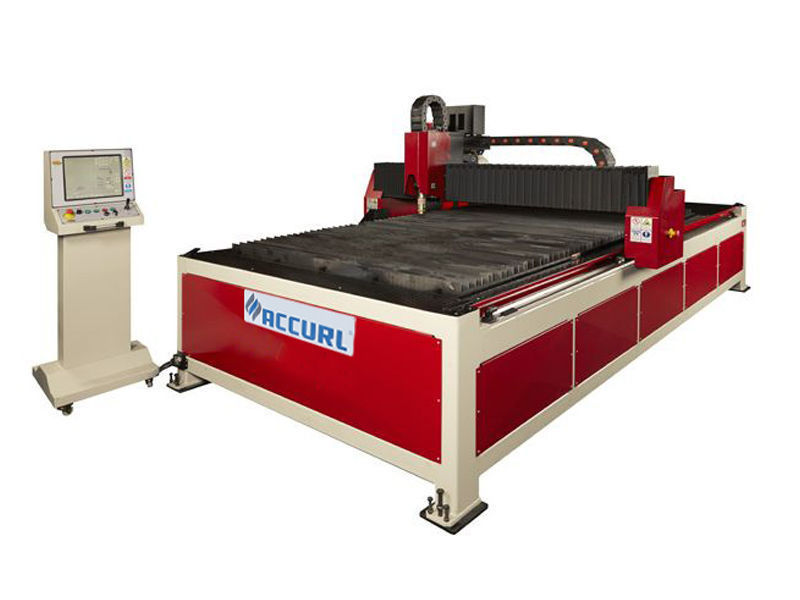

Plasma Cutting Machines has a double side gear drive and it’s designed with strong steel construction for positioning capability at high speeds. You will have a precise cutting ability at X-Y axis with linear guide ways and 30m/min speed. It has ability to maintain constant at the same height and the quality, with the Arc-THC control sensor.

1. Perfect parallel movement:

The correct positioning is assured by high-resolution encoders, directly mounted on the motors. The synchronised system of the two motors assures perfect parallel movement of the gantry over the linear guides. Cutting Table: dry sectionized downdraft or water table is separately from the rails.

2. Automatic height positioning:

The ACCURL's gantry can accommodate multiple stations such as plasma and/or oxy torches. Included is a MicroEDGE Pro CNC Control unit, monitoring the Z-axis (by brushless AC Servo motor) for the automatic height positioning of the torch during the cutting process.

During the cutting process, the MicroEDGE Pro CNC unit measures the Arc Voltage and adjusts the Z-axis height to maintain a constant distance from the sheet for optimum cutting results.

3. Correct cutting height:

Each oxy-fuel torch carrier has an automatic flame ignition for the torch, as well as an integrated capacitive sensor "Hypertherm OHC" that controls the Z-axis movement (by brushless AC Servo motor ) for correct setting of the cutting height.

Main Features


1. Beam adopts Q345B welded square steel tube structure with stress release by tempering,it has high intensity and rigidity.

2. After precision machining of the surface,the crossbeam has good rigidity and high precision and excellent heat dissipation.

3. The product is suitable for equipment with any kinds of CNC systems.

4. Hypertherm Edge Pro CNC

5. Portal extension

6. Tube Rotator for round pipes 30... 140 mm , Square pipes 20x20mm ... 100x100 mm

7. Movable drawer to collect parts and dross

8. Available with Hypertherm Powermax series, Maxpro200 series and HPRXD series plasma sources

9. True Hole technology (with HPRXD auto gas plasma source)

10. Fume extraction filter

STANDARD COMPONENTS


1. Portable monoblock construction with small footprint

2. Easy installation

3. Dual side AC servo Y motorization with direct planetary gear box, helical rack and pinion drive system

4. Precision Linear Rail Guide Ways in X and Y axis

5. High speed torch lifter with automatic arc voltage height control

6. Fully enclosed hose and cable carriers

7. Hypertherm Micro Edge Pro CNC

8. Integrated downdraft table with CNC programmable multi zone selection

9. Integrated dross bins

10. Magnetic Torch anti collision protection system

11. Laser pointer for plate alignment

12. CE safety specifications

Our Service


Pre-Sales Service

1. Technical solution.

2. Online video authentication machine work.

3. Cutting samples provided by DHL

After-Sales Service

4. Supplier will provide detail manual for software, hardware

and trouble shooting, also supplier should give necessary

guidance online if Buyer need. If it’s necessary, Buyer

should send regular his technical staff to Supplier for

technical training.



Applications


Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.

Metal Cutting Materials:

All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.

Technical specifications


Type2060
Product NameCNC Plasma Cutting Machine 3D
Table Width1600 mm
Table Lenght6100 mm
Height Under Torch150 mm
Machine Width2200 min-1
Machine Lenght7420 mm
Machine Height1710 mm
Table Height800 mm
X Axis Stroke1550 mm
Y Axis Stroke6050 mm
Weight4750 kg
Max. Positioning Speed (X-Y)30 m/min
Total Power Consumption

(without Plasma System)

4 kw
