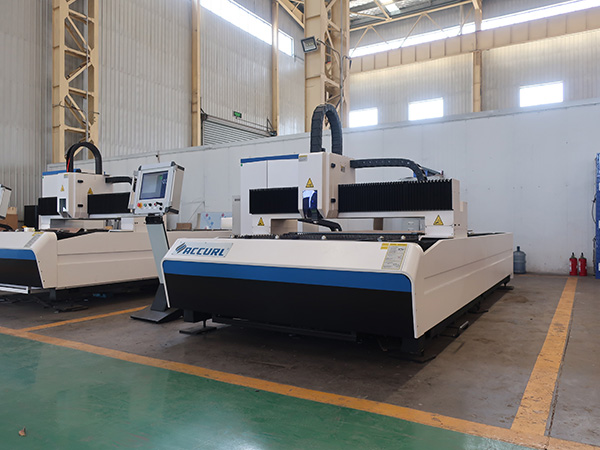

ipg rofin raycus 300w 500w 750w 1000w 1500w 2000w fiber laser cutting machine

Product Description

---

fiber laser cutting machine integrates optical, mechanical and electrical in one,which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed,high accurate,high efficiently cutting. Its products have smooth edge,small kerf width and little heat effect.Cut the shape of Circle, Triangle, Octagonal etc. on metal sheet or round/square/rectangular tube. The machine working area can be made as customer requirements and now the laser power can be installed 300w 500w 1Kw,2Kw(That will be decided by the customer processing material thickness)I think there must be one model suitable your requirements.

Characteristics/Advantage of our fiber laser cutting machine:

---

1.Stability and reliability of light path system and control system

2.Focused laser beam ensure that slim cutting kerf is only 0.15-0.2mm wide for perfect cutting effect.

3.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

4.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and

excellent cutting edge with little thermal deformation,smooth and aesthetic appearance

5.German high performance reducer,gear and rack;Taiwan Hi-win guide and ball screw.

Almost maintenance-free because without reflector,there is no need to adjust optical path

6. Specially used for cutting 0.5-12mm carbon steel,0.5-6mm stainless steel,galvanized steel,electrolytic zinc-coated steel sheet,silicon steel and other kinds of thin metal sheets.

Technical parameter

---

Machine Model	3000*1500mm or 1300*2500mm
Laser power	300W/500W/750W/1000W/2000W
Fiber laser Generator type	IPG/Raycus/Rofen
Laser wavelength	1064nm
Laser Beam quality	<0.373mrad
Working Table	Sawtooth
Fiber Laser cutting head	USA Lasermech
Focus lens	USA Lasermech
Working life of fiber module	More than 100000 hours
Motors&Drivers	Japan panasonic servo motor
Guide Rails	Taiwan Hi-win square guide
Transmit system	Taiwan Hi-win ball screw
Water Chiller	TEYU( S&A) or DOLUYO or HANLI brand
Control system	Professional laser control system--Cypcut
Position type	Red Dot
Cutting thickness	≤8mm(stainless steel) ≤14mm(carbon steel)
Max. Idle Running Speed	1400mm/s
Cutting Speed	300mm/s
Position Accuracy	±0.05mm/m
Position Speed	20m/min
Min. Line Width	±0.02mm
Power Consumption	≤12KW
Voltage	380V/50HZ or 380V/60HZ,3PH
Auxiliary Gas for cutting	Oxygen, Nitrogen, Air
Compatible software	Autocad, Coreldraw, etc
Graphic format	Nc
Working method	PC control
Total power protection rating	IP54

Application

---

Dowell fiber laser cutting machine application industry :

Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery,

engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator

manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil

machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration

advertising, laser surface treatment of foreign processing services, such as all kinds of machinery

processing industry.

Dowell fiber laser cutting machine's Application Materials:

Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet

cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic

plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

Our Services

---

1.Two years warranty fot the whole machine except comsumable parts like protection lens

2.Tech video and detailed manual sent with the machine

3.24hours online support

4.Professional technical support

5.Free design and guide for customer

6.Free software update

7.Other service that customer require

FAQ

---

1. What’s the function of fiber laser cutting machine

Fiber laser is only used to process on metal like Stainless Steel,Carbon/Mild Steel,Galvanized Steel etc.No-metal is not ok.

2. How much thinkness shall we cut?

Cutting thickness is related to laser power

300w:2mm stainless steel,3mm carbon steel

500w:3mm stainless steel,6mm carbon steel

1000w:6mm stainless steel,14mm carbon steel

Attention only 1kw and the above could process on Aluminum,Copper,Brass and other high reflection sheet metal

3. What’s the brand of laser source?

Under 1KW:Raycs made in China or IPG made in Germany

Above 1KW:Rofin or Ipg made in Germany

4. What’s the guarantee,in case the machine breaks down?

The whole machine has 2 years guarantee.

If it breaks down,generally speaking our technician will figure out what the problem is according to clients feedback.

Parts except consumable will be replaced for free if the machines are caused by quality fault

5. What’s the trade term?

FOB/CNF/CIF any one is ok.

6. What’s the payment term?

30% as deposit,70% balance before shipping by Ali insurance or T/T is prefer.

7. How about the documents after shipping?

After shipment,we will send telex release documents by email or send all orginal documents by DHL,documents include:Packing list,invoice,B/L and other certificates as requirements by clients

8. How about the training?

If customer need,our factory can arrange engineer to train on client factory
