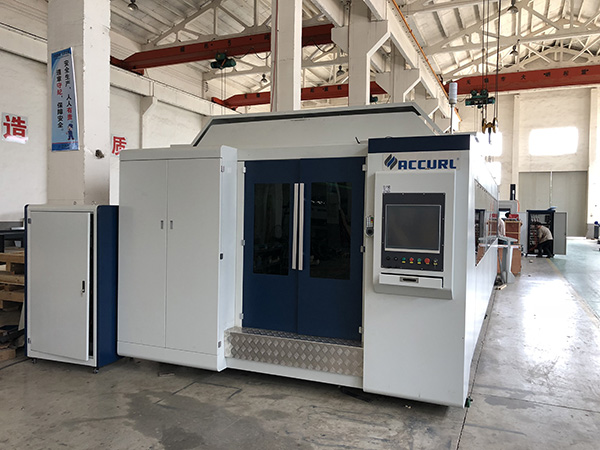

large power 1000w~4000w fiber laser cutting machine for smooth metal sheet cutting

Product Application

FC-4020Q is fully protective industry fiber laser cutting machine adopts au3tech laser cutting head and Chengdu Leetro control system, combined with the company's own R & D gantry type CNC machine structure, whole machine bed high strength welding, machine frame quenching by 600 degrees temperature to ensure that no deformation, racks and aluminum dual-platform table, the whole machine weight is 1.5 tons, gantry with overall casting, precision machining, good rigidity and stability. Rack and guide rails adopts high precision level, also equipped with dust system, lubrication system and tow feeding device system. This type machine is with high precision, high speed.

Application:
Metal sheet processing, metal products, hardware products, precision machinery, auto parts, glasses, jewelry, nameplates, electronics, toys, advertising and other industries.

Main Features

1. High light conversion rate, above 30%, much higher than CO2 and YAG

2. Energy saving, no auxiliary air is needed, save cost as well as electricity

3. Maintenance free, no optical adjustment needed before starting.

4. Wavelength is only 1/10 of Co2 laser, but with high watt density, very suitable on cutting metal.

5. Fiber optical cable transfer, stable and simple

6. Protective lens in the cutting head, can protect focus lens

How to make a accurl?

● Everything is starting at making a sturdy machine bed. Using 12mm thickness steel slab, Fanch workers cutting it according to the designed size and seamless welding the structure.

● But that is not good enough to make the sturdy bed. The whole structure quenching at 600℃ is necessary to reduce the mutua repulsion between different steel structure parts.

● In order to get the light but firm gantry, Fanch apply one piece casting aluminum. Seamless make the gantry more stable during fast moving.

● ±0.05 mm deviation straightness of machine bed surface can be got by our Germany imported milling machine. This is the root base of working accuracy and long life service.

● Top brand spare parts further make sure the accuracy, stability and long life span of a Fanch machine.

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Depends
Cutting Area: 4000*2000mm
Cutting Speed: 120000mm/min max
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software:Tajima embroidery software, CORELDRAW, PHOTOSHOP, AUTOCAD etc.
Graphic Format Supported: AI, BMP, DST, DXF, PLT
Certification: CCC, CE, ISO
After-sales Service Provided: Engineers available to service machinery overseas
Working area: 4000*2000mm
X/Y Positioning Accuracy: ±0.02mm
Z Positioning Accuracy: ±0.008mm
X/Y Repeat Accuracy: ±0.015mm
Laser type: Fiber laser
Laser power: 500W-2000W
Max. Moving Speed: 120m/min
X/Y Max. Acceleration: 1.2 G
Cooling mode: Water-cooling
