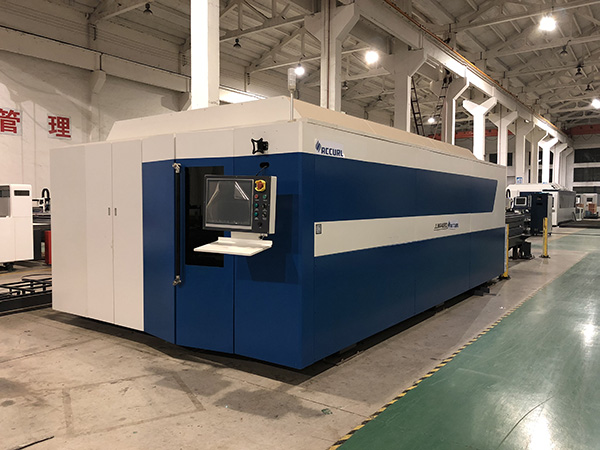

laser cutter 500w fiber machine cutting stainless steel metal

Product details

---

Laser power:	300W/500W / 750W / 1000W
Function:	Metal sheet cutting
Working size option:	1300mmx900mm
Option fiber laser brand:	IPG/Raycus/Max
Fiber laser head :	auto tracking system
Cutting materials:	S.S/ carbon steel/iron/aluminum/copper
Color:	blue and white
Warranty:	3 years

1.product introduction

KR1390F precision fiber laser cutting machine, adopt imported Japan AC servo motor drive system, machine movement using grinding screw drive, linear guide to ensure that the equipment of high speed, high precision, high reliability, widely used in glasses , Electronics, electrical appliances and other precision machinery hardware, microelectronics industry.

2.product features

1. Widely used in glasses, electronics, electrical appliances and other precision machinery hardware, microelectronics industry

2.600 ℃ high temperature heat treatment, 24 hours with the furnace cooling, 8 m gantry milling finishing, precision carbon dioxide protection welding, to ensure that 20 years of normal use without deformation

3. Guide installation and commissioning using precision collimator test, the accuracy of less than 0.01mm

4. Taiwan grinding screw drive.

5. High precision, fast speed, smooth cutting surface without burrs

6. Configuration Japan Yaskawa inertia servo system transmission accuracy is high

7. Fully enclosed shield protection

3.Technical Parameters

Working area: (length × width) 1300mm * 900mm

Laser power: 300W / 500W / 1000W (optional)

Dimensions: 2110 * 2160 * 1630

Cutting material thickness 0.1-10mm (depending on material)

Repeat positioning accuracy: ± 0.01mm / m

Maximum operating speed: 40m / min

Maximum acceleration: 0.5G

Machine weight: 1200kg

Machine running temperature: 0 ℃ -40 ℃

Transmission: Grinding precision scre

sses, electronic appliances and other precision metal, microelectronics

Samples

Suitable for materials and Applications

For carbon steel, stainless steel, galvanized sheet, alloy steel, silicon steel, spring steel, galvanized sheet, acid wash plate, copper, aluminum and other metal sheet metal cutting.

Application industry: metal cutting, electric switch manufacturing, elevator manufacturing, household electrical appliances manufacturing, kitchenware manufacturing, tool processing, and other mechanical manufacturing industries

Quick Details

---

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: depend on the materials kinds
Cutting Area: 1300mmx900mm
Cutting Speed: 20m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Au3tech /Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, SGS, UL
After-sales Service Provided: Engineers available to service machinery overseas
Laser power:: 300W/500W / 750W / 1000W
Function:: Metal sheet cutting
Working size option:: 1300mmx900mm
Option fiber laser brand:: IPG/Raycus/Max
Fiber laser head :: auto tracking system
Cutting materials:: S.S/ carbon steel/iron/aluminum/copper
Color:: blue and white
Warranty:: 3 years

---
