laser cutting steel application and metal applicable material laser gasket cutting machine

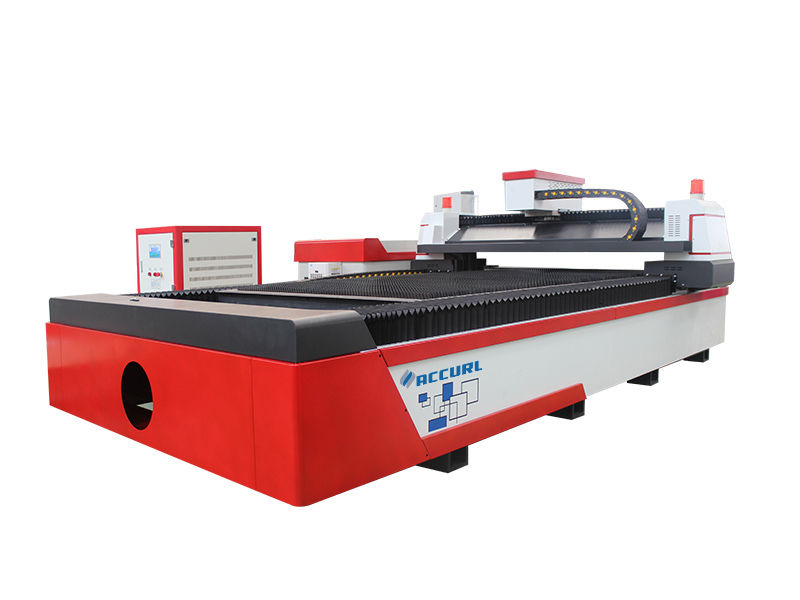

laser cutting machine applications

Prominent beam quality, excellent cutting speed, high stability and photoelectric conversion efficiency, low use and maintenance cost, convenient operation and maintenance, widely used in sheet metal rapid and accurate cutting.

Quick Details


Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: Max:20mm
Cutting Area: 1300*900mm
Cutting Speed: 35m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, SGS, FDA, BV,TUV
After-sales Service Provided: Engineers available to service machinery overseas
Product Name: Fiber laser metal cutting machine
Max. Cutting Speed: 35m/min
Max. Cutting Thickness MS: 20mm
Power: 1000W Option
Driving way: Imported Servo Motor
Pulse Frequency: 1-300Hz
Min.Line Width: 0.1mm
Electrical Source: 380V/50Hz/100A
Weight: 4000Kg
Warranty: 3 years

Features:


Smart fiber metal laser cutting machine

--High precision, high speeds
--a few thermal deformation
-- high price-performance ratio to use low one costs
-- First choice for the metal with a small area.

Main Features

1.Compact design,small footprint,conwenient place to save space,suitable for cutting small items.
2. High accuracy for high precision parts and letter cutting.
3. Fast speed: 100 times speed than wire cutting.
4. Small hot affecting area keeps flat and nice cutting line.
5. High performance to price ratio: the price is only 1/3 of that of CO2 laser cutter and 2/5 of that of CNC

Parameter


Working Area1300*900mmAccording to demands
Laser ModuleFiber Laser Module
Laser Power200-1000W
Driving MechanismBall Screw
Max.Cutting Speed35m/min
Positioning Accuracy≤±0.08mm/1000mm
Repeatability Accuracy≤±0.04mm
Min.Line Width0.1mm
Cooling ModeWater Cooling Chiller

Application:


Advertising board, sheet metal structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc.
