low cost steel/ stainless steel cnc plasma metal cutting machine/cnc metal plasma cutting

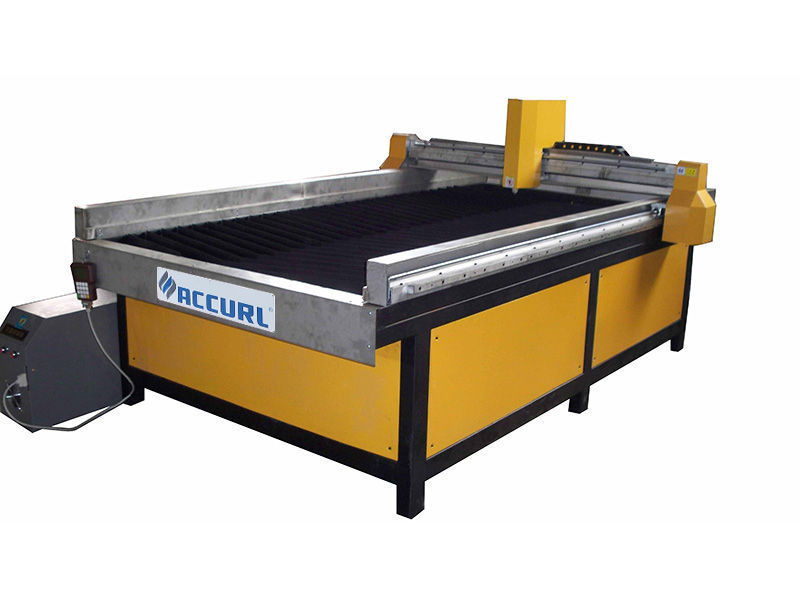

low cost cnc plasma cutting machine

Advantages:

1. Plasma machine uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2. Plasma machine,the gantry structure, ,X,Y,Z axis all use straight rail that make the machine driving smoothly with high-precision.

3. Plasma machine aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4. Plasma machine is equipped with other advertise equipment (blister machine,engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.

5. Cutting mouth of plasma cutting machine is small, tidy,and avoid a second dressing processing.

6. Plasma machine can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates ,metal plates and so on.

7. Plasma machine is high cutting speed, high precision, and low cost

8. The numerical control system disposes high, the automatic striking arc, the performance is stable.

9. Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U-disk exchange processing document, easy to operate.

Paremeters:

Condition: New
Voltage: 220V/380V
Rated Power: 8.5KW
Dimension(L*W*H): 1500*3000mm
Weight: 900KG
Certification: CE
Warranty: 1 year
Working Area: 1300mm*2500mm/51in*98in
Process thickness: 0.3-10mm
Power frequency: 50HZ
Plasma current: 60A
File transfer method: USB connection
Work mode: Untouched arc striking
Type: DC/AC Inverters

Working Area	1300mm2500mm100mm
Traverse Speed	≥17000mm/min
Current of inverter	0-200A (optional according to the material thickness)
Design Software	CNCCUT(multilingual software from Germany)
Voltage	AC380V50HZ-60HZ
Plasma power supply	Hyperthem Plasma power made in USA 65A-125A
Whole Machine Size	1800mm3200mm1500mm
Net Weight	1100KG
Others	Models with any processing areas can be customized.
Machine Power	8.5kw
Motors	servo
Software	Starcam
Cutting thickness	0-30mm

Stainless steel, carbon steel and other metal materials precise cutting, suitable for aerospace technology,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
