metal fiber 500w 1000watt 3kw laser cutting machine for stainless steel aluminum

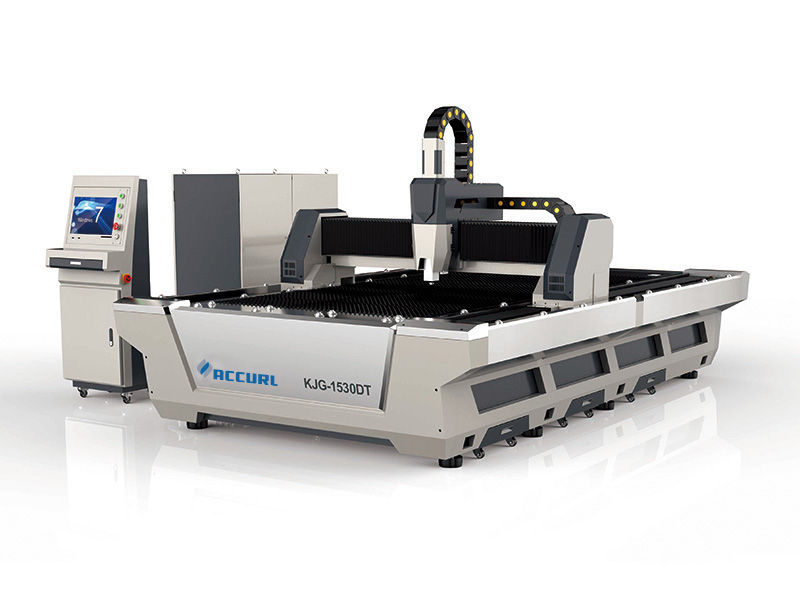

china laser cutting machine

Characteristics of our 1000watt laser machine

1.Stability and reliability of light path system and control system

2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

3.Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge

4.German high performance reducer,gear and rack;Japanese guide and ball screw.

Applicable Industry and materials of fiber laser cutting machine

fiber laser cutting machine application:

metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.

Our fiber laser cutting machine's Application Materials:

Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

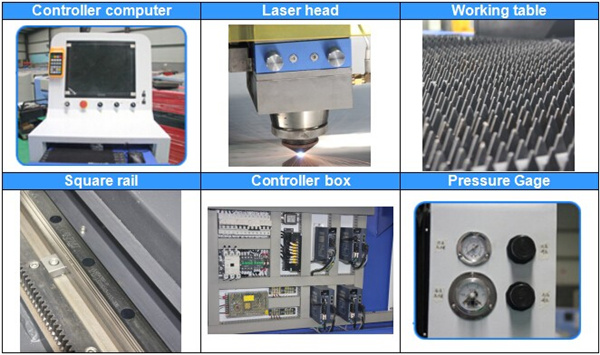

Main machine pictures of 1kw laser cutting machine

china laser cutting machine 2

Quick Details

Application: Laser Cutting
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-20mm
Cutting Area: 1300*2500mm
Cutting Speed: 25m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: bechoff ( Cypcut )
Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Certification: CE, ISO, SGS
After-sales Service Provided: Engineers available to service machinery overseas
Model: 1000 watt laser
Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
Fiber laser Generator type: Famous brand Raycus ( Made in China )
Fiber Laser cutting head: Lasermech ( From U.S. )
Motors & Drivers: 1500W Fuji servo motor made in Japan
Min. Line Width: ±0.02mm
Working life of fiber module: More than 100000 hours
Warranty time: Whole machine for 3 years (fib

Parameter of our Fiber Laser cutting Machine

Machine Model	2500*1300mm
Laser power	300W/500W/1000W/3000W
Fiber laser Generator type	Famous brand Raycus ( Made in China )
Laser wavelength	1064nm
Laser Beam quality	<0.373mrad
Working Table	Sawtooth
Fiber Laser cutting head	Lasermech ( From U.S. )
Focus lens	Lasermech made in USA
Working life of fiber module	More than 100000 hours
Motors&Drivers	1500W Fuji servo motor made in Japan
Reducer	3 sets from Germany
Guide Rails	High accuracy PMI brand from Taiwan
Transmit system	Dual Rack & Pinion type
Rack system	Germany rack
Chain system	Igus made in Germany
Water Chiller	TEYU( S&A) brand, CW6000
Control system	Professional laser control system--Cypcut
Position type	Red Dot
Cutting thickness	≤3mm(stainless steel) ≤6mm(carbon steel)
Max. Idle Running Speed	1400mm/s
Cutting Speed	300mm/s
Position Accuracy	±0.05mm/m
Position Speed	20m/min
Min. Line Width	±0.02mm
Power Consumption	≤12KW
Carry weight	700KG
Voltage	380V/50HZ,3PH
Auxiliary Gas for cutting	Oxygen, Nitrogen, Air
Compatible software	Autocad, Coreldraw, etc
Graphic format	Nc
Working method	PC control
Total power protection rating	IP54
Machine weight	About 4000KG
Machine size	480026001800mm
Warranty time	Whole machine for 3 years (fiber module 2 years )

Quality control of 1000watt laser

Quality is our sincerest respect offered to all our customers, and it is the most important factor to maintain long-term business relationships with us.

We always pay more attention to the quality of laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter.

In the mechanical assemble process, the laser interferometer, laser collimator, dial indicator and marble plate are used; In the laser assemble process, the laser power meter and optical microscope are adopted.
