metal plate 4kw fiber laser cutting machine with working table 2000x6000mm

Fiber Laser Cutting Machine13-13

Detailed Product Description

Laser Power:	IPG (Germany)/4KW Fiber Laser	Laser Source:	America / Russia IPG Fiber Laser Resonator
Servo Motor And Driver:	DELTA (Taiwan)	Ball Screw Rod:	HIWIN (Taiwan)
Liner Guide:	HIWIN (Taiwan)	Gear Rack:	YYC (Taiwan)
Laser Head:	PRECITEC (Germany)	Chiller:	TONG FEI (China)
Controller:	BECKHOFF (Germany)	Keywords:	4kw Fiber Laser Cutting Machine

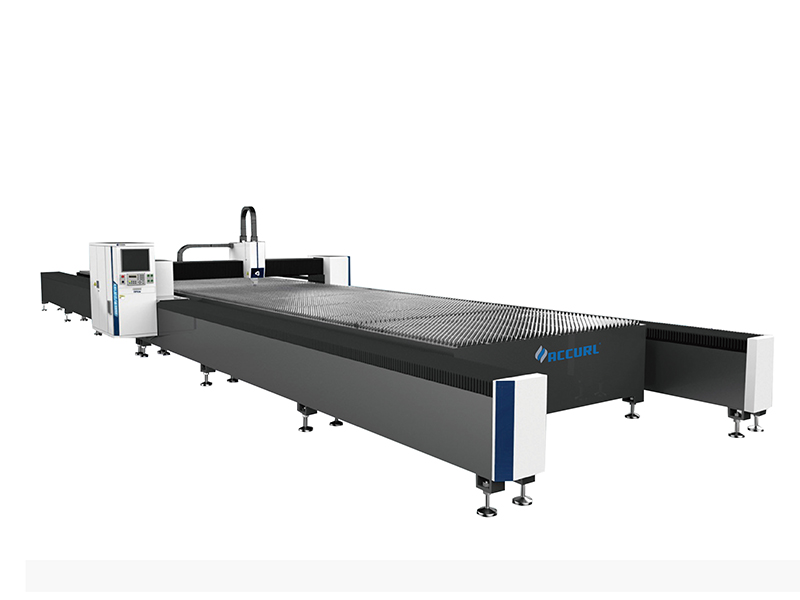

4Kw Fiber Laser Cutting Machine with Working Table 2000x6000mm for Metal plate

ACCURL IPG 4KW Fiber Laser Cutting Machine outshine with its fast cutting and energy efficiency abilities when especially its compared to CO2 Easy use, maintenance and service has been achieved by the high technology of Fiber Lasers. Globally recognized efficient components used in ACCURL 4Kw Fiber Lasers add value to your company.

New Generation 4Kw Fiber Laser Technology:

1.With auto focus , thin and thick sheets can be cut at the best quality.
2.Single part welded body, capable of handling very high acceleration.
3.Low operational cost and energy consumption.
4.Excellent results for all types of materials.
5.World recognized high quality components.
7.Modern and compact design.
8.Efficient and user-friendly structure.

Standard Equipments for 4Kw Fiber Laser Cutting Machine :

1. Germany BECKHOFF CNC Controller
2. IPG YLS-4000W Ytterbium Laser Resonator
3. Advanced PRECITEC cutting head (with air cross blast)
4. Automatic Double Pallet Changer(Shuttle Table)
5. Precision Rack & Pinion Drive System (Made in Germany)
6. Radan or Lantek CAD/CAM system
9. Light source
10. Chiller
11. 3 lower protective lenses
12. 3 Ceramic Nozzle Adapters
13. Auto-calibrated nozzle system
14. Smart Slag Collection System/ Chip Conveyor
15. Fiber Beam Transmission System (Fiber Cable)
16. Operates with both N2 and O2 (cutting) gases
17. Home Position Alignment System
18. Auxiliary Gas Selector
19. Auto Reflection Warning
20. Working Lights
21. 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Optional Equipments for 4Kw Fiber Laser Cutting Machine:
1. Automatic beam centering system.
2. Linear motor technology
3. Laser Safety Barrier
4. Precitec cutting head
5. Automatic sheet metal loading and unloading system.
6. Compressor
7. 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW Laser power options available.

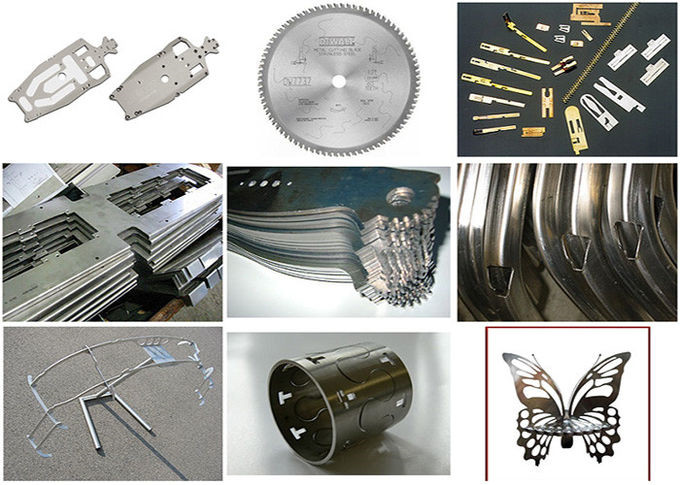

Cutting finished product 4Kw Fiber Laser Cutting Machine

Specification for 4Kw Fiber Laser Cutting Machines

Laser power	4KW IPG Fiber Laser Cutting Machine
Laser source	Germany IPG fiber laser resonator
Processing surface (L × W)	3000mm x 1500mm
CNC control	BECKHOFF (Germany)
Laser head	Switzerland Raytools
Power supply	AC380V±5% 50/60Hz (3 phase)
Total electric power	34KW
Position accuracy X, Y and Z axle	+0.02mm
Repeat position accuracy X, Y and Z axle	+0.01mm
Maximum position speed of X and Y axle	150m/min
Acceleration	2.5G
Max load of working table	1500kg
Drawing programming mode	AI, DWG, PLT, DXF format import directly
Machine weight	11500Kgs
* Note: As products are constantly updated, please contact us for latest specifications.

Cutting Thickness Limit for 4Kw Fiber Laser Cutting Machines

Material	Cutting Thickness Limit
Carbon steel	25mm
Stainless steel	12mm
Aluminum	10mm
Brass	6mm
Copper	6mm

Main Parts for 4Kw Fiber Laser Cutting Machine

Article Name	Remark
Fiber laser resonator	IPG (Germany)/4KW
Servo motor and driver	DELTA (Taiwan)
Ball screw rod	HIWIN (Taiwan)
Liner guide	HIWIN (Taiwan)
Gear rack	YYC (Taiwan)
Laser head	PRECITEC (Germany)
Chiller	TONG FEI (China)
Controller	BECKHOFF (Germany)
Gas Proportional valve	SMC (Japan)
Reduction gear box	APEX (Taiwan)
