Metal sheet and tube fiber laser cutting machine used in agricultural equipment

laser cutting machine for tubes

Product Description

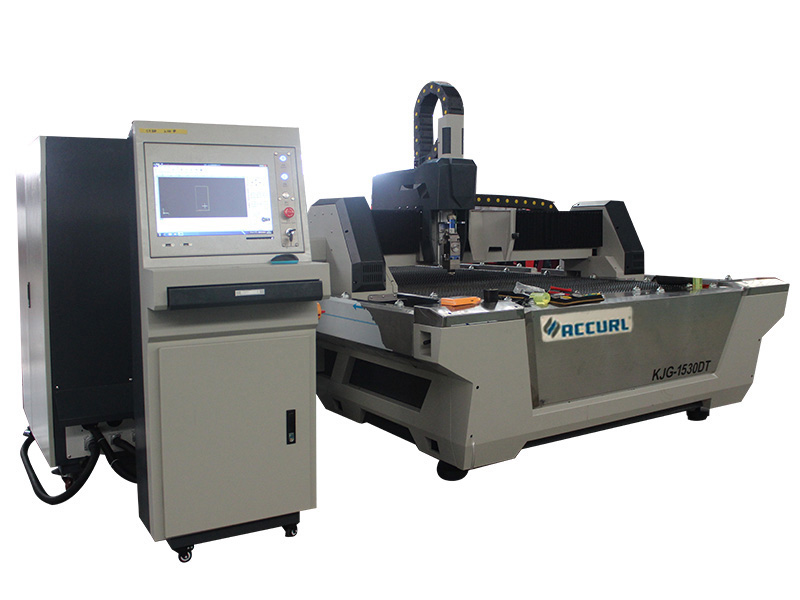

Good quality Metal Sheet and Tube Fiber Laser Cutting Machine Used in Agricultural Equipment

Product Features

Imported high precision ball screw/ rack and pinion transmission, high precision linear guide rail.
Imported servo motor driving system , imported helical gearbox.
Separate cutting tube device.
Fast cutting speed, high efficiency,safe, stable performance.
Good quality Metal Sheet and Tube Fiber Laser Cutting Machine Used in Agricultural Equipment

Technical Data

Laser Power500W-8000W(Optional)
Working Area3000*1500mm
Total Power Consumption10Kw<60Kw
Transmission ModeGear and Rack Double drive
Voltage and Frequency380V 50Hz(60Hz)
Dimension4800*3260*1750mm

Applicable Materials
Mainly applied to all kinds of sheet metal materials with non-contact fast cutting,hollowing and punching. Such as mild steel, stainless steel, alloy steel, manganese steel,galvanized, aluminum, copper and metal pipe processing, etc.

Applicable Industry
Widely used in all kinds of metal products industries such as sheet metal processing, kitchen ware and bathroom ,advertising & signs, lighting & hardware,electrical cabinets, auto parts,machinery and equipment, household appliance,elevator and precision parts processing ,etc.

Basic Info
Laser Technology: Laser Control Fault Cutting
Automation: Automatic
Type for Cutting Machine: Laser Cutting Machine
Type: Metal Laser Cutting Machine
Laser Type: Fiber Laser
Cutting Acurancy: 0.01mm
Condition: New
Certification: GS, Ce, ISO9001, SGS
Standard: GB
Customized: Non-Customized
Material: Metal
Trademark: ACCURL
Transport Package: Seaworthy Plywood Case
Specification: CE SGS FDA ISO
Origin: Anhui,China
HS Code: 8456100090

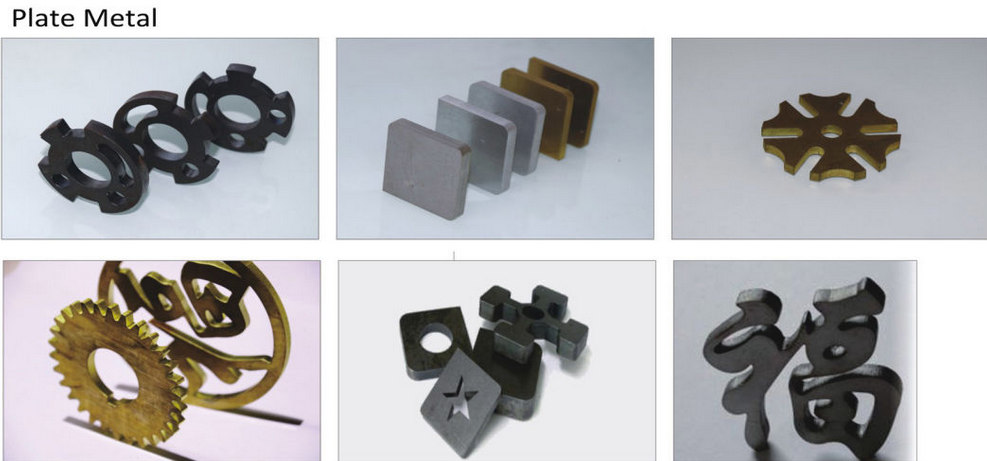

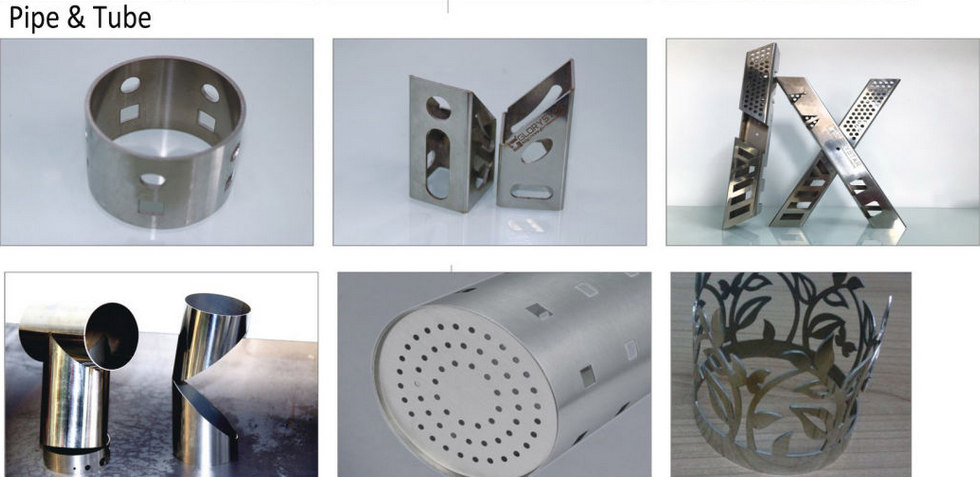

Sample Show

   1000W fiber laser cutting machine cutting parameters
MaterialCutting thickness
(mm)		Cutting speed(m/min)Cutting gasCutting pressureNozzleCollimator / FocusRemarks
Carbon steel0.530-40Air61.5 single layer75/125Please adjust accord to actual focal position by cutting head, all parameters for reference
0.820-25Air81.5 single layer75/125
118-22Air102.0 single layer75/125
25-6.5Oxygen3.51.2 double layer75/125
33-3.5Oxygen0.5-11.2 double layer75/125
42-2.3Oxygen0.51.2 double layer75/125
51.5-1.8Oxygen0.51.2 double layer75/125
61.2-1.4Oxygen0.51.5 double layer75/125
80.9-1.2Oxygen0.52.0 double layer75/125
100.7-0.8Oxygen0.52.5 double layer75/125
120.5-0.65Oxygen0.52.5 double layer75/125
Stainless steel0.530-40Nitrogen71.5 single layer75/125
0.822-25Nitrogen101.5 single layer75/125
120-23Nitrogen121.5 single layer75/125
26-7Nitrogen152.0 single layer75/125
32.5-2.8Nitrogen182.0 single layer75/125
40.8-1.2Nitrogen182.0 single layer75/125
50.6-0.8Nitrogen182.0 single layer75/125
Aluminum0.520-25Air / Nitrogen81.5 single layer75/125
0.815-18Air / Nitrogen91.5 single layer75/125
110-12Air / Nitrogen121.5 single layer75/125
23-3.5Air / Nitrogen182.0 single layer75/125
31-1.5Air / Nitrogen182.0 single layer75/125
Brass0.522-30Nitrogen121.5 single layer75/125
0.813-17Nitrogen121.5 single layer75/125
110-12Nitrogen151.5 single layer75/125
22-3Nitrogen182.0 single layer75/125
31-1.3Nitrogen182.0 single layer75/125
Copper0.515-18Oxygen121.5 single layer75/125
0.88-12Oxygen121.5 single layer75/125
15-7Oxygen121.5 single layer75/125
20.8-1.2Oxygen152.0 single layer75/125
