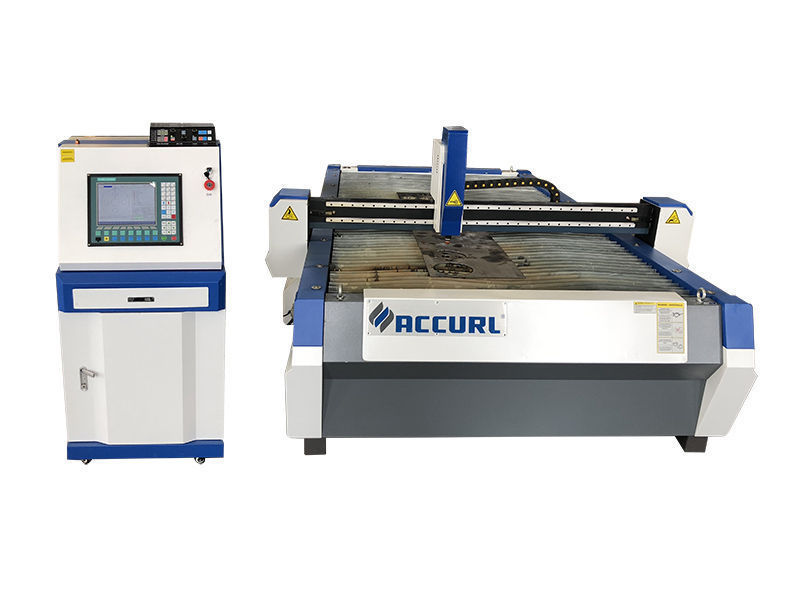

metal stainless iron cutting cnc plasma cutting machine for sale

Features:

---

1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.

2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.

3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U. S. Treasure plasma power can achieve lower laser cutting machine.

4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.

5. Cutting speed, high accuracy and low cost.

6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.

7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.

8. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.

Application materials:

---

For iron, aluminum, galvanized sheet, white sheet, titanium plate and other metal plates

Technical

---

Processing Area: 1300*2500mm
Processing Materials: Iron, Aluminum, Gal
Processing Thickness: 0.5-15mm
Cutting Speed: 0-8000mm/Min
Input Voltage: 3-Phase 380 V
Power Frequency: 50 Hz
Plasma Current: 60 or 100 a
File Transfer Mode: USB Interface
Work: Non-Contact Arc
Arc: Untouched Arc Striking Arc Pressure Adjuster
Transport Package: Wood Box
Specification: CE
Origin: China
HS Code: 84589120

Technical Parameters
Working Area	1300*2500mm(51.2*98.4 inch)
Working precision	0.07mm
Cutting Thickness	0.5-15mm
Cutting Speed	0-8m/min
Moving Speed	0-50m/min
Working current	60A (Hua Yuan)
Cutting accuracy	2mm
Power	8.5KW-10.5KW
Command Code	G Code (*.nc, *.mmg, *.u00, etc.), *.eng
Input Voltage	3 phase 380V
Power Frequency	50Hz
Files Transfer	USB Interface
Arc	Untouched Arc Striking Arc Pressure Adjuster
